Deployers & Separation Systems — Space Hardware Marketplace

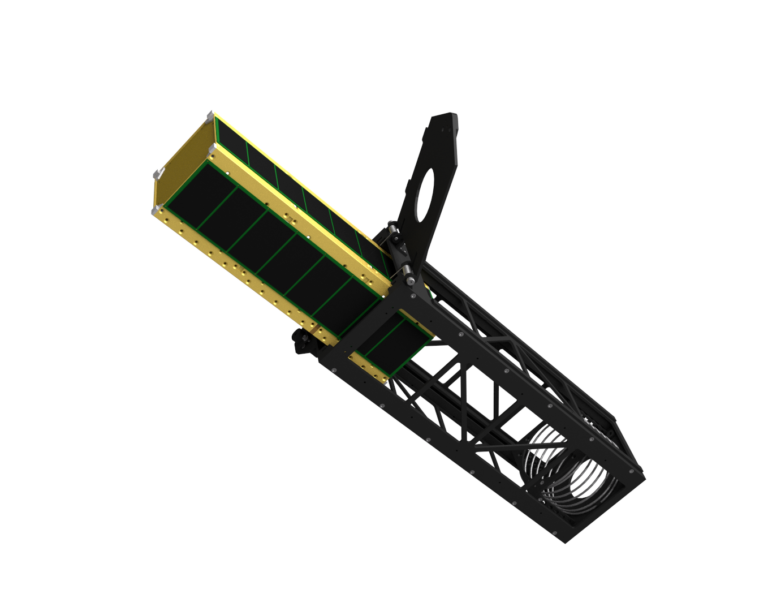

GPOD CubeSat Deployer

Flexible 1U-3U+ CubeSat deployment mechanism with accessible side panels and non-explosive Frangibolt actuation, flight-proven on Dnepr launches.

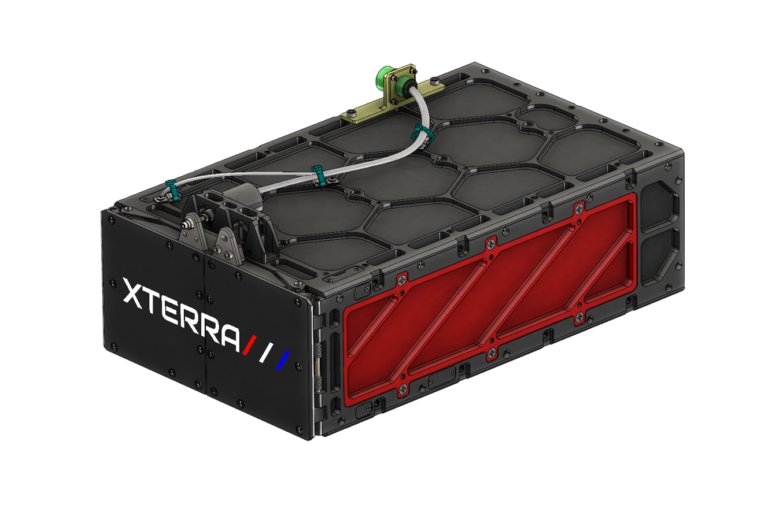

XCD-12U/16U Hybrid

User-convertible large-format CubeSat dispenser supporting 8U, 12U or 16U satellites (227-454mm length) in a single system, with the…

XCD-3U/6U Hybrid

User-convertible CubeSat dispenser that switches between 1U, 2U, 3U or 6UXL compatibility in a single patented system, or…

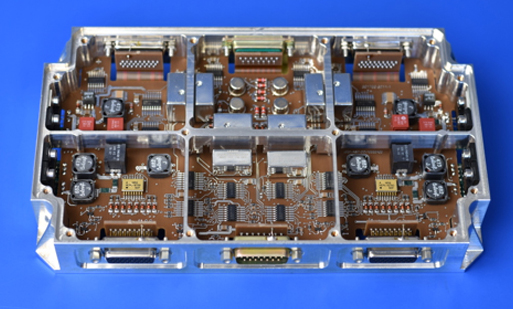

SpaceTech Pyro Drive Module (Actuator Drive Unit)

• Bus interfaceSatellite primary power, 28V nominal
• Command interfaceOBC command & control; NEA fire control including safe-and-arming functions
• ImplementationFully realized in hardware without soft- or firmware

Single-point-failure-free actuator drive electronics for triggering thermal knife and non-explosive actuator (NEA) release devices.

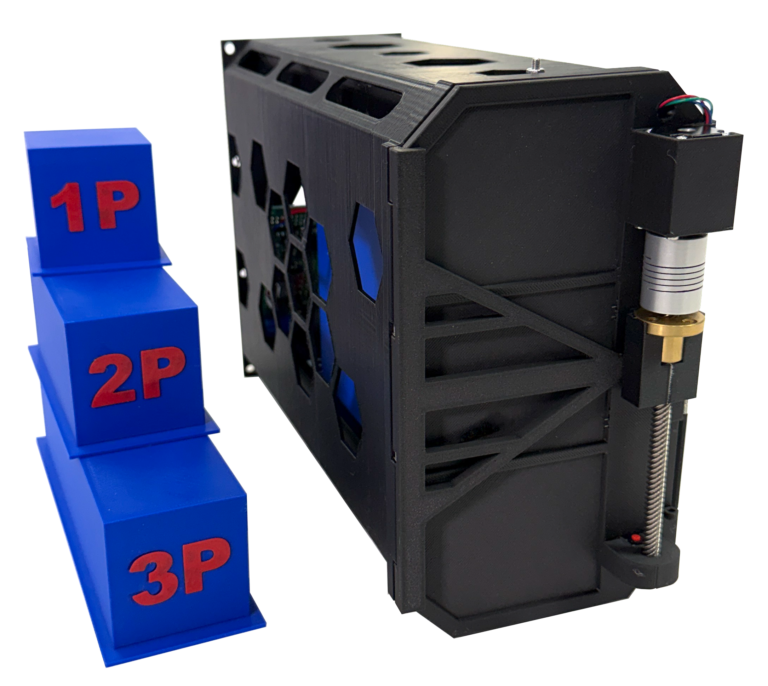

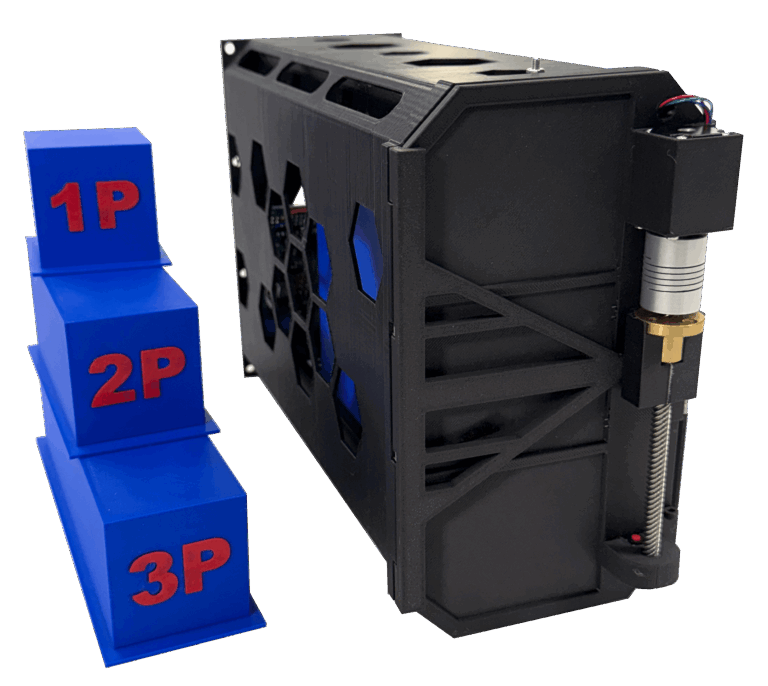

Hyperion PocketQube Deployer

• Supported configurations1P through 6P PocketQube

Next-generation PocketQube deployment system supporting 1P through 6P missions.

Hyperion PocketQube Deployer

• Compatible formats1P through 6P PocketQube
• ApplicationsTechnology demonstration, scientific payloads, commercial constellations, educational missions
• InterfacesStandardized PocketQube interfaces

Flight-ready PocketQube deployment system supporting 1P–6P missions for launch providers and satellite developers seeking affordable orbit access.

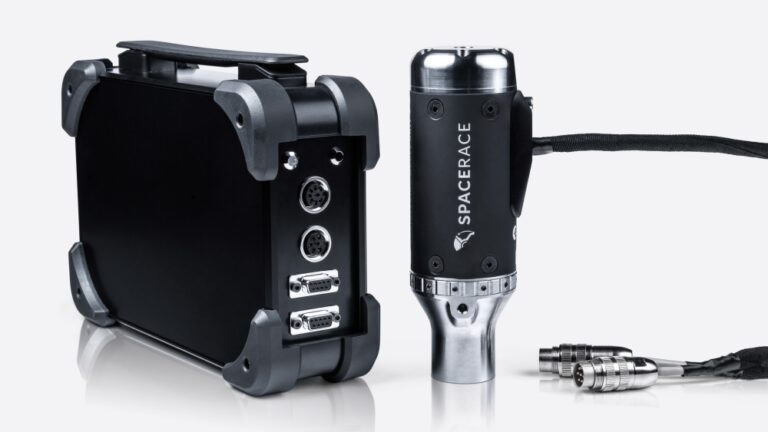

UNIKA HDRM Preload Device

• Mechanical interfaceUser customized mating head
• Release bolt threadUser customized up to M10
• Generated preloadUp to 50 kN @ max 3 mm travel

Compact, electronically-controlled 50 kN preload/tensioning device for Hold Down and Release Mechanisms, cleanroom-safe.

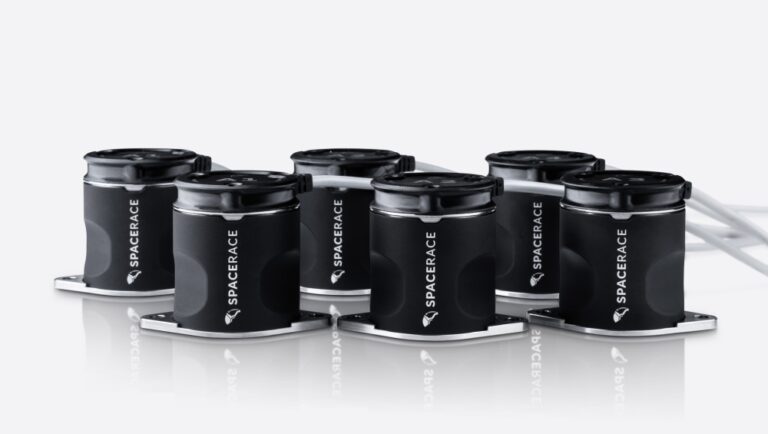

ATLAS22 Ground Test Release Actuator

• Mechanical interfaceUser customizable (to match NEA, Glenair, Eaton, Arquimea)
• Release bolt threadUser customizable up to M8
• Max. release preload22 kN

Rapidly resettable, non-explosive hold-down and release actuator for ground testing and qualification of space mechanisms.

FANTM-RAiL Deployer

Lightweight, flight-proven smallsat deployer with railed and tabbed interfaces for payloads up to 60 kg.

FANTM-RiDE Dispenser

• InterfaceStatic mechanical, electrical and dynamic-response launch interface
• ContainerizationHouses FANTM-RAiL deployers or compatible payload containers
• ReconfigurationRideshare Rapid Reconfiguration (R3) — hot-swap payloads without altering coupled loads dynamics

Rideshare dispenser platform enabling responsive launch integration with hot-swappable payloads and deployers.

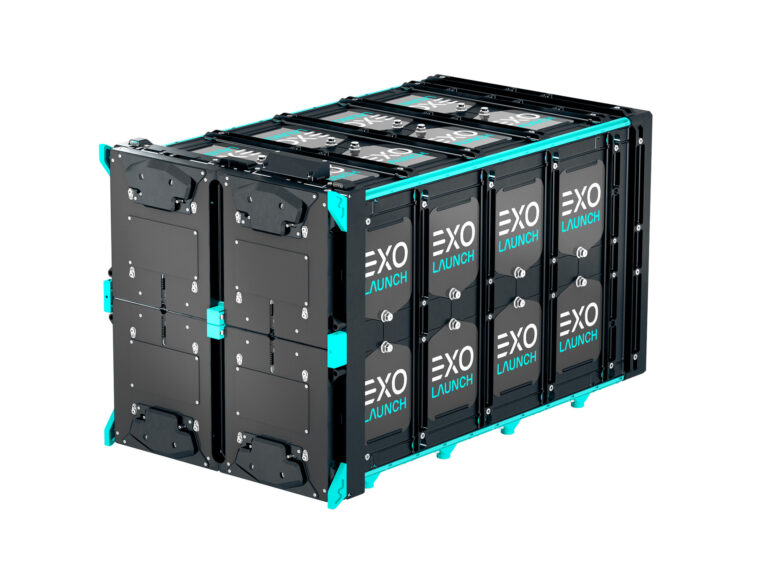

EXOpod Nova

• Available sizes6U, 8U, 12U, 16U (subdividable)
• Cubesat compatibility0.25U to 16U
• Flight heritage31 missions flown, 382 cubesats deployed since 2017 (EXOpod family)

Exolaunch's flagship cubesat deployer family, offering the most advanced cubesat deployment system on the market with flight-proven heritage…

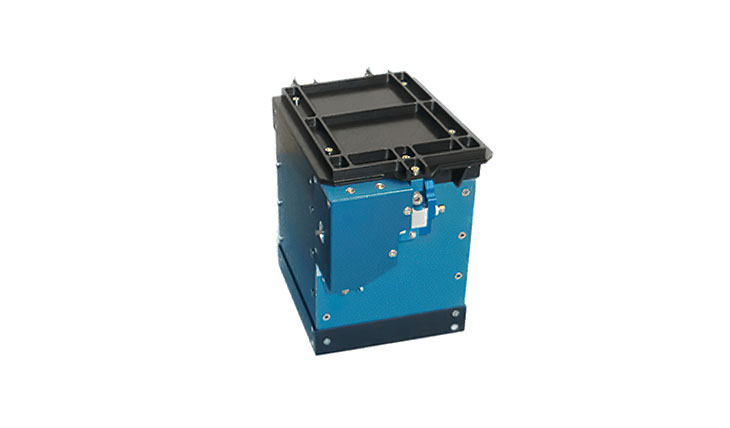

ISIPOD

• Supported CubeSat sizes1U, 2U, 3U (and combinations)
• 1-Unit ISIPOD deployer mass1.5 kg
• 1-Unit ISIPOD maximum payload mass2 kg

The ISIPOD is ISISPACE's spring-loaded CubeSat deployer, one of the world's most-flown CubeSat launch adapters, available in 1U,…

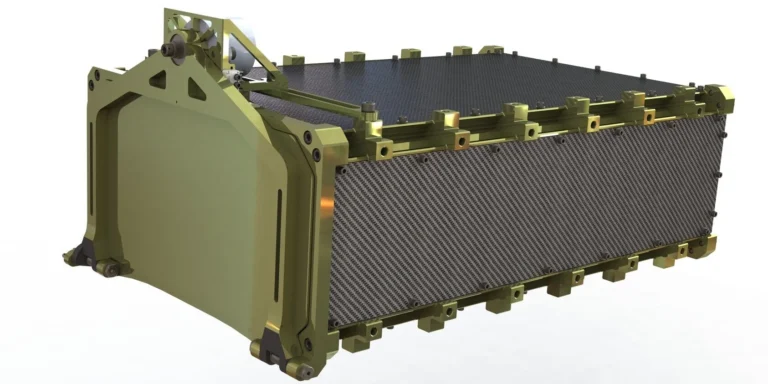

Mercury Series CubeSat Dispensers

• Mercury-33U lightweight dispenser, rail-type CubeSats, qualified to NASA GEVS levels, flight-proven
• Mercury-66U lightweight dispenser, rail-type CubeSats, qualified to NASA GEVS levels, flight-proven
• Mercury-6T6U tab-based dispenser, tab-type CubeSats, over 50% reduction in gRMS environment transmission, flight-proven

Maverick Space Systems' flagship hardware line: a family of lightweight, flight-proven CubeSat dispensers (Mercury-3, -6, -6T, -12, -12T,…

SlingShot

• Deployment capacityUp to 72U of CubeSats per Cygnus mission
• Maximum single payload size12U CubeSat
• Compatible CubeSat formats1U, 2U, 3U Rail, 6U Rail, 6U Tab, 12U Rail, 12U Tab

SlingShot is SEOPS' flagship CubeSat/small-satellite deployer that rides on Northrop Grumman's Cygnus spacecraft, deploying payloads at an altitude…

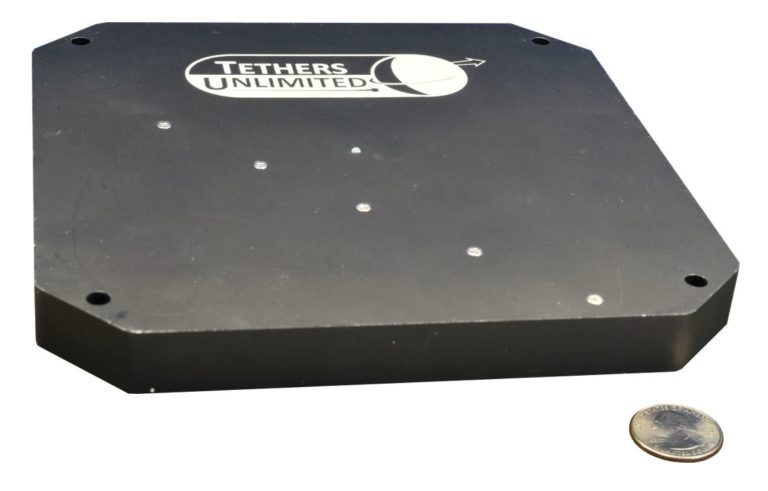

Terminator Tape Deorbit Module

• DeploymentPassive; commanded release or optional battery-powered timer module
• MechanismDeploys a long, thin conductive tape to increase atmospheric/electrodynamic drag
• Sizes availableCubeSat, NanoSat, and Small MicroSat configurations

Compact, lightweight passive deorbit module that deploys a long conductive tape to increase drag and hasten orbital decay,…

MR-FOD Deployer

• TypePocketQube deployer
• Manufacturing method3D printed
• Launch partner platformItalian GAUSS Team UniSat micro-satellite

3D-printed PocketQube deployer, the standard launcher for PocketQubes on the Italian GAUSS Team UniSat micro-satellite.

Tu-POD Deployer

• TypePicoSat / PocketQube sub-deployer
• Host interfaceFits inside a standard P-POD

First-generation Teton deployer fitting inside a standard P-POD to launch PicoSats and PocketQubes.

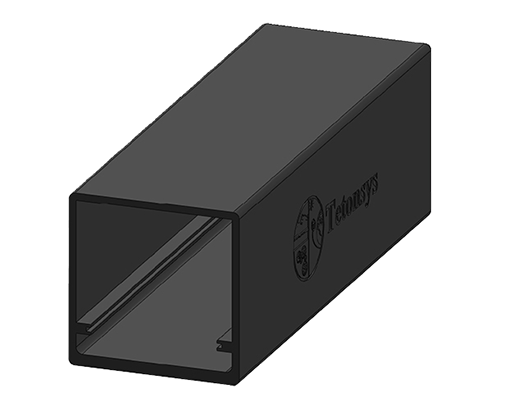

Teton CubeSat Deployer

• TypeCubeSat deployer
• Design featureNo corner-capturing / square-section requirement, allowing flexible solar panel mounting

Next-generation CubeSat deployer offering greater flexibility for solar panel placement.
