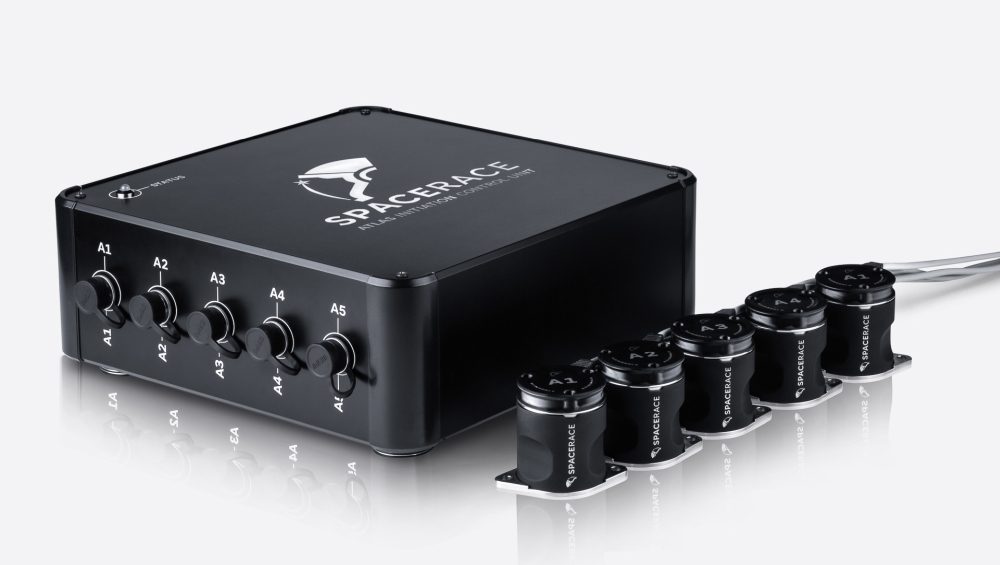

ATLAS ICU (Initiation Control Unit)
PC-controlled current-pulse generator and control electronics for synchronized initiation of release actuators in ground testing.
Description
The ATLAS ICU is a control electronics unit for easy, synchronized initiation of hold-down and release actuators during ground test campaigns of space mechanisms. Configuration of release scenarios takes seconds via intuitive PC software, ensuring synchronized activation of up to 5 actuators (10 independent power lines) via current pulse with millisecond precision. Compatible with any fuse-based non-explosive release actuator, fully enclosed and cleanroom-friendly, with safety features including activation from internal memory and a tripled safety barrier. The package includes the unit, a control laptop, and a dedicated transport box.
Specifications
| Actuation steps | Activation, arming, fire |
|---|---|
| Power source | 50 A / 12 V / 600 W |

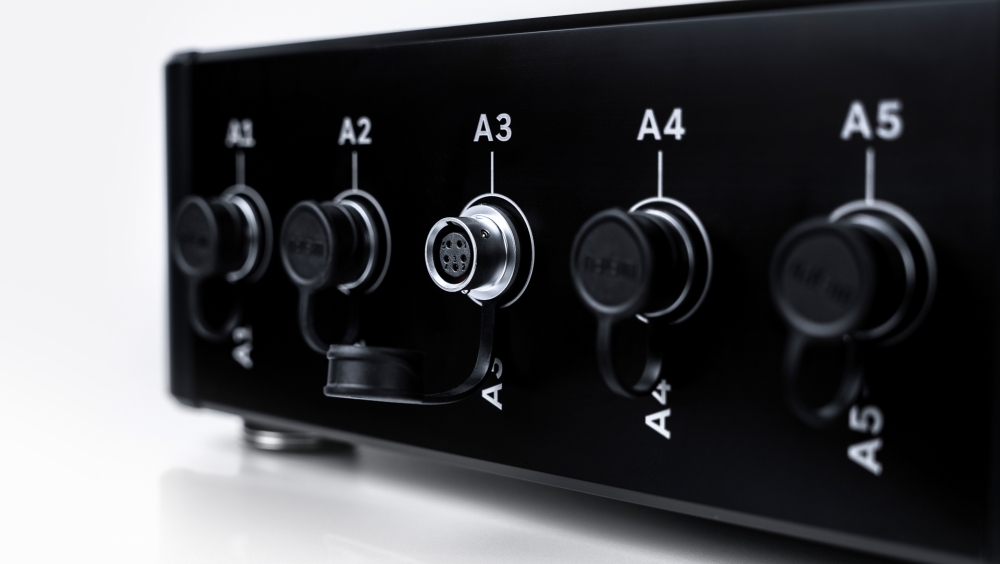

| Number of actuators | Up to 5 actuators (10 power lines) |
| Arming current | 0.125 A |
| Status monitoring | LED and software |
| Pulse accuracy | < 10 ms |
| Cleanliness | Closed design, cleanroom compatible |
| Actuation safety | Triple security, activation from internal memory |
| Data interface | USB, connected to Windows PC |
| Temperature range | 0 C to 40 C |
| Dimensions | 250 x 270 x 100 mm |
| Mass | 2.9 kg without cables |
| Power supply | 230 VAC |
