Lightweight, flight-proven smallsat deployer with railed and tabbed interfaces for payloads up to 60 kg.
FANTM-RAiL Deployer
Lightweight, flight-proven smallsat deployer with railed and tabbed interfaces for payloads up to 60 kg.
Description
FANTM-RAiL is Xtenti's smallsat deployer line, designed as a lightweight, minimalist system for launching and deploying payloads either within a larger FANTM-RiDE Dispenser or stand-alone on a flat launch interface. It offers railed and tabbed interfaces in various sizes that follow industry standards, supporting payloads up to 60 kg, and is tailorable to customer needs with a static launch interface to simplify integration. The design allows non-standard payload dimensions, greater protrusion allowables, and adjustable ejection velocities for mission-specific requirements. Optional FANTM-CAGE enclosures and shields are available to protect payloads during processing and launch. FANTM-RAiL is flight proven, with a 100% successful in-space deployment record across a diverse range of smallsat sizes, and each variant/upgrade is qualified to rigorous industry standards. Xtenti provides hands-on integration support, having integrated satellites on complex multi-manifest, pathfinding first-launch missions.
Specifications
| Payload capacity | Up to 60 kg |
|---|---|
| Interface | Railed and tabbed interfaces, multiple industry-standard sizes |

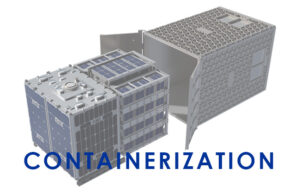

| Compatibility | Stand-alone on flat launch interface, or containerized inside FANTM-RiDE Dispenser |

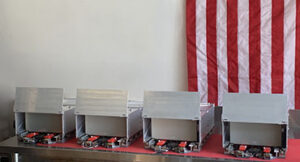

| Optional accessories | FANTM-CAGE enclosures and shields for payload protection during processing and launch |
| Flight heritage | 100% successful in-space deployment record across multiple missions |
| TRL | 9 (flight-proven) |
