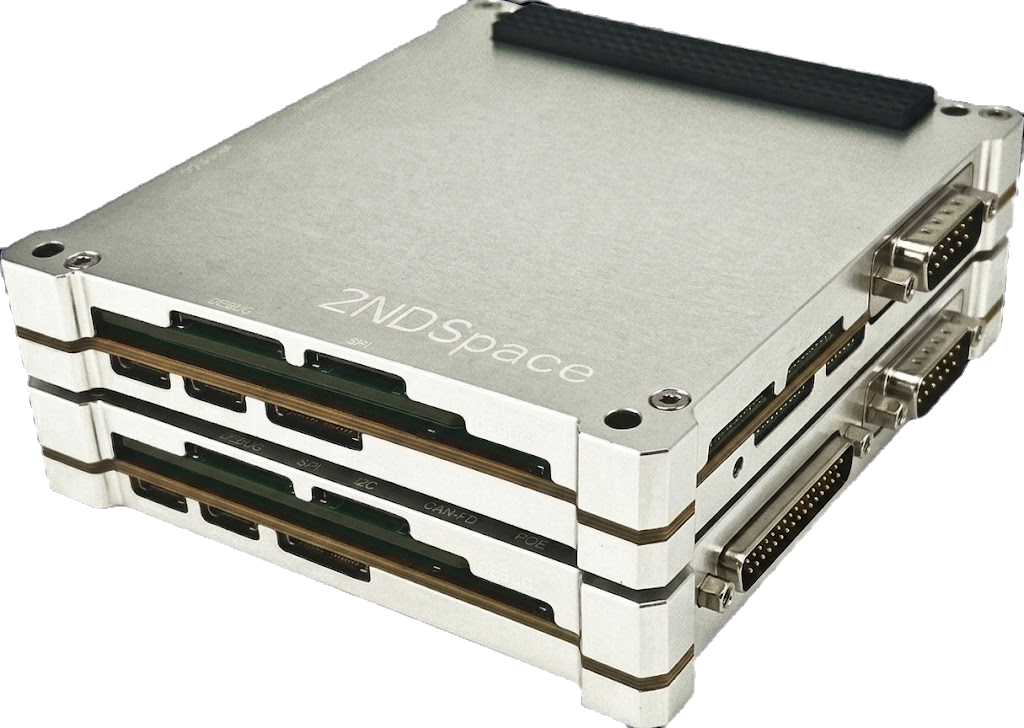

MASTER II Next Generation Satellite OBC
2NDSpace Srl
Next-generation modular OBC with dual-section hardware redundancy, PolarFire SoC, FPGA guardian supervision and on-demand edge AI.
Technical specifications
- Architecture
- Modular, separated control and computing layers
- Redundancy
- Dual-section (A/B), active/standby or dual-active modes
- Failover
- Hardware-driven, deterministic, no software boot required
- Supervision
- Always-on Guardian FPGA: health monitoring, watchdog, reset, power-cycling
- Processor
- PolarFire SoC with integrated FPGA fabric
- AI acceleration
- On-demand Coral Edge TPU
- RS-422/RS-485 interfaces
- 6x configurable
- CAN Bus
- 2x
- GPIO
- 10x FPGA-configurable
- SpaceWire
- Up to 4x SpaceWire or SpaceWire + LVDS
- Ethernet
- 2x Gigabit Ethernet, high-speed SERDES option
- Expansion
- Modular BRIDGE board for SpaceFibre / 10GbE
About
MASTER II is 2NDSpace’s next-generation on-board computing platform for small satellites. Built on an advanced architecture that separates the control layer from the computing layer, it brings an approach typically found in complex, high-criticality space systems into the nanosatellite domain. The result is a compact, integrable, and mission-ready platform designed for enhanced resilience, greater controllability, and superior energy efficiency. MASTER II is designed for missions that demand more than conventional command and data handling: its architecture combines deterministic hardware-level supervision with high-performance on-board processing, while enabling high-consumption resources only when needed. This makes it an ideal platform for next-generation missions with software-defined payloads, deep platform integration, and greater in-orbit autonomy. Key features include dual-section (A/B) redundancy for system-level resilience, hardware-driven failover with deterministic switching independent of software boot, an always-on Guardian FPGA managing health monitoring, watchdogs, resets and controlled power cycling, separated control and computing authority, a high-performance PolarFire SoC for mission logic and payload control, on-demand Coral Edge TPU AI acceleration, and a modular interface architecture with low-speed interfaces on the main board and high-speed connectivity via add-on modules (including a BRIDGE board for SpaceFibre/10GbE expansion). MASTER II can directly support payload functions, reducing latency and limiting raw data downlink, making it an enabler for resilient, software-defined, and increasingly autonomous small satellite missions.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
