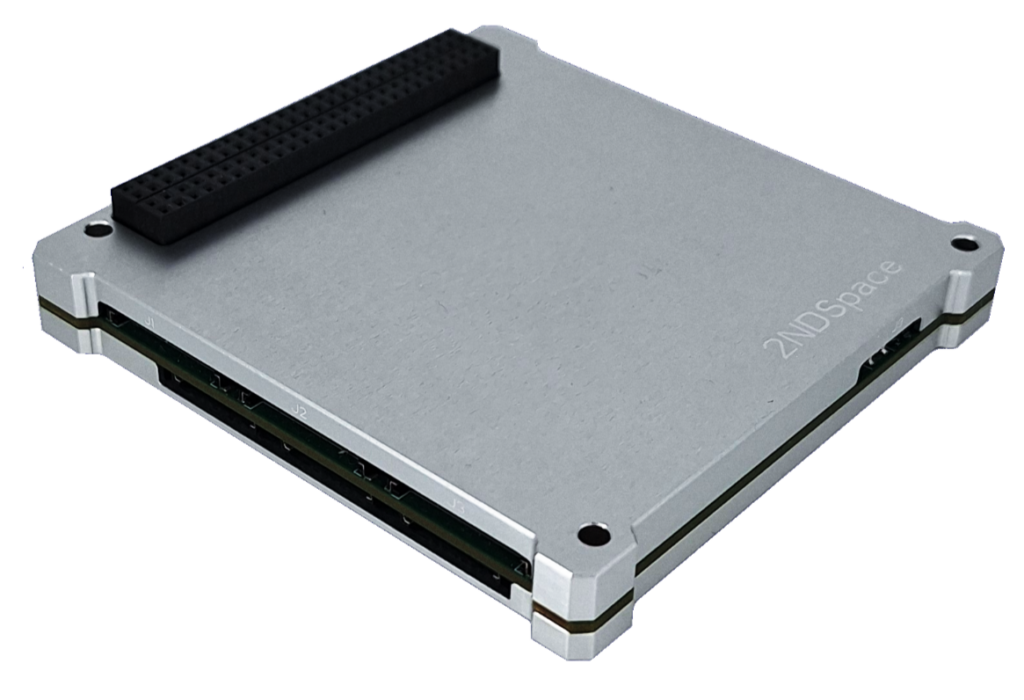

MASTER Cubesat On-Board Computer
2NDSpace Srl
Dual-core CubeSat OBC with Cortex M7/M4 processors, OTA updates, FreeRTOS compatibility and rich I/O.
Technical specifications
- Processor
- Dual core: Cortex M7 480MHz + Cortex M4 240MHz
- Software
- OTA update, FreeRTOS-compatible architecture
- Communication interfaces
- 13x: CAN, RS422, RS485, UART, USART, I2C, SPI
- GPIO
- 8x
- ADC inputs
- 6x
- Storage
- 2x SD storage memory
- RAM
- 64 Mb Synchronous DRAM
- Flash memory
- 32-Mbit SPI Serial Flash
- IMU
- 6-axis
- Sensors
- Temperature sensor
About

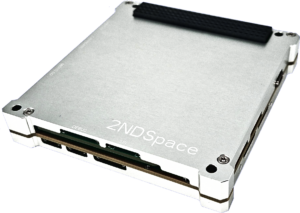

MASTER is 2NDSpace’s CubeSat On-Board Computer, built around a dual core processor for multi-operation handling: a Cortex M7 running at 480MHz paired with a Cortex M4 at 240MHz. It supports over-the-air (OTA) updates and is built on a FreeRTOS-compatible architecture. MASTER provides 13 communication interfaces including CAN, RS422, RS485, UART, USART, I2C and SPI, along with 8 GPIO and 6 ADC inputs. Onboard storage includes 2x SD storage memory slots, 64 Mb synchronous DRAM and 32-Mbit SPI serial flash memory. The board also integrates a 6-axis IMU and a temperature sensor, making it a compact and complete command-and-data-handling solution for CubeSat missions. A full datasheet (rev 3.0) is available for download.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
