Body-mounted CubeSat solar panels from 1U to 16U using UTJ 30%-efficiency space-grade cells.
CORE Body-Mounted Solar Panels
Body-mounted CubeSat solar panels from 1U to 16U using UTJ 30%-efficiency space-grade cells.
Description

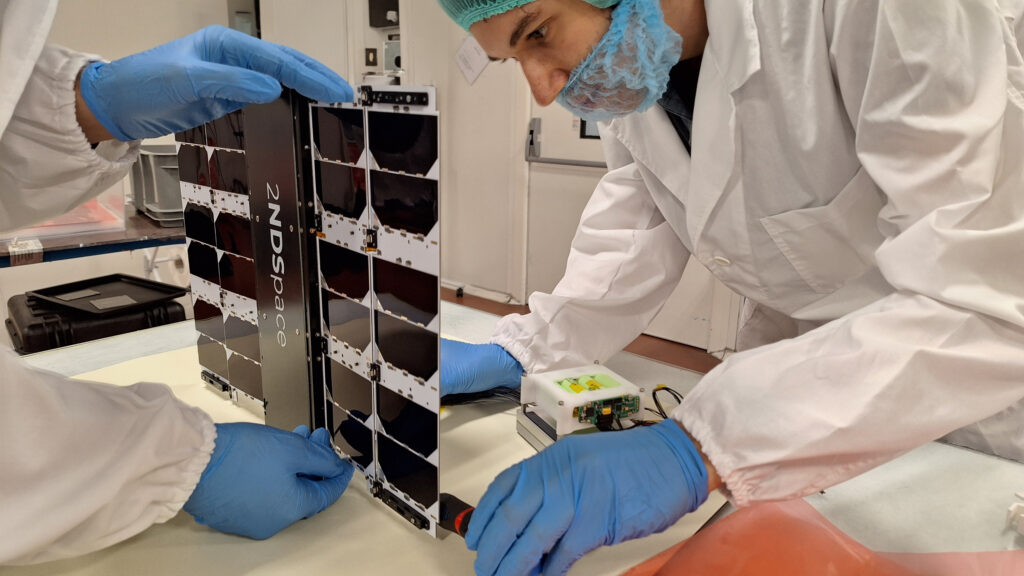

2NDSpace CORE CubeSat solar panels deliver reliable power, modular design, and flight-proven performance for CubeSat and nanosatellite platforms from 1U to 16U. Panels use UTJ 30% efficiency space-grade solar cells, and feature customizable cut-out and panel form factor, custom interface and umbilical connections, ZERO-residual dipole design, stabilized thermal dissipation architecture, and RBF plus embedded magnetorquer options. The CORE-01 (1U lateral variant) delivers 2.45W peak power with dual OC voltage option of 5.2V, dual-redundant protection, modular form factors, multiple voltage options, and add-ons such as magnetorquers, umbilical & RBF, custom sensors, and CubeSpace sensor interface compatibility. The family includes CORE-01/01Z (1U), CORE-02 (2U), CORE-03 (3U), CORE-08/04 (8U), CORE-12/12Z (12U), CORE-16 (16U), CORE-06Z, plus custom smallsat panels above 16U.
Specifications
| Peak Power (CORE-01) | 2.45 W |
|---|---|
| OC Voltage options | 5.2 V |
| Suggested for | 1U |
| Side | Lateral |
| Form Factor | 1U Lateral XY |
| Mass | 38 g |
| Solar cell type | UTJ 30% efficiency space-grade |
| Protection | Dual redundant |
