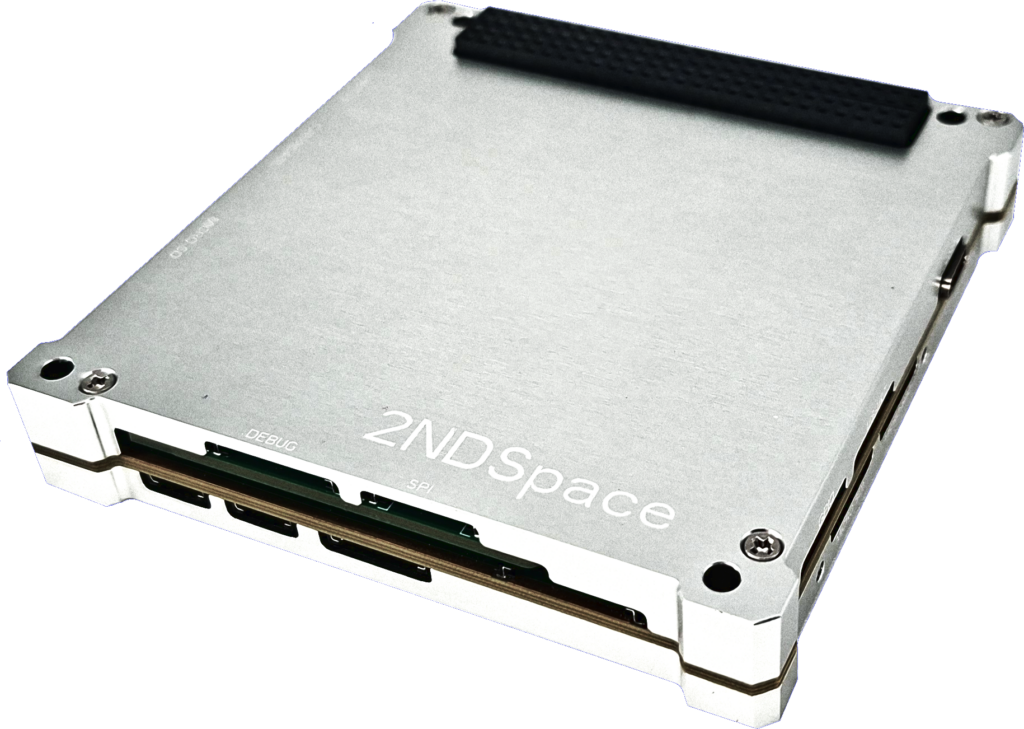

MASTER-CHIEF Extended On-Board Computer
2NDSpace Srl
Extended CubeSat OBC adding an independent critical-data-management core with ECC RAM to the MASTER architecture.
Technical specifications
- Processor
- Dual core: Cortex M7 480MHz + Cortex M4 240MHz
- Critical data core
- Independent Cortex M7 400MHz
- Critical data RAM
- 1MB with ECC
- Critical data program memory
- 2MB
- Software
- OTA update, FreeRTOS-compatible architecture
- Communication interfaces
- 13x: CAN, RS422, RS485, UART, USART, I2C, SPI
- High-speed interface
- LVDS, >10Mbps
- GPIO
- 8x
- ADC inputs
- 6x
- Storage
- 3x SD storage memory
- RAM
- 64 Mb Synchronous DRAM
- Flash memory
- 32-Mbit SPI Serial Flash
- IMU
- 6-axis
About
MASTER-CHIEF is 2NDSpace’s extended On-Board Computer, building on the MASTER architecture with a dual core processor for multi-operation handling (Cortex M7 480MHz + Cortex M4 240MHz) plus an additional independent core processor dedicated to critical data management: a Cortex M7 running at 400MHz with 1MB RAM featuring ECC (error-correcting code) and 2MB program memory. It supports OTA (over-the-air) updates and a FreeRTOS-compatible architecture, with 13 communication interfaces (CAN, RS422, RS485, UART, USART, I2C, SPI) plus a high-speed LVDS interface exceeding 10Mbps. MASTER-CHIEF provides 8 GPIO and 6 ADC inputs, 3x SD storage memory, 64 Mb synchronous DRAM, 32-Mbit SPI serial flash memory and a 6-axis IMU, offering enhanced resilience for missions requiring independent, fault-tolerant critical data handling.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
