High-resolution multispectral imager for 6U CubeSats.

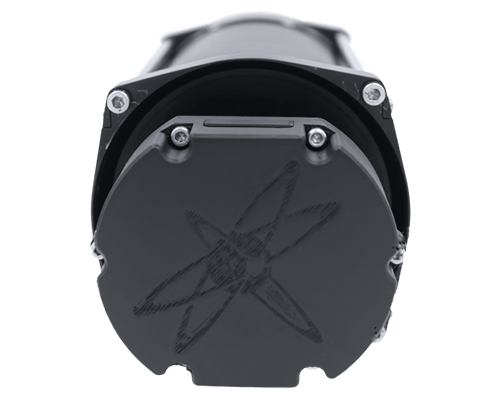

Caiman Imager
High-resolution multispectral imager for 6U CubeSats.
Description
The Caiman is a high-resolution multispectral imager for 6U CubeSats, uniquely delivering the maximum achievable resolution within this form factor. Its compact design and large, high-speed data storage combine to offer unmatched image detail for small satellite platforms. Available in RGB and multispectral (11x MS) configurations. TRL 9.
Specifications
| Spatial Resolution (GSD) at 500 km — RGB | 3.25 m |
|---|---|
| Spatial Resolution (GSD) at 500 km — MS | PAN 3.25 m; MS 6.5 m |
| Swath at 500 km | 13 km |
| Mass (incl. electronics) | 1.4 kg |
| Spectral Bands | RGB / 11x MS |
| Imager Type | Snap shot (RGB); Push broom (MS) |
| Physical Size | 3U (100 mm x 100 mm x 250 mm with rear-mounted nCCM) |
| Data Format | 8-bit to 12-bit |
| Integrated Mass Data Storage | 128 Gigabytes |
| Compression | RAW or J2K lossless or lossy |
| Data Interface | LVDS, SpaceWire |
| TMTC Interface | SPI, I2C, CAN, RS422/RS485 |
| Power Usage | Imaging mode <10 W, Readout mode <4 W |
| Power Supply | 5V DC |
| Operating Temperature | +10°C to +30°C |
| Survival Temperature | -20°C to +55°C |
| TRL | 9 |
