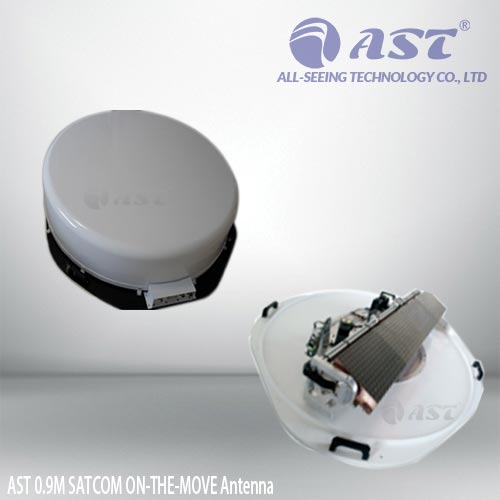

0.9 Meter Satcom On-The-Move Antenna (V900)
Flat-array roof-mounted Ku-band SOTM antenna system providing continuous satcom connectivity to moving vehicles.
Description
The V Series is a waveguide-array-type satcom-on-the-move antenna system built as an integrated unit for mobile satellite communication. It combines fiber-optic gyro inertial navigation with beacon tracking to maintain lock during sharp turns and on bumpy roads, working with all Ku-band communication satellites so the equipped vehicle can continuously and accurately track a satellite during movement, enabling uninterrupted multimedia communication with a central station. The whole system integrates on the antenna turntable for a high-precision, low-profile, rugged, easy-to-install roof-mounted design. After the system starts, acquisition and tracking complete automatically without manual operation, whether the vehicle is moving or stationary; if signal is lost, re-acquisition takes only about 3 seconds, with a maximum transmission data rate of 4 Mbps. The outdoor antenna/turntable mounts on the vehicle roof while the antenna control unit (ACU) is a 1U 19-inch rack-mount unit installed in the vehicle cabin. Configuration includes the antenna/feed system, waveguide/connection cable/slip rings, azimuth-elevation turntable and servo drive, antenna control system, fiber-optic gyro inertial navigation system, and tracking receiver. Available in 0.6m, 0.8m and 0.9m sizes.
Specifications
| Diameter | 0.9 m |
|---|---|
| Operating Frequency (Receive) | 10.95-12.75 GHz (Ku Band) |
| Operating Frequency (Transmit) | 13.75-14.5 GHz (Ku Band) |
| Antenna type | Prime focus antenna |
| Sidelobe Pattern | First side lobe level <= -14 dB |
| Gain (Receive) | 38.5 + 20lg(f/12.5GHz) dBi |
| Gain (Transmit) | 39.5 + 20lg(f/14.25GHz) dBi |
| Polarization | Linear |
| Antenna G/T | 16.3 dB/K |
| Cross polarization | >= 35 dB |
| Uplink EIRP | 55.5 dB (with ext. 40W BUC) |
| Electrical Interfaces | N (Rx) / WR75 (Tx) |
| Power supply | DC 48V, AC 110-220V 50/60Hz (Optional) |
| Continuous power consumption | 650 W (antenna) + 10 W (IDU) |
| Azimuth Travel Range | 360 deg continuous, automatically adjusted |
| Elevation Travel Range | 15-90 deg, automatically adjusted |
| Polarization Travel Range | +/-180 deg, automatically adjusted |
| Initial satellite acquisition | <60 sec, tuned on satellite beacon |
| Satellite re-acquisition | <10 sec (when loss/blockage is <20 min) |
| Azimuth tracking accuracy | 0.2 deg @ 60 deg/s, 200 deg/s^2 |
| Elevation tracking accuracy | 0.9 deg @ 45 deg/s, 200 deg/s^2 |
| Outdoor unit size | Diameter 135 x 75H cm |
| Outdoor unit weight | 98 kg (antenna only, excluding BUC) |
