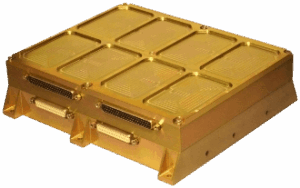

VPDHS Payload Data Handling System
VECTRONIC Aerospace GmbH
FPGA/microcontroller-based payload data handling system for camera and payload data compression, storage and formatting.
Technical specifications
- Dimensions
- 290 mm x 192 mm x 34 mm
- Mass
- 2.3 kg
- Mounting Pattern
- 6 x M4
- Power Consumption
- Max 15 W
- Power Supply
- 9V-18V, 18V-36V
- Signal Interface
- RS422 / RS485
- Signal Characteristics
- Serial asynchronous
- Connector Type
- MDM-25
- Operating Temperature Range
- -20°C to +70°C
- Storage Temperature Range
- -40°C to +80°C
- Vibration
- 13.4 g rms
- Radiation Tolerance
- >20 krad
- SDRAM Storage
- 4 GBytes
- Flash Storage
- 16 GBytes non-volatile
- Data Interface
- 30 LVDS I/O @ 480 Mbps; 24 SerDes inputs @ up to 2 Gbps; 1 LVDS output @ 105 Mbps
- Additional Input
- Pulse-per-second synchronization
About
The VPDHS (VECTRONIC Payload Data Handling System) receives incoming payload data, such as camera data, to store, compress and format it for downlink on small satellites. Built on an FPGA/microcontroller architecture, it processes high-speed camera imagery, manages onboard data storage, and transmits formatted payload information to ground stations, combining substantial storage capacity with real-time data compression.
