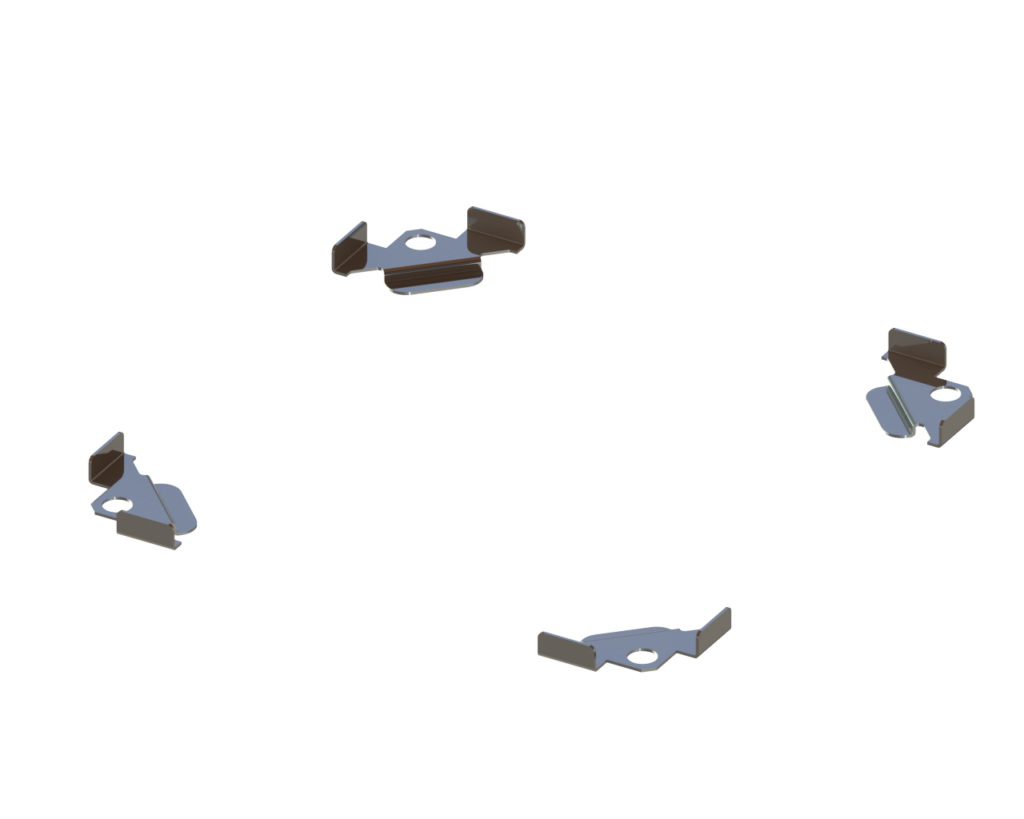

Solar Panel Clips Set (Set of 8 clips)
Pumpkin, Inc.
A set of 8 low-mass clips for mounting up to six solar panels to the faces of a Pumpkin CubeSat Kit structure without shims.
Technical specifications
- Set size
- 8 clips
- Thickness option 1
- 0.062"/1.6mm
- Thickness option 2
- 0.031"/0.8mm
- Compatibility
- Pumpkin CubeSat Kit solid-wall or skeletonized structures (Base Plate Assembly / Cover Plate Assembly)
About
The Solar Panel Clips Set is flight hardware from Pumpkin, Inc., described by Pumpkin as flight qualified and space proven. A set of 8 solar panel clips provides an extremely low-mass and low-volume means of attaching up to six solar panels to the six faces of a Pumpkin CubeSat Kit (CSK) solid-wall or skeletonized structure. Each clip replaces a shim that would otherwise sit underneath each foot of a Base Plate Assembly or Cover Plate Assembly, saving mass and simplifying panel installation.
Clips are available in two thickness options to match the customer’s solar panel substrate: 0.062″/1.6mm and 0.031″/0.8mm. The product is sold as a set of 8 clips, sufficient to secure panels across the CubeSat structure’s mounting feet. It is intended for use with Pumpkin’s CubeSat Kit line of structures and solar panels.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
