Protoboard Module Kit
Pumpkin, Inc.
A CubeSat Kit prototyping module providing a red multilayer PCB with an 0.100 inch grid of plated through-holes and dedicated power buses for wiring custom through-hole circuitry into the CubeSat Kit Bus.
Technical specifications
- SKU
- 711-00303
- Classification
- Prototyping Hardware
- Prototyping grid
- 0.100 in grid, approximately 500 plated through-holes
- Power buses provided
- +5V_SYS, VCC_SYS, GND
- Kit contents
- Red multilayer PCB; two 52-pin stackthrough connectors; four 15mm M3 M/F plated brass standoffs
- Bus interface
- CubeSat Kit Bus standard, 104-pin connector
About

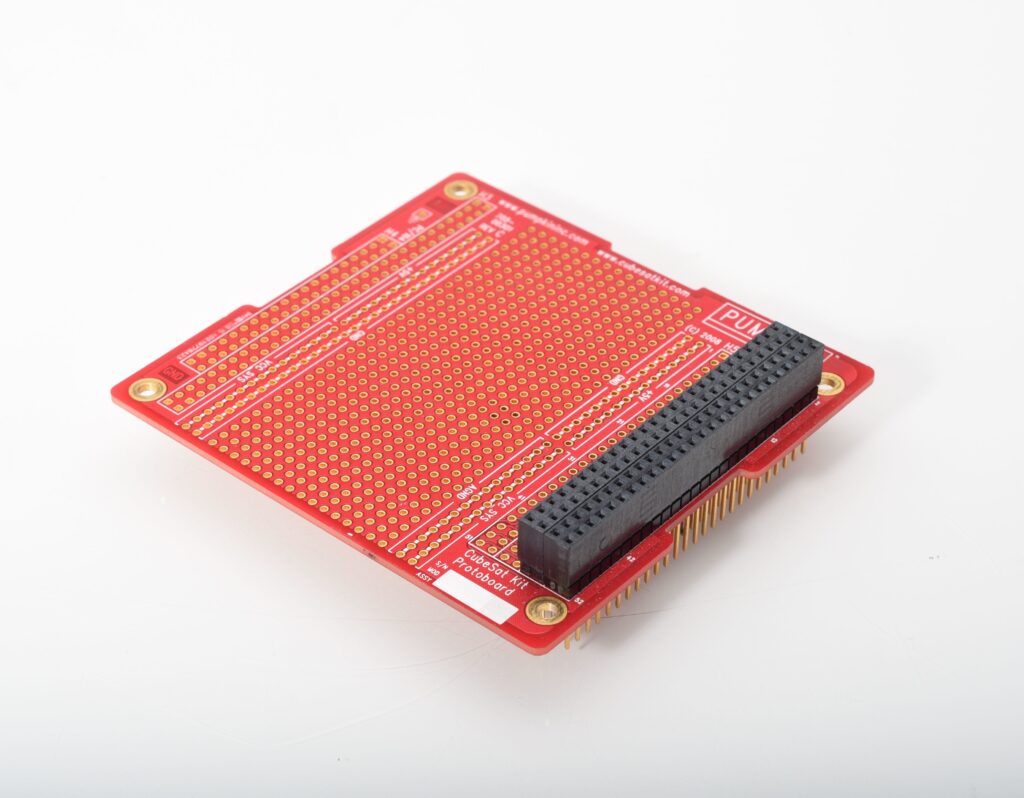

The Protoboard Module Kit provides an easy way to wire through-hole components into circuitry that connects to the CubeSat Kit Bus Connector. An 0.100 in grid with roughly 500 plated holes is provided for mounting and interconnecting through-hole components. Power buses on each side for +5V_SYS, VCC_SYS and GND are provided, categorized by Pumpkin as Prototyping Hardware.
The kit includes a red (for prototyping) multilayer PCB, two 52-pin stackthrough connectors, and four 15mm M3 M/F plated brass standoffs. The module is compatible with all CubeSats that conform to the CubeSat Kit Bus standard with its 104-pin connector.
