I/O LED Module
Pumpkin, Inc.
A CubeSat Kit development module that visually displays the status of all 48 bus I/O lines on LEDs for at-a-glance monitoring during integration and test.
Technical specifications
- SKU
- 710-00521
- Classification
- Development Hardware
- I/O signals monitored
- 48 (IO.[47..0])
- Signal buffering
- Every I/O signal buffered
- Control
- ON/OFF switch to disable LEDs and zero current draw
- Test points
- Through-hole test points for each I/O signal on H1 and H2 connectors
- Bus interface
- CubeSat Kit Bus standard, 104-pin connector
About

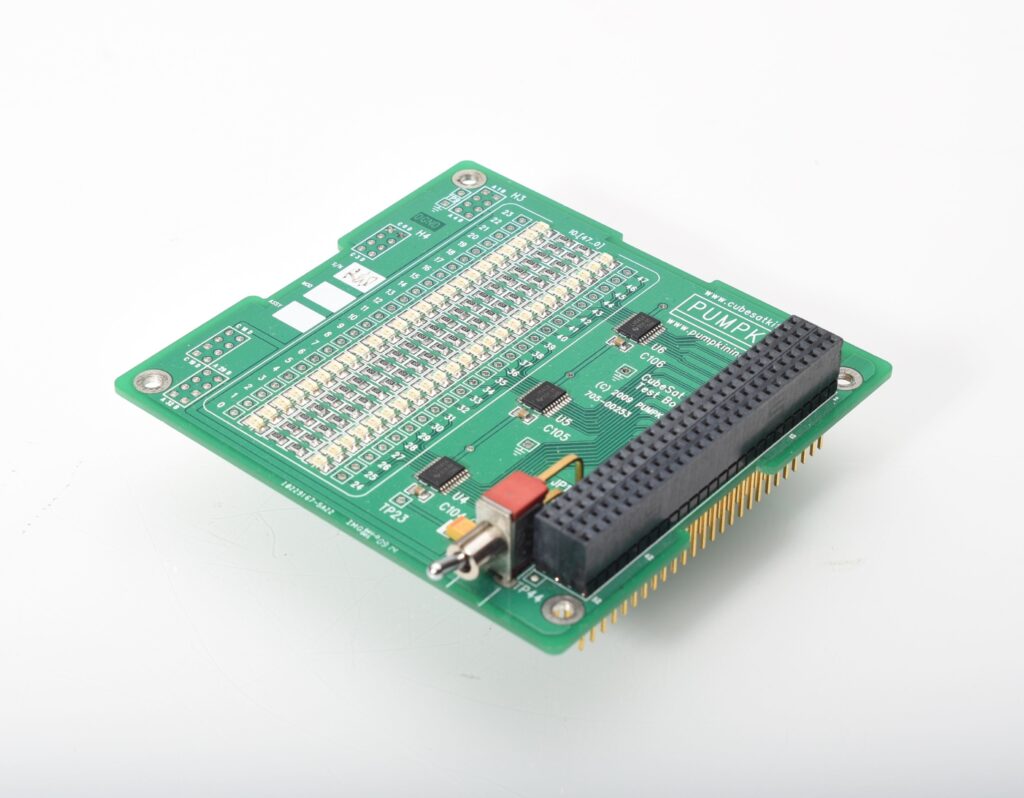

The I/O LED Module displays the status of all 48 I/O lines (IO.[47..0]) on a CubeSat Kit Bus Connector. It is very useful for at-a-glance visual monitoring of a CubeSat’s I/O signals during development and integration. Every I/O signal is buffered, and an ON/OFF switch is provided to disable the LEDs and zero the current draw of the module. Through-hole test points are provided for each I/O signal next to each LED, and it is categorized as Development Hardware.
Each unit ships as a fully assembled I/O LED Module. Test points for all 48 I/O signals on the H1 and H2 connectors are clearly marked on the top layer silkscreen, next to the LED associated with the signal. The module is compatible with all CubeSats that conform to the CubeSat Kit Bus standard with its 104-pin connector.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
