External Power Supply
Pumpkin, Inc.
A desktop switching power supply, available in +5Vdc or 6-12Vdc output variants, used to bench-power Pumpkin's Development Board and Motherboard Module during ground development.
Technical specifications
- Output voltage options
- 5Vdc; 6-12Vdc
- Connector
- 5.5/2.1mm barrel plug
- AC input cord
- IEC power cord receptacle; 3-prong / grounded IEC cord provided (USA customers)
- Compatible with (5Vdc supply)
- Motherboard Module (MBM); Motherboard Module 2 (MBM 2); Development Board (DB)
- Compatible with (6-12Vdc supply)
- Development Board (DB), via +6Vdc to +26Vdc input
- Category (site breadcrumb)
- CubeSat Kit Accessories
About

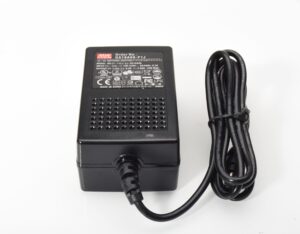

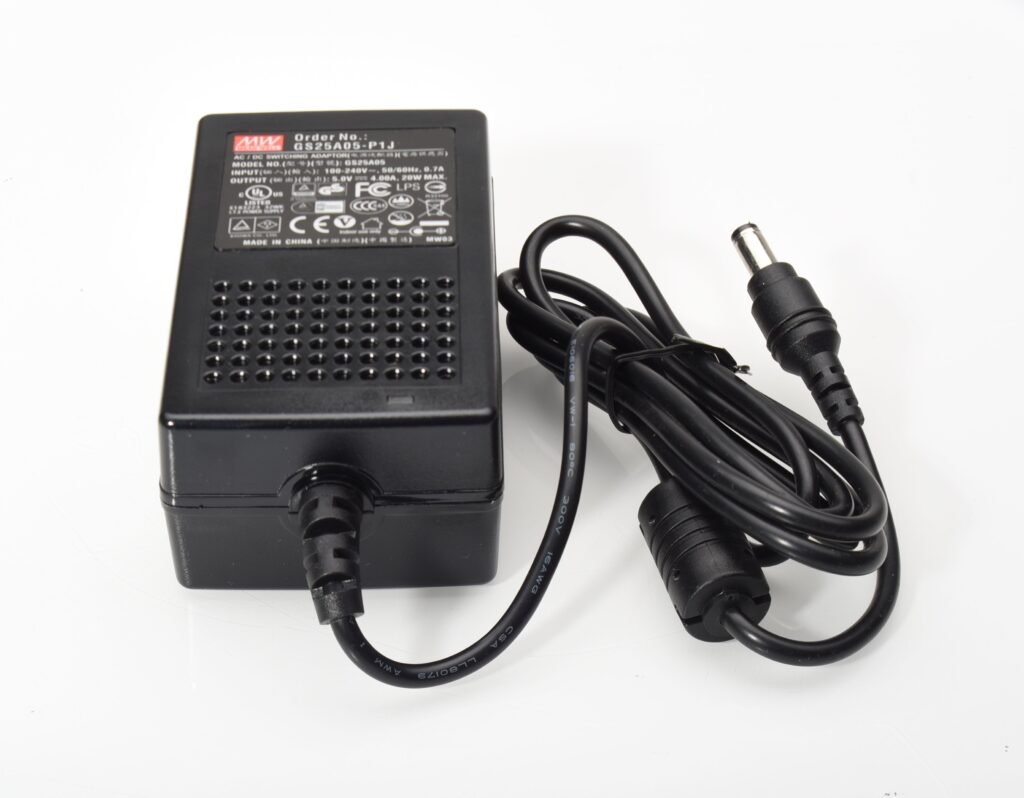

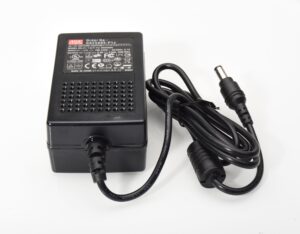

The External Power Supply includes one desktop switching power supply with an IEC power cord receptacle and a 5.5/2.1mm barrel plug. A 3-prong / grounded IEC power cord is provided to customers in the USA.
These desktop power supplies are used to power the Development Board (DB) and the Motherboard Module (MBM & MBM 2) during ground development and bench testing. The +5Vdc power supply option can power the DB and the MBM & MBM 2 through their +5V inputs. The 6-12Vdc power supply option can power the DB via its +6Vdc to +26Vdc input. The DB and MBM/MBM 2 are all designed to avoid damage if the wrong power supply variant is attached at their power inputs.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
