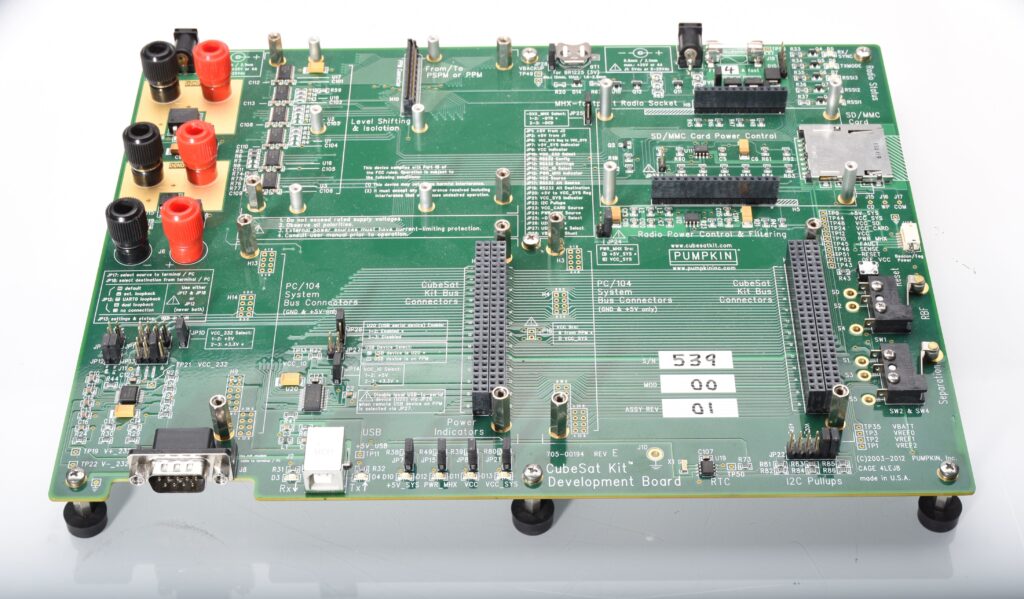

Development Board (DB)
Pumpkin, Inc.
Pumpkin CubeSat Kit module that hosts a Pluggable Processor Module (PPM) to form a low-power 8- or 16-bit MCU/DSC command-and-data-handling (C&DH) module for a CubeSat.
Technical specifications
- SKU
- 710-00297
- Bus interface
- CubeSat Kit Bus standard, 104-pin connector
- Compatible processor modules
- PPM A1, PPM A2, PPM A3, PPM B1, PPM D1, PPM D2, PPM E1
- Ordering restriction
- A la carte orders require prior purchase of a complete CubeSat Kit
About
The Development Board (DB) is a module of Pumpkin’s CubeSat Kit nanosatellite architecture. It is compatible with all CubeSats that conform to the CubeSat Kit Bus standard with its 104-pin connector, and is designed to accept one of Pumpkin’s Pluggable Processor Modules (PPM A1, A2, A3, B1, D1, D2 or E1) to create a working command-and-data-handling module for development and bring-up purposes.
Because the schematics, software, test code and other documentation for this item are only provided with the purchase of a complete CubeSat Kit, the Development Board may only be ordered “a la carte” once a customer has purchased a complete CubeSat Kit. This restriction allows Pumpkin to provide CubeSat Kit components, associated software and technical support at low prices.
Documentation available for the module includes instructions for USB use in Windows 10, a configuration file for Windows 10, and Windows 7 (and later) driver files (cskdriverswin7.zip).
Documentation
- 710-00297-E_DS_DB.pdf www.pumpkininc.com ↗
- 20181013_memo_CSK_for_post-Win7_world.pdf www.pumpkininc.com ↗
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
