220W Deployable Clamshell Solar Array (DCSA)
Pumpkin, Inc.
220W peak power deployable clamshell solar array for CubeSats and small satellites — 32.2% efficient triple-junction cells, 44 W/kg specific power, stows in 7U.
Technical specifications
- Peak Output Power
- 220 W
- Cell Efficiency (BoL)
- 32.2%
- Cell Type
- Triple-junction (AM0)
- Number of Panels
- 24
- Number of Cells
- 192
- Total Mass
- ~5,050 g
- Specific Power
- 44 W/kg

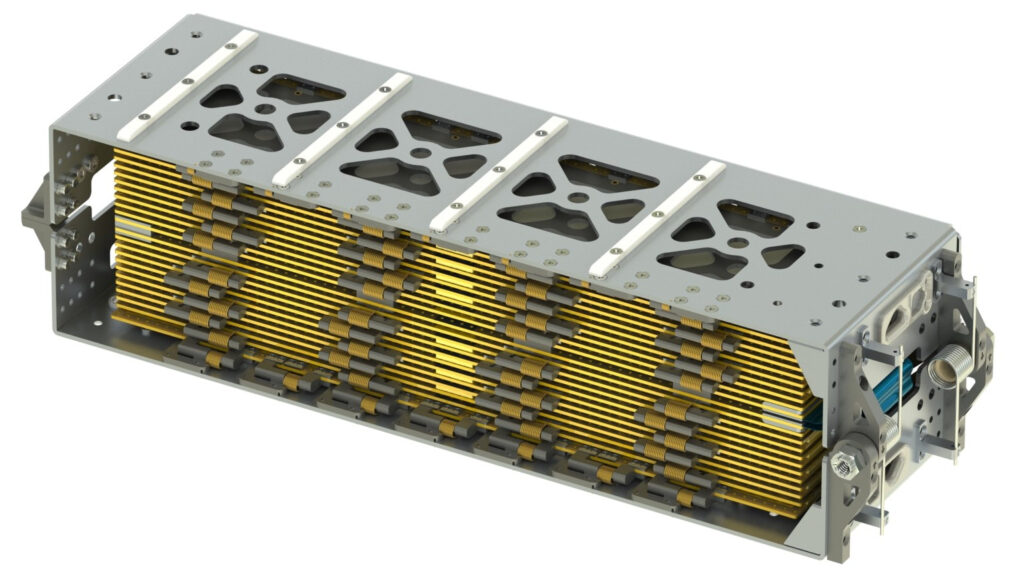

- Stowed Dimensions
- 43.9 × 13.6 × 11.6 cm
- Stowed Volume
- 7U
- Electrical Config A
- 8S12P+8S12P — two 20V @ 5.5A strings
- Electrical Config B
- 16S12P — 40V @ 5.5A
- Electrical Config C
- 8S24P — 20V @ 11A
- Deploy Type
- Clamshell deployment
About

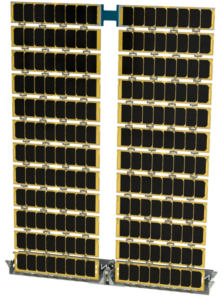

The Pumpkin 220W Deployable Clamshell Solar Array (DCSA) provides 220W peak output power from 192 high-efficiency triple-junction solar cells (32.2% BoL efficiency) arranged across 24 panels in a clamshell-deploy configuration. Total assembly mass is approximately 5,050g, giving a specific power of 44 W/kg.
Stowed dimensions are 43.9×13.6×11.6cm, fitting within a 7U footprint. Electrical configurations include 8S12P+8S12P (two 20V@5.5A strings), 16S12P (40V@5.5A), or 8S24P (20V@11A) to match a wide range of bus voltages and MPPT requirements. The DCSA is compatible with the Pumpkin EPSM1 module and SUPERNOVA bus family.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
