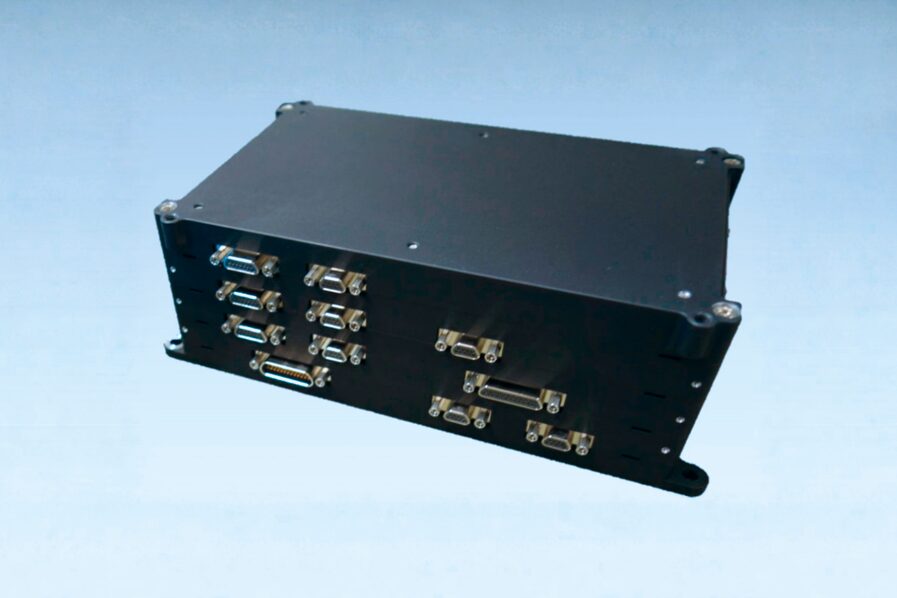

PCU-110 Power Conditioning Unit
Berlin Space Technologies
Power conditioning and distribution unit for small satellites handling regulation, switching, DC/DC conversion, and safety features. Up to 180 W output.
Technical specifications
- Solar Panel Interface
- 12× 23.1V (configurable)
- Battery Interface
- 6× 23.1V (configurable)
- Bus Voltage
- 23.1V (configurable)
- Regulated Outputs
- 12V, 5V, 3.3V (configurable)
- Maximum Power Output
- 180 W
- Data Interfaces
- RS422, I²C
- Mass
- 1080 g
- Dimensions
- 186 × 105 × 61 mm
- Design Life
- 5 years
About
The PCU-110 handles power regulation, power switching, DC/DC conversion, and safety features for small satellites. Supports 12 solar panel inputs and 6 battery inputs at 23.1V nominal (all configurable). Provides regulated 12V, 5V, and 3.3V outputs. Maximum power output 180 W. RS422 and I²C data interfaces. Heritage since 2015.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
