GPS-110 GNSS Receiver
Berlin Space Technologies
Miniature GPS receiver with dual redundant internal units, <10 m position accuracy, RS422 interface. Flight heritage since 2023.
Technical specifications
- Position Accuracy
- < 10 m
- Velocity Accuracy
- 0.1 m/s
- Time to First Fix
- 40 s (cold start)
- Power Consumption
- 3 W
- Data Interface
- RS422
- Mass
- 285 g
- Dimensions
- 91 × 84 × 41 mm
- Design Life
- 5 years
About

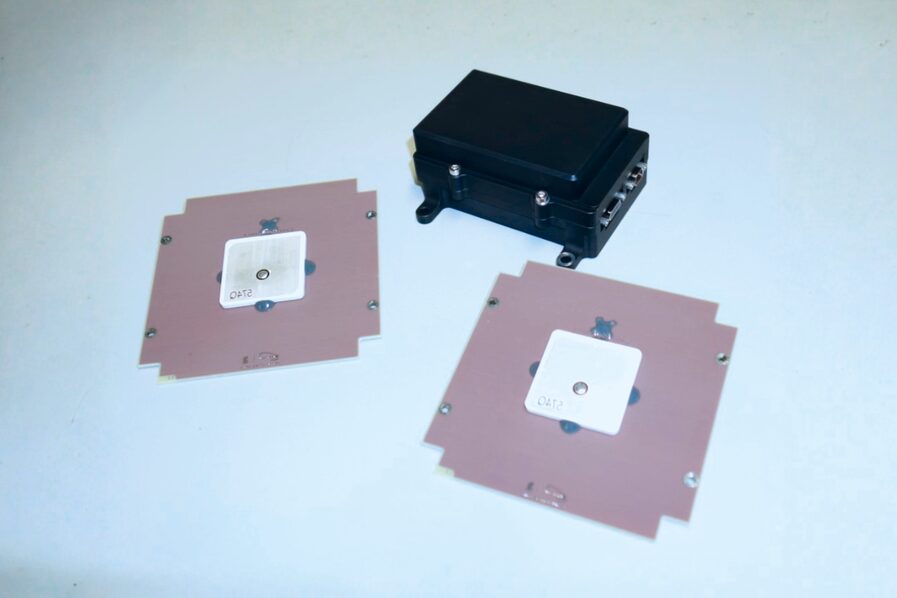

The GPS-110 is a miniature GPS receiver housing two separate GPS receiver units internally for redundancy. Delivers <10 m position accuracy and 0.1 m/s velocity accuracy with 40-second cold-start time to first fix. RS422 data interface, 3 W power consumption. Flight heritage since 2023.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
