Flight-proven 10 kg class CubeSat platform with heritage since 2018 (TUBiX10/S-NET), featuring multi-band communications and flexible payload accommodation.

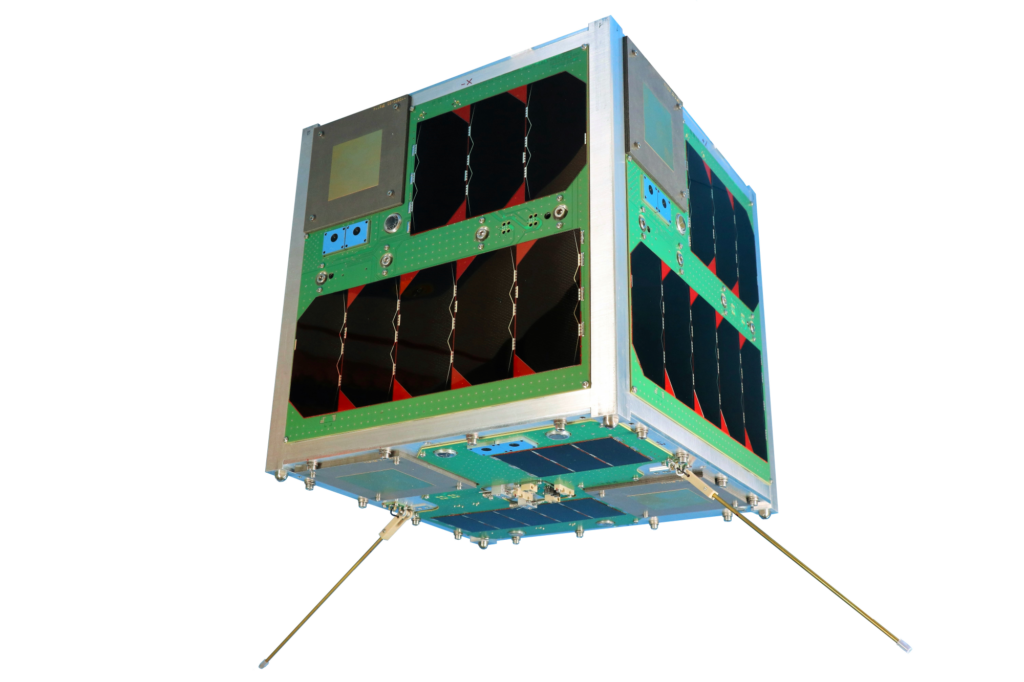

RapidCube-10
Flight-proven 10 kg class CubeSat platform with heritage since 2018 (TUBiX10/S-NET), featuring multi-band communications and flexible payload accommodation.
Description

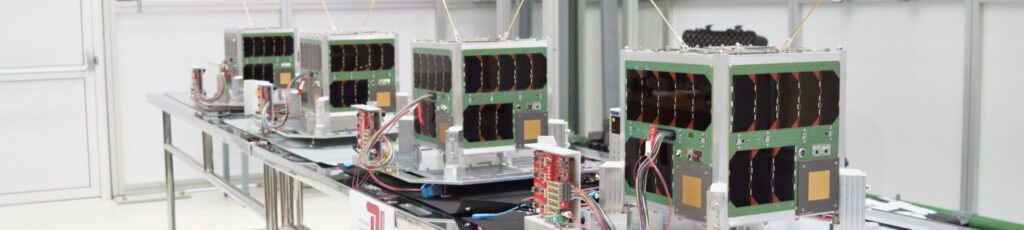

The RapidCube-10 is Rapid Cubes' flight-proven nanosatellite platform based on the TUBiX10 design licensed from TU Berlin — a platform with in-orbit heritage since February 2018 when four TUBiX10 units were launched as the S-NET mission demonstrating inter-satellite communication. A fifth TUBiX10 was launched as SALSAT in 2020.
The RapidCube-10 accommodates payloads up to 4–5 kg with 4.5 W average / 35 W peak power. It features S-band and UHF telemetry/telecommand links alongside an X-band high-speed downlink capable of up to 100 Mbps. Its failure-tolerant architecture and flight-proven heritage make it a reliable choice for demanding LEO missions.
Specifications
| Mass Class | 10 kg |
|---|---|
| Stowed Dimensions | 25 × 25 × 25 cm |
| Payload Mass | 4–5 kg |
| Payload Power (Average) | 4.5 W |
| Payload Power (Peak) | 35 W |
| TM/TC Band | S-band + UHF |
| High-Speed Data Link | X-band, up to 100 Mbps |
| Design Life | 2 years |
| In-Orbit Heritage | S-NET mission (Feb 2018, 4 sats), SALSAT (2020) |
