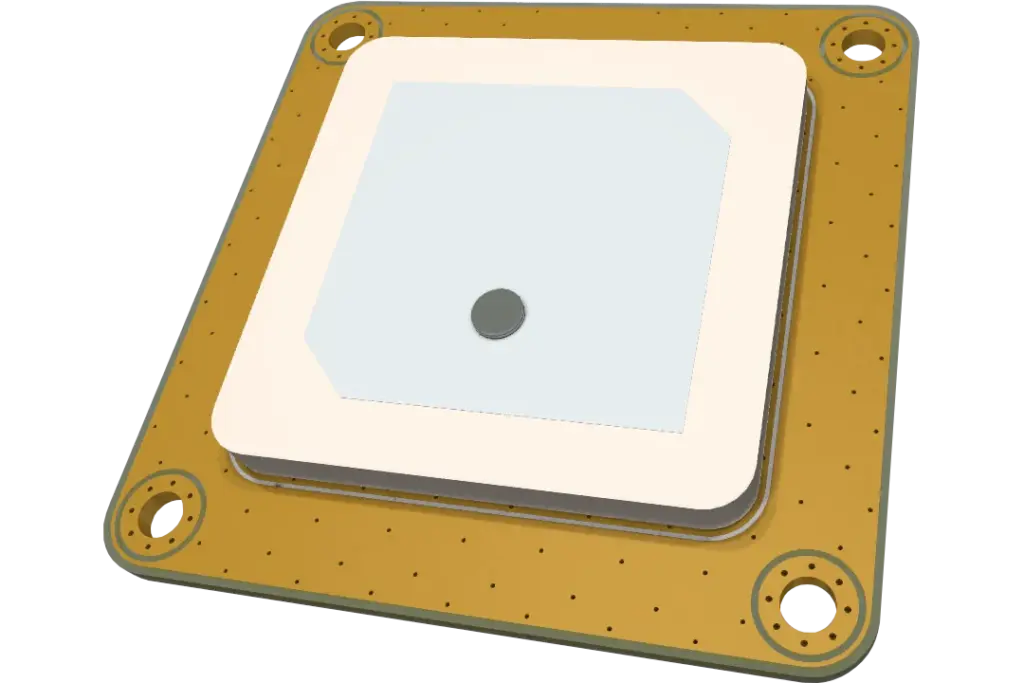

Zenith GNSS Patch Antenna
Spacemanic s.r.o.
High-performance ceramic patch antenna for GNSS reception in nanosatellite missions, integrable into solar or structural panels or delivered as a standalone unit.
Technical specifications
- Antenna type
- Ceramic patch antenna
- Supported bands
- GPS L1, Galileo E1
- Dimensions
- 50 × 50 × 8.8 mm
- Mass
- < 10 g
- Operating temperature
- –40 °C to +85 °C
- Mounting options
- Integrated into solar/structural panel or standalone
- ITAR
- ITAR-free
- Lead time
- 12 weeks
- Price
- 800 €
About
Zenith is Spacemanic’s space-grade ceramic patch antenna for GNSS applications on nanosatellites. It supports GPS and Galileo frequency bands and can be seamlessly embedded into a solar or structural panel, or used as a standalone unit for maximum design flexibility. The compact 50 × 50 × 8.8 mm form factor and sub-10 g mass make it suitable for constrained platforms. Zenith is ITAR-free, qualified for the –40 °C to +85 °C operating range, and supported by Spacemanic’s in-house hardware and software customization capability for mission-specific adaptations.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
