PC/104 form-factor power management unit for 0.5U-2U CubeSats.

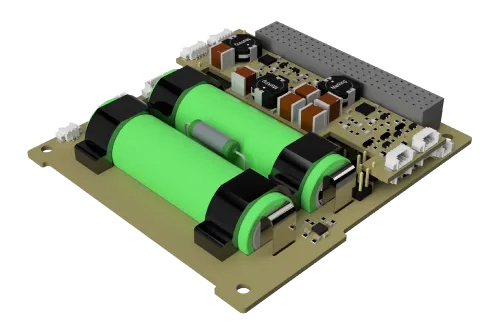

Amun
PC/104 form-factor power management unit for 0.5U-2U CubeSats.
Description
Amun delivers reliable power management for small satellites, ensuring stable operation across mission-critical systems. Designed in the PC/104 form factor, it is intended for 0.5U-2U CubeSats and integrates easily into modular satellite platforms, and has flown on 7 CubeSat missions.
Specifications
| Operating temperature | -40 C to +85 C |
|---|---|
| Dimensions | 95.9 x 90.2 x 19.7 mm (0.2U) |
| Mass | 185 g |
| Power outputs | 1x fixed 3.3 V, 1x fixed 5 V, 4x configurable 3.3V/5V, 1x VBAT |
| Battery configuration | 2S1P |
| Battery capacity | 24 Wh |
| Battery voltage | Typical 7.2 V, max 8.2 V |
| Thermal control | Manual or automatic |
| Interfaces | 1x I2C, 1x RS485, 2x UART, 1x CAN |
| Flight heritage | 7 CubeSat missions (LASARSat, GRBBeta, Veronika, and more) |
