Eddie On-Board Computer
Spacemanic s.r.o.
Ultra-low-power CubeSat OBC with FreeRTOS and on-board sensors, drawing only 60 mW average in the standard Spacemanic module form factor.
Technical specifications
- Operating system
- FreeRTOS-based
- Dimensions
- 67 × 42 × 7.5 mm
- Mass
- 25 g
- Power supply
- 3.3 V (5 V for CAN)
- Power consumption
- 60 mW average, 100 mW peak
- Operating temperature
- –40 °C to +85 °C
- Interfaces
- CSP v1 (I2C, RS-485, CAN)
- ITAR
- ITAR-free
- Lead time
- 12 weeks
About

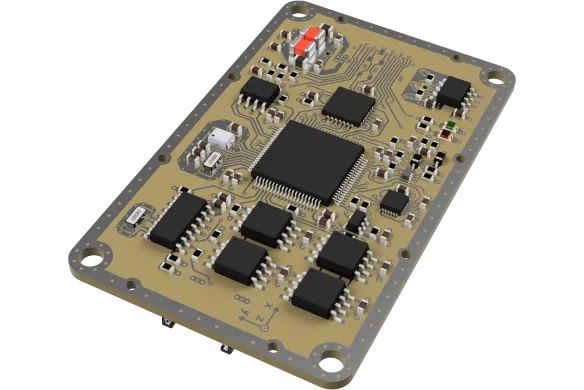

Eddie is Spacemanic’s low-power on-board computer for resource-constrained CubeSat missions. It shares the 67 × 42 × 7.5 mm form factor and 25 g mass of the Spacemanic module family but achieves a notably low power draw of 60 mW average (100 mW peak) from a 3.3 V supply. The module runs a FreeRTOS-based operating system, includes on-board sensors, and provides full CSP v1 connectivity (I2C, RS-485, CAN). Like Deep Thought, Eddie supports an open-source software SDK. It is ITAR-free and suitable for power-budget-sensitive missions on 1U–3U platforms.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
