AirSAR-Alpha-L
Sisir Radar
Multi-channel L-band SAR payload for UAVs and aircraft, offering the world's highest resolution L-band foliage-penetrating imaging.
Technical specifications
- Frequency of Operation
- L Band (1-2 GHz)
- Altitude
- 10 km
- Imaging Range
- 25 km
- Range Resolution
- 1 m
- Azimuth Resolution
- 0.75 m
- Polarimetry
- Hybrid/Full Polarimetry
- Interferometry
- Repeat Pass Interferometry
- IMU/GNSS
- Embedded high-performance IMU/GNSS unit
- Payload Weight
- 10 kg
- Power Consumption
- Internal 60,000 mAh, 150 W rechargeable power source
- Payload Dimension
- 400 x 400 x 200 mm
About

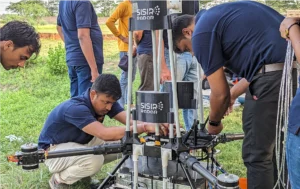

AirSAR-Alpha-L is Sisir Radar’s multi-channel Synthetic Aperture Radar payload delivering the highest resolution currently achievable in the L band. The L-band system provides foliage penetration (FOPEN) capability, not achievable in C or X band radars, and is optimized for Size, Weight and Power (SWaP) so it can be integrated into tactical UAVs, VTOL and fixed-wing UAVs as well as manned aircraft. Collected data is processed with Sisir Radar’s proprietary airborne SAR processor, which includes a custom motion-compensation algorithm supporting all airborne platforms including low-altitude, low-velocity drones. The payload and processor software support all polarimetric modes (single, dual, hybrid, full) and interferometric data processing. A P-band variant of the same payload family is under development for underground tunnel and landmine detection. Applications include 24/7 all-weather surveillance and reconnaissance, cross-border monitoring, detection of equipment and weaponry hidden in forested terrain, and disaster monitoring.
