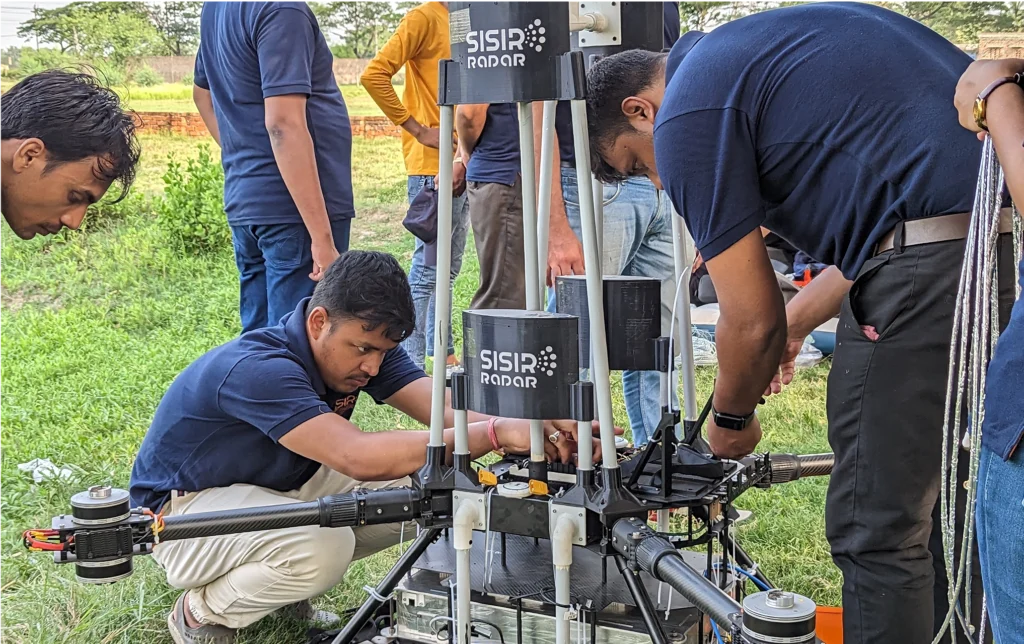

AirSAR-Alpha-L
Multi-channel L-band SAR payload for UAVs and aircraft, offering the world's highest resolution L-band foliage-penetrating imaging.
Description
AirSAR-Alpha-L is Sisir Radar's multi-channel Synthetic Aperture Radar payload delivering the highest resolution currently achievable in the L band. The L-band system provides foliage penetration (FOPEN) capability, not achievable in C or X band radars, and is optimized for Size, Weight and Power (SWaP) so it can be integrated into tactical UAVs, VTOL and fixed-wing UAVs as well as manned aircraft. Collected data is processed with Sisir Radar's proprietary airborne SAR processor, which includes a custom motion-compensation algorithm supporting all airborne platforms including low-altitude, low-velocity drones. The payload and processor software support all polarimetric modes (single, dual, hybrid, full) and interferometric data processing. A P-band variant of the same payload family is under development for underground tunnel and landmine detection. Applications include 24/7 all-weather surveillance and reconnaissance, cross-border monitoring, detection of equipment and weaponry hidden in forested terrain, and disaster monitoring.
Specifications
| Frequency of Operation | L Band (1-2 GHz) |
|---|---|
| Altitude | 10 km |
| Imaging Range | 25 km |
| Range Resolution | 1 m |
| Azimuth Resolution | 0.75 m |
| Polarimetry | Hybrid/Full Polarimetry |
| Interferometry | Repeat Pass Interferometry |
| IMU/GNSS | Embedded high-performance IMU/GNSS unit |
| Payload Weight | 10 kg |
| Power Consumption | Internal 60,000 mAh, 150 W rechargeable power source |
| Payload Dimension | 400 x 400 x 200 mm |
