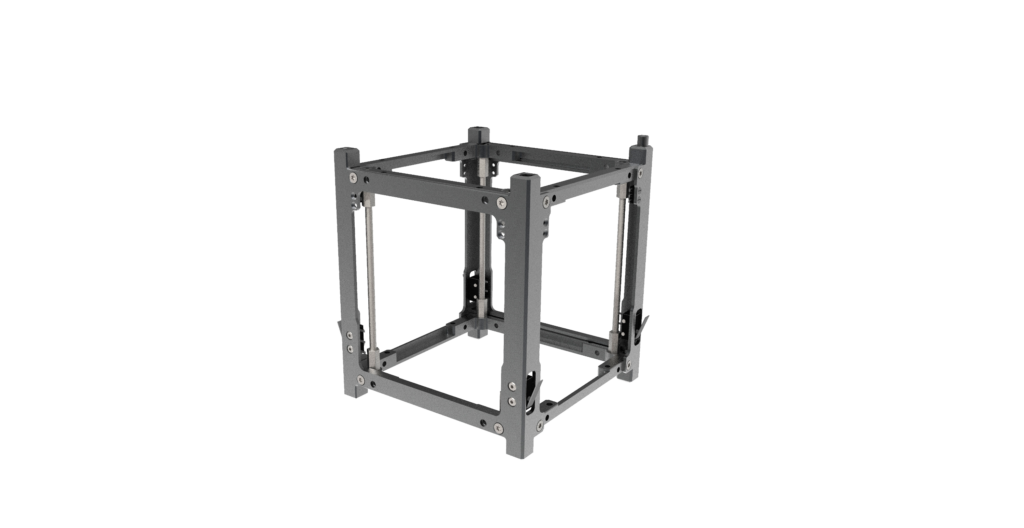

VERSE CubeSat Structures
2NDSpace Srl
Modular CubeSat structures from 1U to 16U with flight-proven reliability and fully customizable interfaces.
Technical specifications
- VERSE-01 form factor
- 1U, mass 90 g
- VERSE-02 form factor
- 2U, mass 195 g
- VERSE-03 form factor
- 3U, mass 290 g
- VERSE-06 form factor
- 6U, mass 690 g
- VERSE-08 form factor
- 8U, mass 890 g
- VERSE-12 form factor
- 12U, mass 1190 g
- VERSE-16 form factor
- 16U, mass 1520 g
- Interface
- Full compliance with CDS (CubeSat Design Specification) interfaces
- Deployment switches
- Up to 6
About
The VERSE series of CubeSat structures is designed to deliver high performance, versatility, and flight-proven reliability for satellite missions from 1U to 16U. With modular design, custom interfaces, and a proven track record in orbit, VERSE structures ensure flexibility and robustness for a wide range of applications, from academic projects to demanding commercial missions. Key features include high-performance modular design, flexible/fast/safe platform integration, user-definable aperture and end-frame layout, compatibility with CDS and commercial components, maximized ease of integration and access, enhanced structural performance, single or multiple PC104-compatible stacks, up to 6 deployment switches, full compliance with CDS interfaces, and customization as standard. The family covers VERSE-01 (1U), VERSE-02 (2U), VERSE-03 (3U), VERSE-06 (6U), VERSE-08 (8U), VERSE-12 (12U), VERSE-16 (16U), plus custom form factors on request.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
