CORE Body-Mounted Solar Panels
2NDSpace Srl
Body-mounted CubeSat solar panels from 1U to 16U using UTJ 30%-efficiency space-grade cells.
Technical specifications
- Peak Power (CORE-01)
- 2.45 W
- OC Voltage options
- 5.2 V
- Suggested for
- 1U
- Side
- Lateral
- Form Factor
- 1U Lateral XY
- Mass
- 38 g
- Solar cell type
- UTJ 30% efficiency space-grade
- Protection
- Dual redundant
About

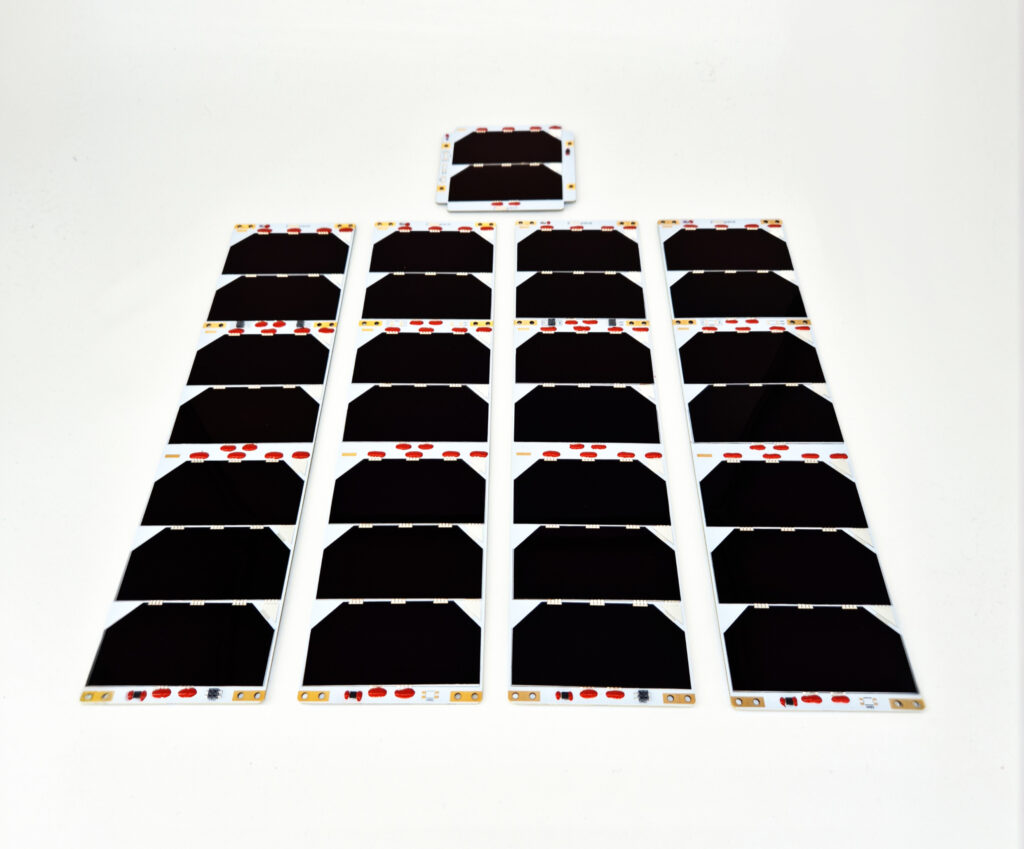

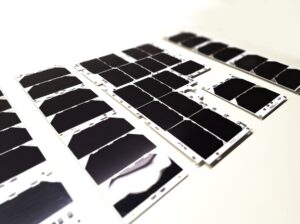

2NDSpace CORE CubeSat solar panels deliver reliable power, modular design, and flight-proven performance for CubeSat and nanosatellite platforms from 1U to 16U. Panels use UTJ 30% efficiency space-grade solar cells, and feature customizable cut-out and panel form factor, custom interface and umbilical connections, ZERO-residual dipole design, stabilized thermal dissipation architecture, and RBF plus embedded magnetorquer options. The CORE-01 (1U lateral variant) delivers 2.45W peak power with dual OC voltage option of 5.2V, dual-redundant protection, modular form factors, multiple voltage options, and add-ons such as magnetorquers, umbilical & RBF, custom sensors, and CubeSpace sensor interface compatibility. The family includes CORE-01/01Z (1U), CORE-02 (2U), CORE-03 (3U), CORE-08/04 (8U), CORE-12/12Z (12U), CORE-16 (16U), CORE-06Z, plus custom smallsat panels above 16U.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
