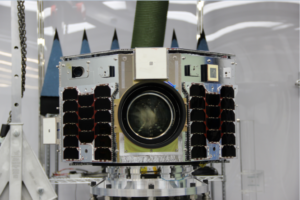

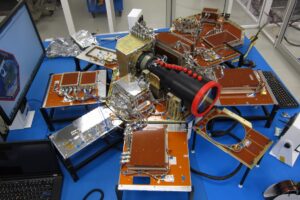

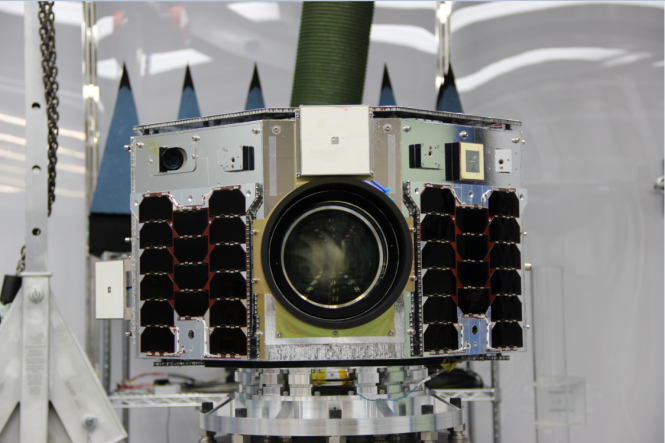

NEMO-HD Microsatellite
NEMO-HD is the first Slovenian microsatellite, combining interactive real-time HD video streaming and multispectral imaging at 2.8 m ground resolution.
Description

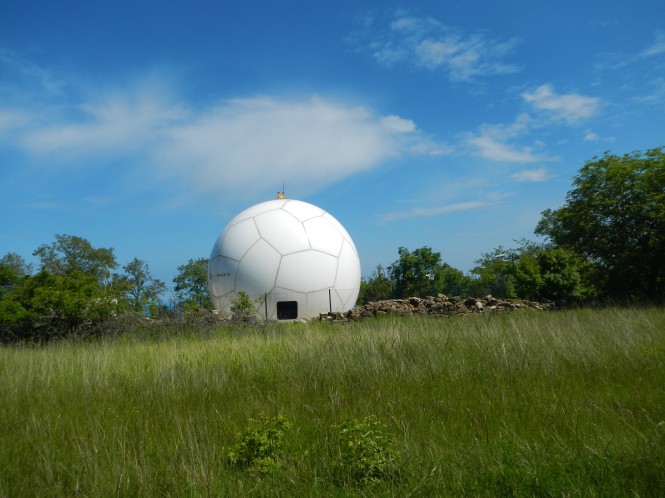

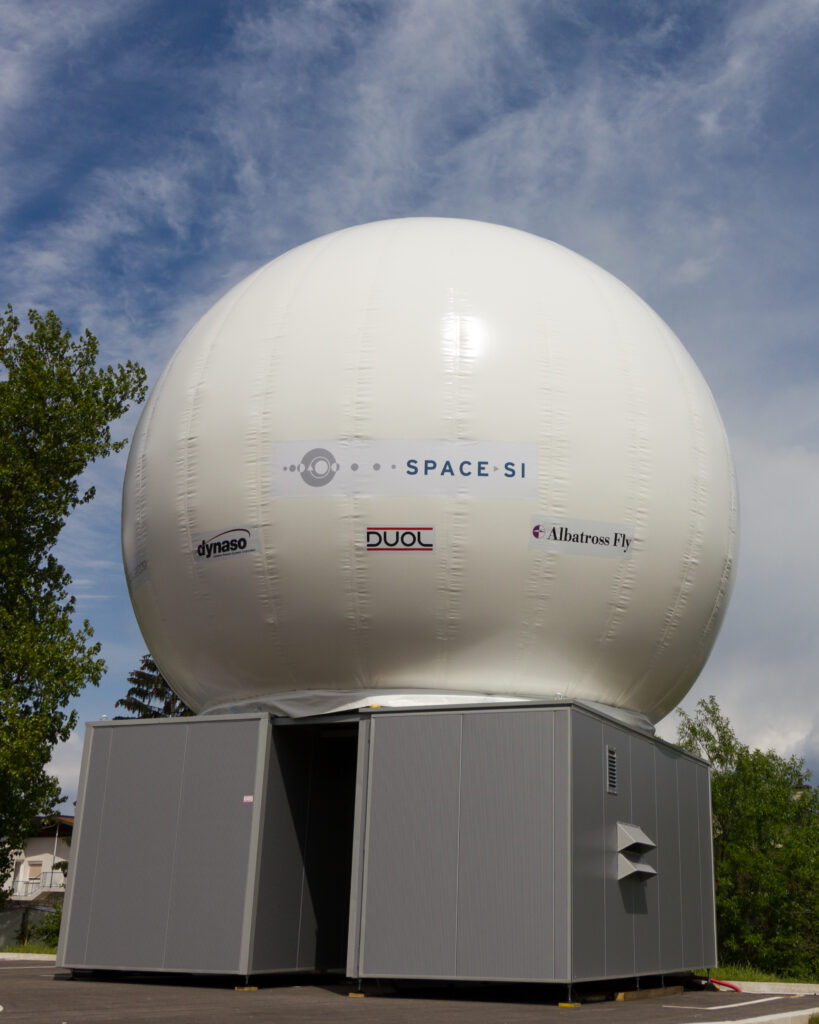

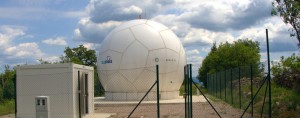

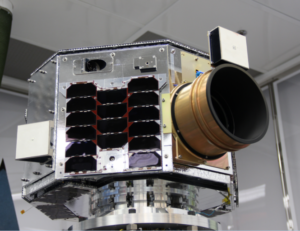

NEMO-HD is the first Slovenian microsatellite, exploring a new Earth observation concept by combining interactive real-time video streaming and multispectral imaging at 2.8 m ground resolution. Operated by SPACE-SI, it was developed in collaboration with the Space Flight Laboratory at the University of Toronto Institute for Aerospace Studies. In addition to its two optical payloads, the satellite carries a three-axis attitude determination and control system, body-mounted solar panels, and a Li-ion battery pack. Command and telemetry use a UHF receiver and S-band transmitter, while payload data are downloaded via a 50 Mbps X-band transmitter. Together with SPACE-SI's transportable STREAM ground station and STORM data-processing chain, NEMO-HD forms an agile, cost-effective remote sensing system for smart cities, river basins, maritime, forestry, agriculture, drought and flood monitoring. The satellite launched aboard a Vega rocket from French Guiana on September 3, 2020.
Specifications
| Payload capacity | 2.8 m PAN and 5.6 m MS ground sample distance from 520 km altitude |
|---|---|
| Frequency | Four spectral channels: 420-520 nm, 535-607 nm, 634-686 nm, 750-960 nm |
| Video | High-Definition real-time video at 1920x1080 pixels |
| Interface | Real-time imaging/video streaming over Slovenia or other ground infrastructure |
| Dimensions | Three-axis stabilized bus |
| Data rate | 50 Mbps X-band downlink |
| Capacity | 279.4 GiB on-board storage |
| Power | Peak energy production 770.9 Wh, peak power 55 W, solar cell capacity 180 W at -10 C |
| Flight heritage | Launched on Vega, French Guiana, 3 September 2020 |
