About SPUTNIX

SPUTNIX (SPUTNIX LLC, ООО «СПУТНИКС») is a Russian designer and manufacturer of small-satellite hardware, founded in 2011 in Moscow as a spin-off of the Satellite Technology Division of SCANEX. The company develops and produces CubeSat platforms (OrbiCraft-Pro line in 1U/3U/6U/12U form factors), onboard subsystems (on-board computers, ADCS sensors and actuators, radio/communication modules, power systems, thermal control units), ground stations, and test equipment, and is based at the Skolkovo Technopark in Moscow.

On August 25, 2021, SITRONICS Group (a subsidiary of AFK Sistema) acquired 71.06% of SPUTNIX's shares. Sitronics Group is a large, diversified Russian technology holding whose own corporate site (sitronics.com) covers unrelated business lines (servers, EV charging, industrial IoT, satellite-data services) and does not carry a cubesat-hardware product catalog. SPUTNIX continues to operate under its own brand and product line, with its own website (sputnix.ru) hosting the full, current hardware catalog; this listing therefore uses "SPUTNIX" as the trading name and sputnix.ru as the canonical website, while noting Sitronics Group as its parent/majority shareholder.

SPUTNIX's product line has substantial flight heritage, including the TabletSat-Aurora and OrbiCraft-Pro/Zorkiy CubeSat missions, and its onboard software and ADCS algorithms have been flight-qualified across multiple missions. The company also operates or supplies ground-segment infrastructure (mission control centers, ground stations) and test facilities (anechoic chamber, air-bearing tables) supporting its satellite hardware business.

Milestones

2011 SPUTNIX founded in Moscow as a spin-off of SCANEX's Satellite Technology Division.
2021 SITRONICS Group (a subsidiary of AFK Sistema) acquires 71.06% of SPUTNIX shares.

Company Info

Headquarters Moscow, Russia, Russia

Offices 121205, Moscow, Technopark Skolkovo, Bolshoy Boulevard, 42, building 1, office 3.305 — Moscow, rus

Founded 2011 (15 years)

Specializations

manufacturer

Website sputnix.ru/en ↗

Email contact@sputnix.ru

Photos 2

Products

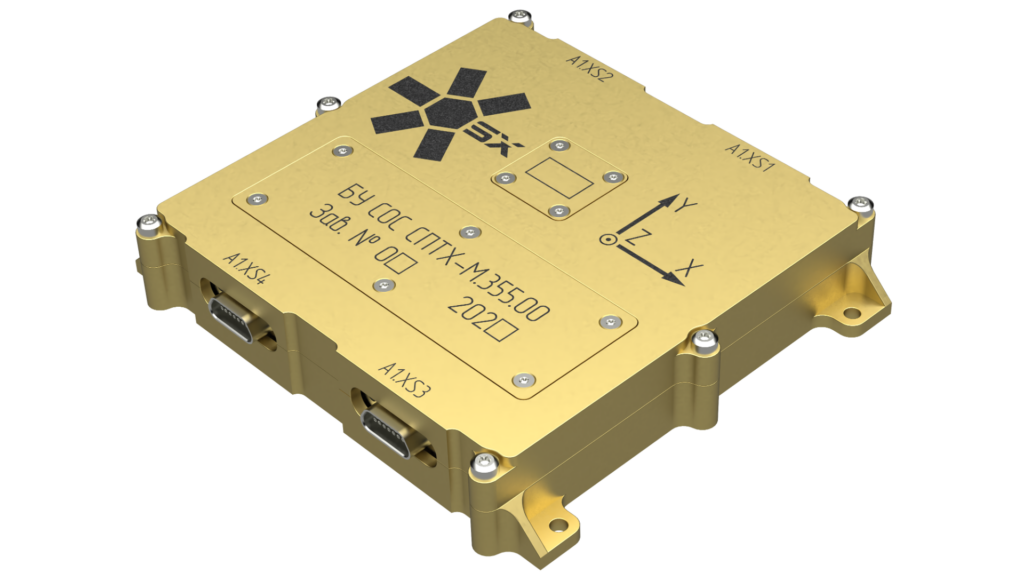

A dual-redundant attitude control and stabilization system control unit (OSSCU, SX-SBOX-ADCU-01) running SPUTNIX's flight-qualified ADCS software.

1 9

Dimensions, mm	101 x 100 x 20 (without fasteners)
Mass, g	220
Power voltage, V	6-36 (without galvanic isolation)
Power consumption, Wt	no more than 5 (average 2)
Duplicated interfaces	CAN2B, RS422/485
Reservation	Hot redundancy
Processor	160 MHz, ARM Cortex-M4
Storage	32 Mb ROM (Flash), 4 Mb ROM (MRAM), 16 Mb RAM
Operating system	RTOS

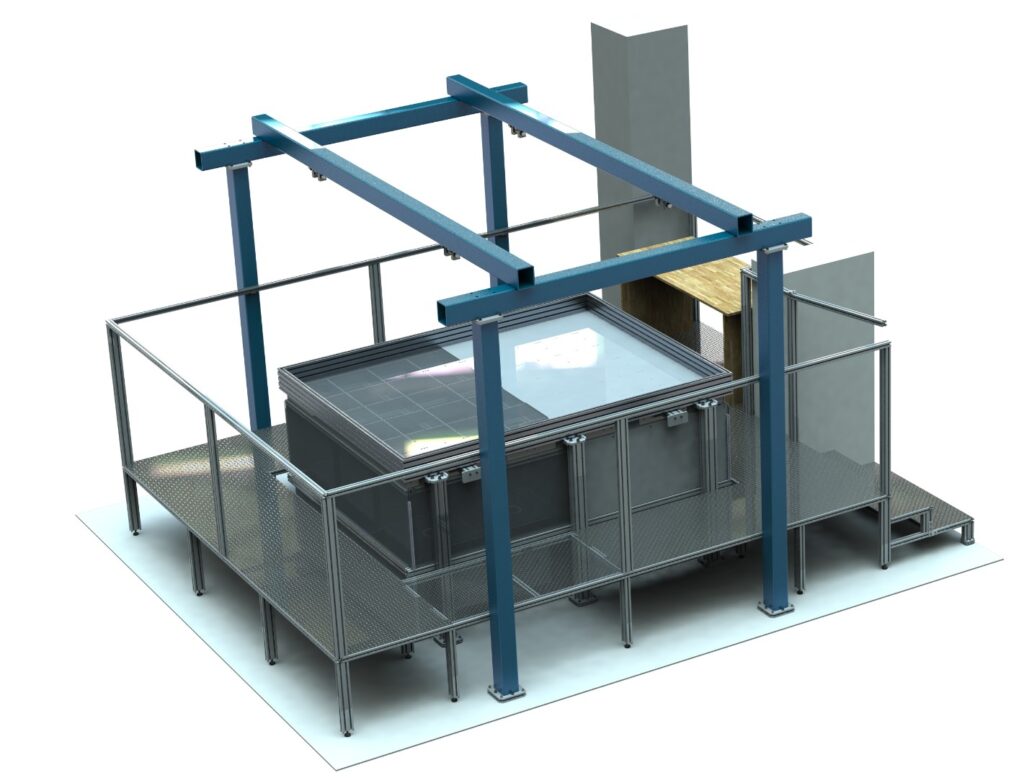

A frictionless air-bearing table for testing relative-motion, docking, and multi-satellite GNC algorithms.

1 8

Overall dimensions	5000x4000x3000 mm
Active area dimensions	1860x2480 mm
Platform carrying capacity	up to 10 kg
Working clearance between table surface and platforms	up to 0.5 mm
Working body	atmospheric air
Mechanical horizon accuracy	not worse than 0.1 mm
Independent measurement system accuracy (orientation)	not worse than 1 deg
Independent measurement system accuracy (position)	not worse than 10 mm

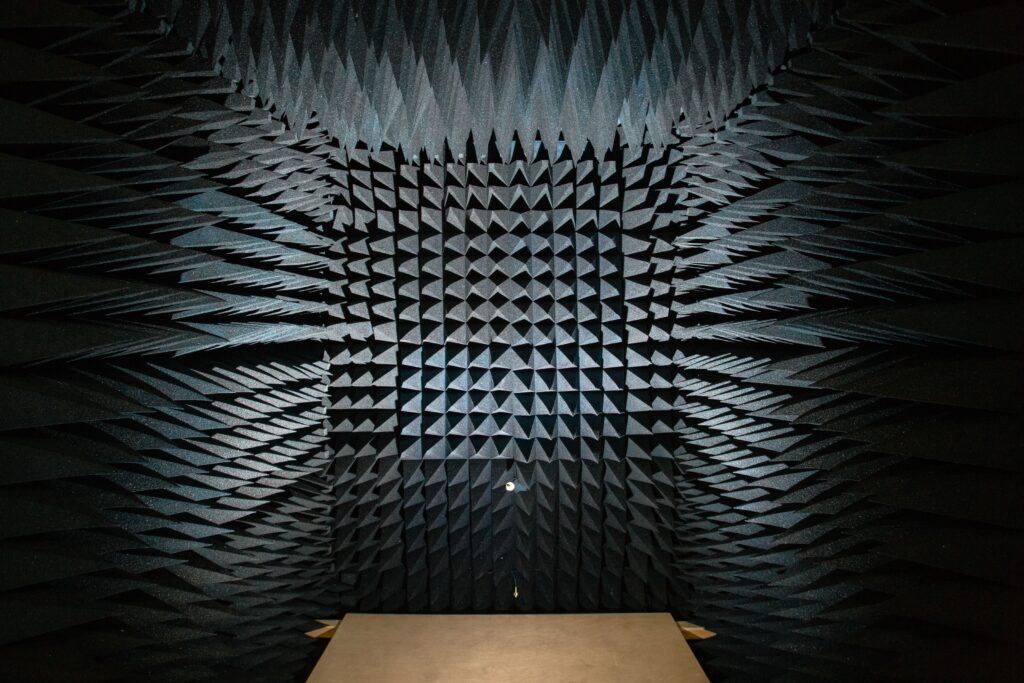

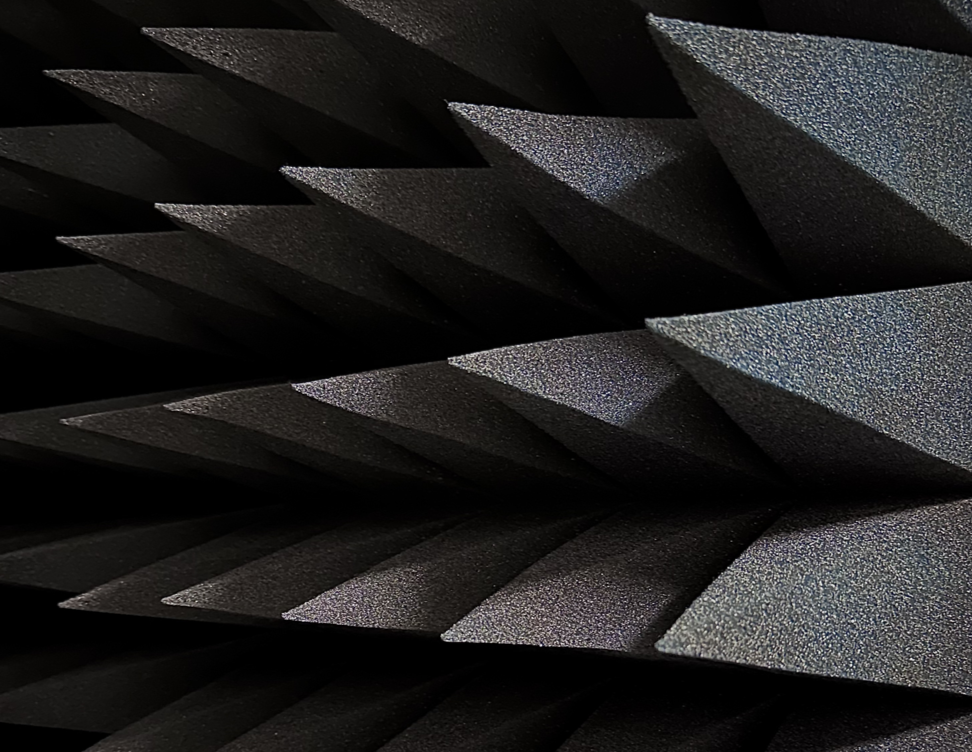

A modular, on-site-assembled anechoic chamber (200 MHz-45 GHz) for antenna pattern and EMC testing.

1 8

Working volume	not less than 2x2x2 m
Anechoic volume	0.7x0.7x0.7 m
Doorway dimensions	at least 1.9x1.9 m
Anechoic level	at least 20 dB (400-440 MHz range)
Shielding level	at least 40 dB (400-440 MHz range)
Pyramidal RAM height	350 mm
Mobility	yes
Radio-transparent test table	yes

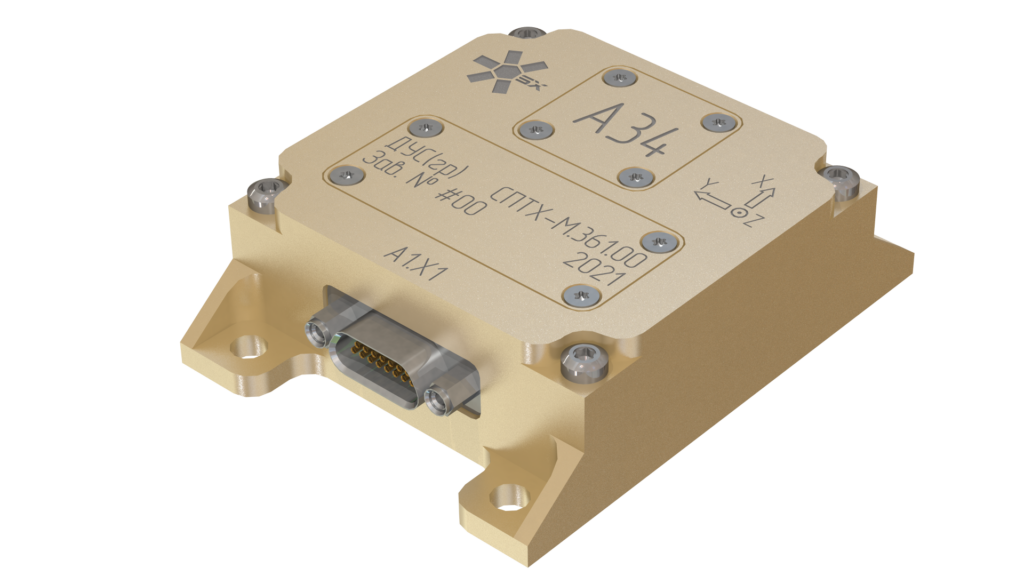

A triaxial MEMS-based angular velocity sensor (SX-SBOX-AVS-MEMS-01) for small satellite attitude determination.

1 7

Dimensions, mm	54 x 52 x 20 (without fasteners)
Mass, g	75
Power voltage, V	6-36 without galvanic isolation
Power consumption, Wt	0.6
Duplicated interfaces	CAN2B
Random component of zero signal drift at constant temperature (1σ)	2°/h
Spectral noise power density (averaging over 100 seconds, 1σ) per axis	0.15°/√h

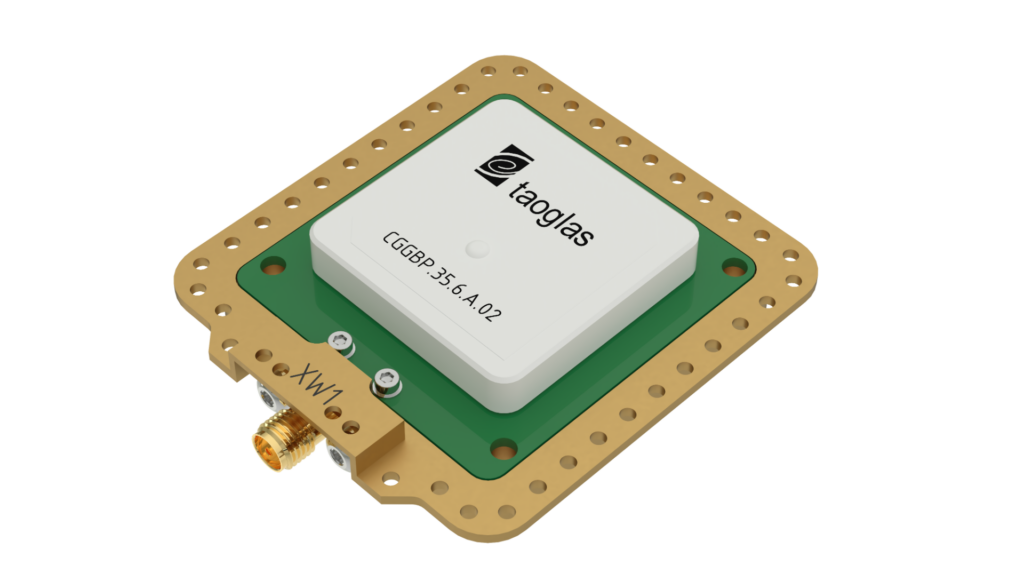

A passive printed L1-band antenna (AFS-GNSS) for receiving GNSS positioning signals aboard a spacecraft.

1 9

Antenna Type	Printed
Operating frequency range	1559-1607 MHz
Gain	at least 5.5 dB
Standing wave voltage coefficient	no more than 1.5
Type of polarization	Circular, RHCP
Normal ellipticity coefficient	no more than 1.7 dB
Width of radiation pattern at minus 3 dB level	at least 84 degrees
Dimensions	68 x 68 x 15 mm
Mass	61 g

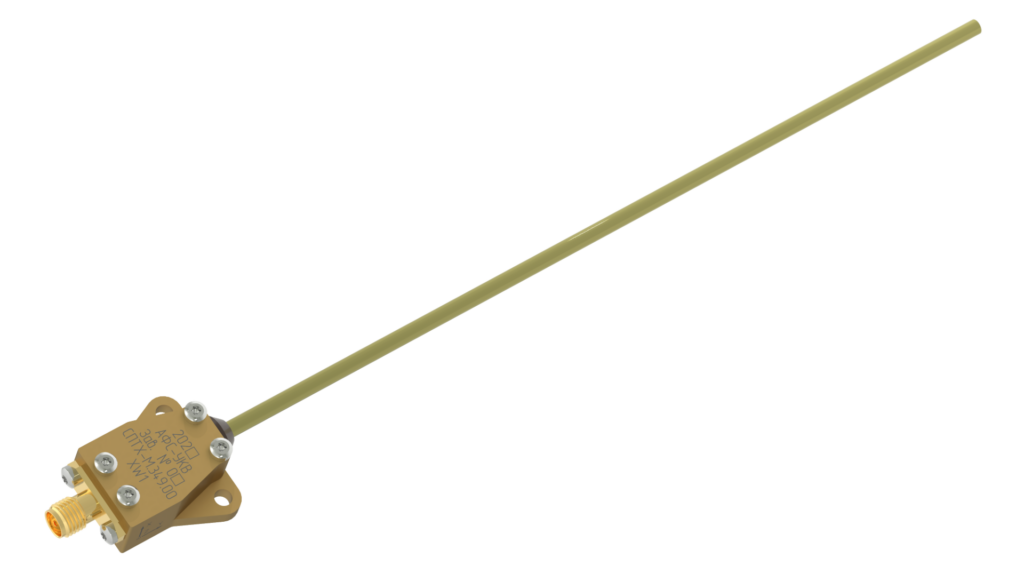

A monopole UHF-band antenna converting electrical signals into electromagnetic waves for satellite communications.

1 7

Antenna Type	monopole
Operating frequency range	400-403 MHz
Gain	at least 4 dB
Standing wave voltage coefficient	no more than 2
Type of polarization	linear
Dimensions	12.4 x 25 x 205 mm
Mass	21 g

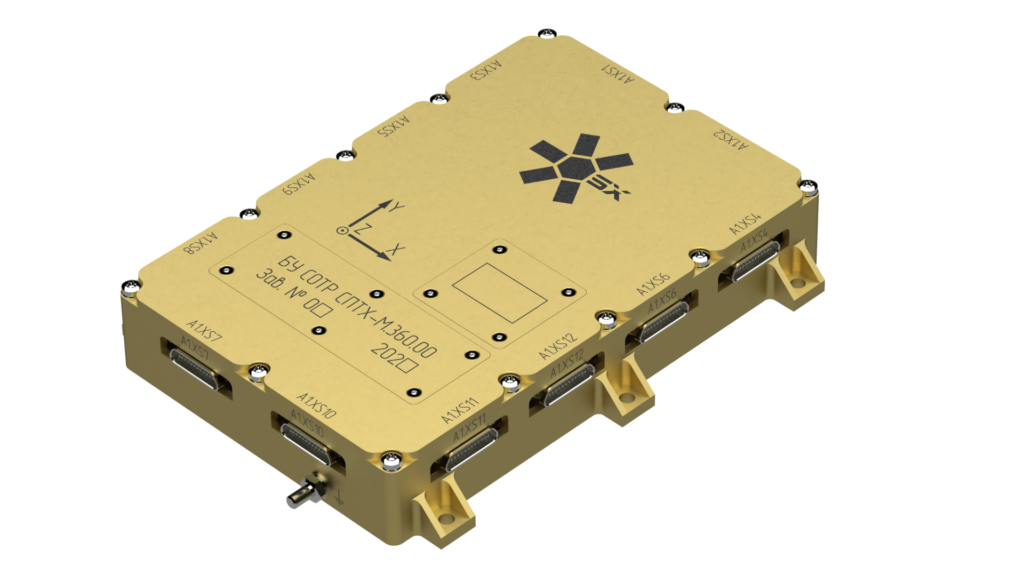

A redundant thermal control unit (SX-SBOX-THERMU-01) that monitors and manages heaters based on analog/digital temperature sensors across the service platform and payload.

1 12

Dimensions	200 x 130 x 30 mm
Mass	600 g
Supply voltage	22-33 V
Power consumption without heaters included, no more	5 W
Duplicated interface	CAN2B
Number of half-sets in device	2 pcs
Number of electric heaters connected per half-set	14 pcs
Power of a single heater, no more	60 W
Number of analog temperature sensors connected per half-set	36 pcs
Type of connected analog temperature sensors	P1K0.232.6W.A.010
Number of digital temperature sensors connected per half-set	14 pcs
Type of connected digital temperature sensors	DS18B20Z

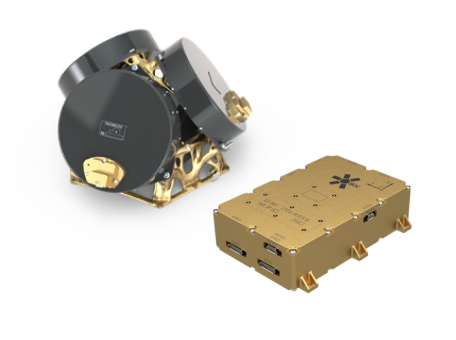

A high-precision fibre-optic gyroscope (FOG, SX-SBOX-AVS-FOG-01) with a control unit and 4-element sensitive assembly (3 main + 1 backup) for orientation determination.

1 9

Dimensions of the sensor unit	275 x 275 x 160 mm (without fasteners)
Dimensions of the control unit	171 x 111 x 44 mm (without fasteners)
Power voltage, V	22-34, galvanic isolation 500V
Power consumption, Wt	up to 33
Mass of control unit with sensor unit, kg	1.7
Duplicated interfaces	CAN2B
Random component of zero signal drift at constant temperature (100 sec-averaging, 1σ) per axis	≤0.005°/h
Random component of zero signal drift when temperature changes from -40°C to +60°C (100 sec-averaging, 1σ) per axis	≤0.02°/h
Spectral density of noise power (per Allan variance) per axis	≤0.0007°/√h

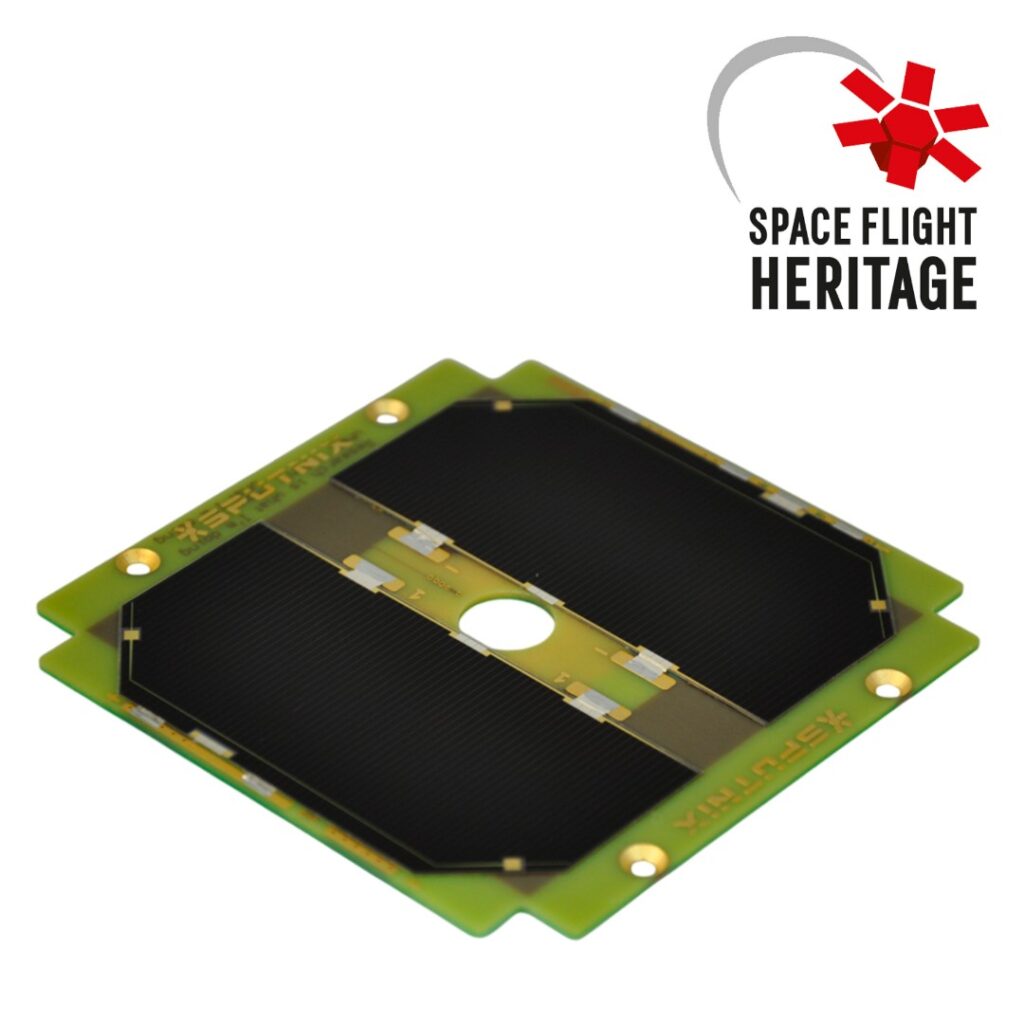

A GaAs solar panel with a built-in electromagnetic coil designed for CubeSat top/bottom edges, with a central aperture for sun sensors or small payloads (SXC-SGE-03).

1 20

Model	SPUTNIX SXC-SGE-03
Feature	Compatible with SPUTNIX SXC1 and SXC3 CubeSat frames
Feature	Diode protection circuit
Feature	Built-in planar coil
Feature	Scalable power and coils using several panels
Dimensions	98 x 98 x 10 mm (1.8mm thickness w/o connector) (±0.2mm)
Mass	37 ± 3 g
Interfaces	Hirose GT8E connectors, scalable
Cell type	GaAs
Open Circuit Voltage (Voc)	5.0...5.5 V
Short Circuit Current (Isc)	480-520 mA
Voltage at max. Power (Vmp)	4.3...4.7 V
Current at max. Power (Imp)	440-480 mA
Efficiency	28%
Coil equivalent area	1.9 m2 (typ.)
Coil resistance	230-260 Ohm
Operating temperature range	-30...+50°C
Storage temperature	-40..+60°C
Mechanical vibration	10g (request full test report)
Mechanical shock	50g (request full test report)

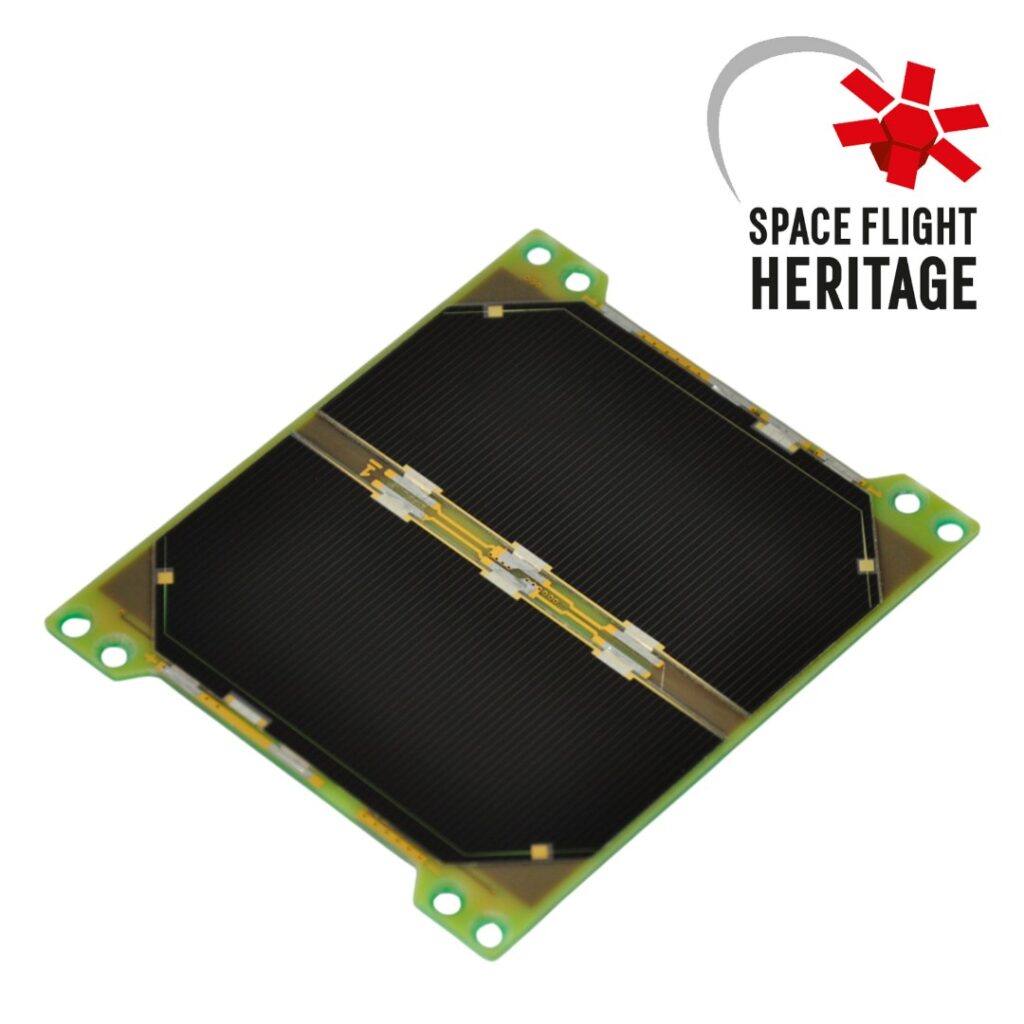

A GaAs solar panel with a built-in electromagnetic detumbling coil, sized for CubeSat side surfaces (SXC-SGS-03).

1 20

Model	SPUTNIX SXC-SGS-03
Feature	Compatible with SPUTNIX SXC1 and SXC3 CubeSat frames
Feature	Diode protection circuit
Feature	Built-in planar coil
Feature	Scalable power and coils using several panels
Dimensions	98 x 82.6 x 8.6 mm (1.8mm thickness w/o connector) (±0.2mm)
Mass	30 ± 3 g
Interfaces	Hirose GT8E connectors, scalable
Cell type	GaAs
Open Circuit Voltage (Voc)	5.0...5.5 V
Short Circuit Current (Isc)	480-520 mA
Voltage at max. Power (Vmp)	4.3...4.7 V
Current at max. Power (Imp)	440-480 mA
Efficiency	28%
Coil equivalent area	1.9 m2 (typ.)
Coil resistance	230-260 Ohm
Operating temperature range	-30...+50°C
Storage temperature	-40..+60°C
Mechanical vibration	10g (request full test report)
Mechanical shock	50g (request full test report)

A power switching unit (PSU-h) distributing main/backup power lines and redundant data/timing buses between up to 8 onboard devices.

2 7

Dimensions, mm	244 x 171 x 45 (without fasteners)
Mass, kg	1.1
Power voltage, V	22-34
Power consumption, Wt	5
Duplicated interfaces	CAN2B
Number of ports	up to 8
Reservation	cold redundancy

A power and control interface converter unit that interfaces with high-speed transmitters of target information.

1 6

Power supply	22...33 V, galvanic isolation 500 V
Control interface	CAN, duplicated
Output power parameters	+11...+16.5 V, 30 W
Parameters of the control output interface	x4 RS-422
Dimensions	171 x 120 x 46 mm
Mass	750 g

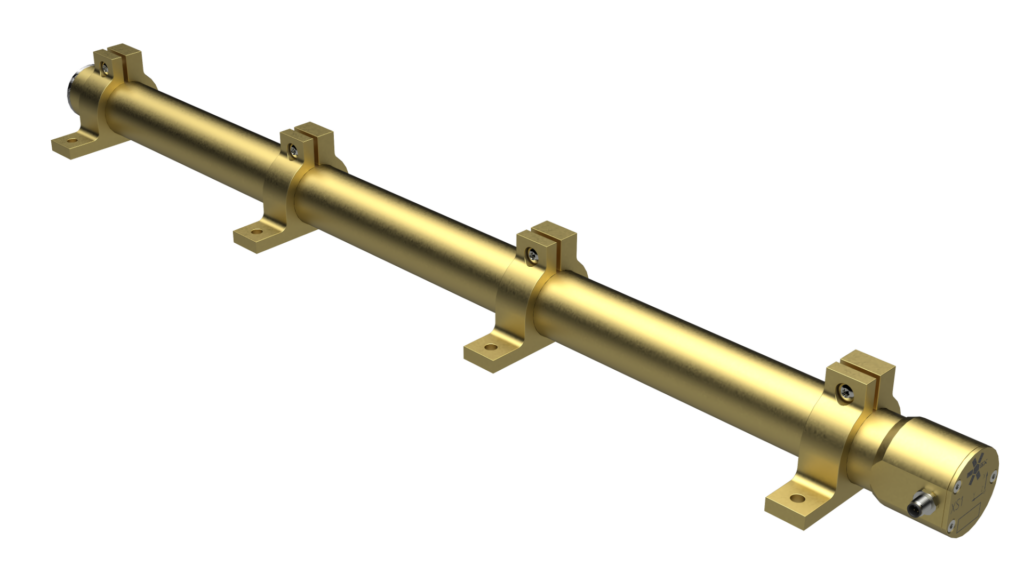

A family of proprietary magnetic torquer rods (SX-MT-1 through SX-MT-30) used with the magnetic torquers control unit for low-accuracy attitude damping and flywheel unloading; a minimum of 3 units is installed per spacecraft.

1 9

Model SX-MT-1	Maximum moment 1 A*m2, Consumption 0.4 Wt, Mass 200 g, Diameter 16 mm, Dimensions 140x30x30 mm
Model SX-MT-5	Maximum moment 5 A*m2, Consumption 0.6 Wt, Mass 350 g, Diameter 20 mm, Dimensions 220x50x35 mm
Model SX-MT-10	Maximum moment 10 A*m2, Consumption 0.7 Wt, Mass 550 g, Diameter 20 mm, Dimensions 320x50x35 mm
Model SX-MT-15	Maximum moment 15 A*m2, Consumption 0.8 Wt, Mass 650 g, Diameter 20 mm, Dimensions 400x50x35 mm
Model SX-MT-20	Maximum moment 20 A*m2, Consumption 1.0 Wt, Mass 800 g, Diameter 20 mm, Dimensions 470x50x35 mm
Model SX-MT-25	Maximum moment 25 A*m2, Consumption 1.2 Wt, Mass 1000 g, Diameter 22 mm, Dimensions 470x50x35 mm
Model SX-MT-30	Maximum moment 30 A*m2, Consumption 1.8 Wt, Mass 1200 g, Diameter 25 mm, Dimensions 440x50x40 mm
MT supply voltage range, V	±10, without galvanic isolation
Methods of controlling the magnetic moment	MT

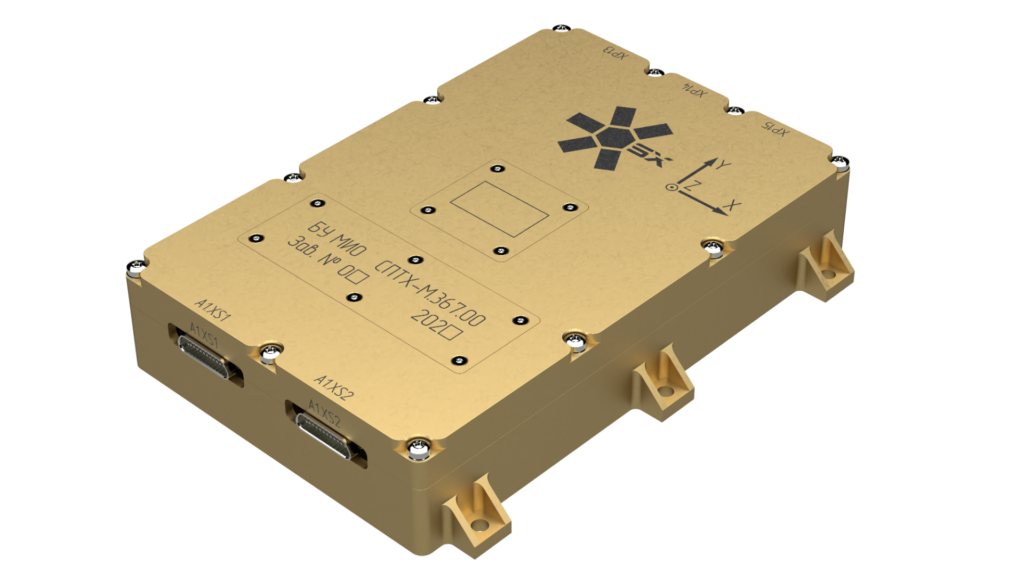

A control unit (SX-SBOX-MTQU-01) driving up to three magnetic torquers via PDM channels to implement angular velocity damping and flywheel unloading.

1 8

Dimensions, mm	54 x 48 x 20 (without fasteners)
Mass, g	85
Power voltage, V	6-36 without galvanic isolation
Power consumption, Wt	0.8
Duplicated interfaces	CAN2B
Control channels of MT	3
Method of managing channels of MT	PDM
Maximum power for each control channel of the MT, Wt	up to 2

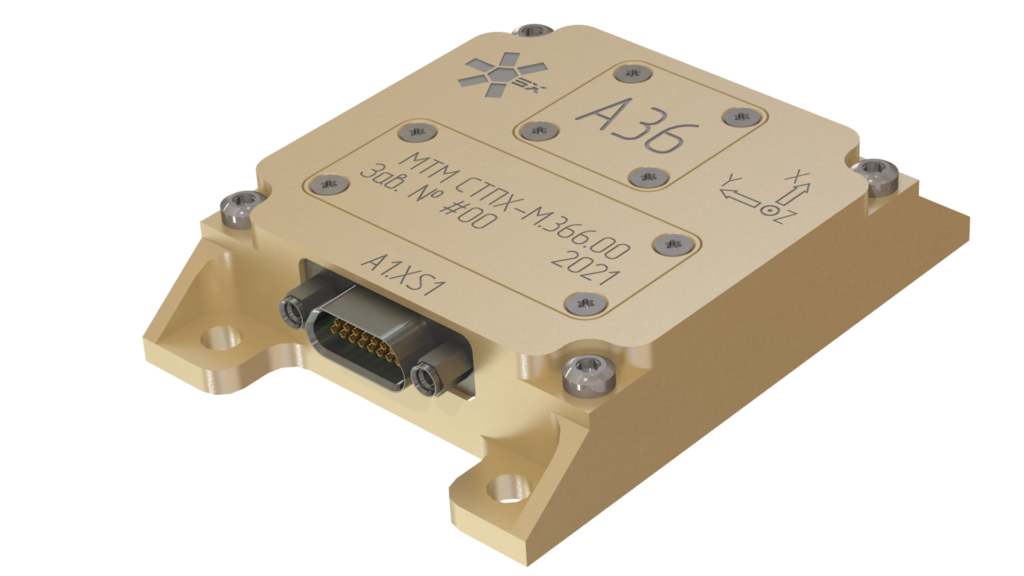

A triaxial anisotropic-magnetoresistive magnetometer (SX-SBOX-MAG-01) used in attitude determination alongside magnetic torquers for detumbling and momentum unloading.

1 6

Dimensions, mm	54 x 52 x 16 (without fasteners)
Mass, g	70
Power voltage, V	6-36 without galvanic isolation
Power consumption, Wt	0.8
Measurement range, nT	±100000
Measurement noise (σ), nT	100

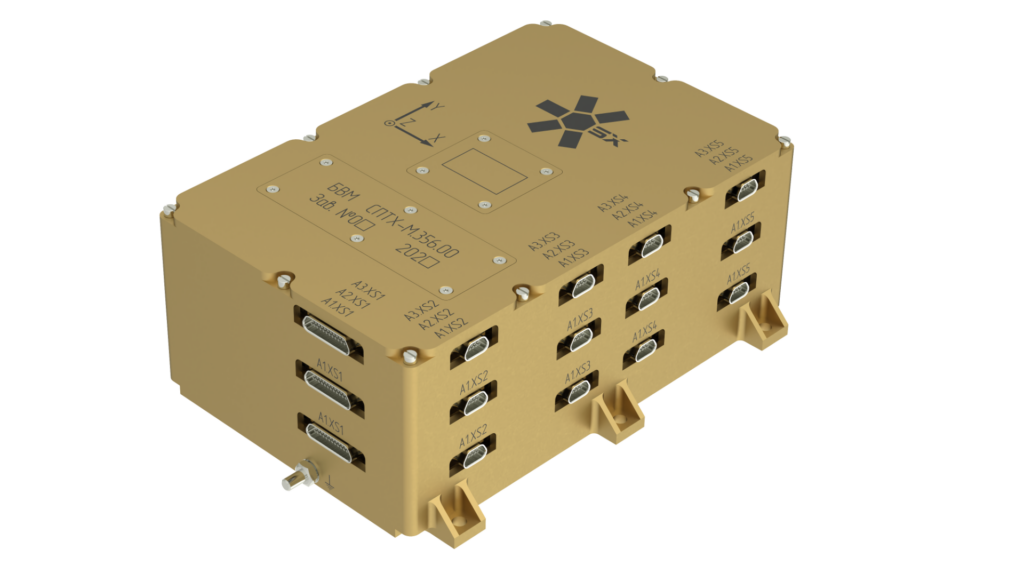

A radiation-tolerant, dual-redundant onboard computer (SX-SBOX-OBC-01) built on a SPARC v8 Leon4FT processor with CAN, SpaceWire and optional MIL-STD-1553-like interfaces.

1 5

Dimensions, mm	171 x 111 x 51 (without fasteners)
Mass, kg	0.86
Power voltage, V	22-34, galvanic isolation 500V
Power consumption, Wt	up to 10
Duplicated interfaces	CAN2B, SpaceWire, MKO/MIL-STD-1553-like bus (optional)

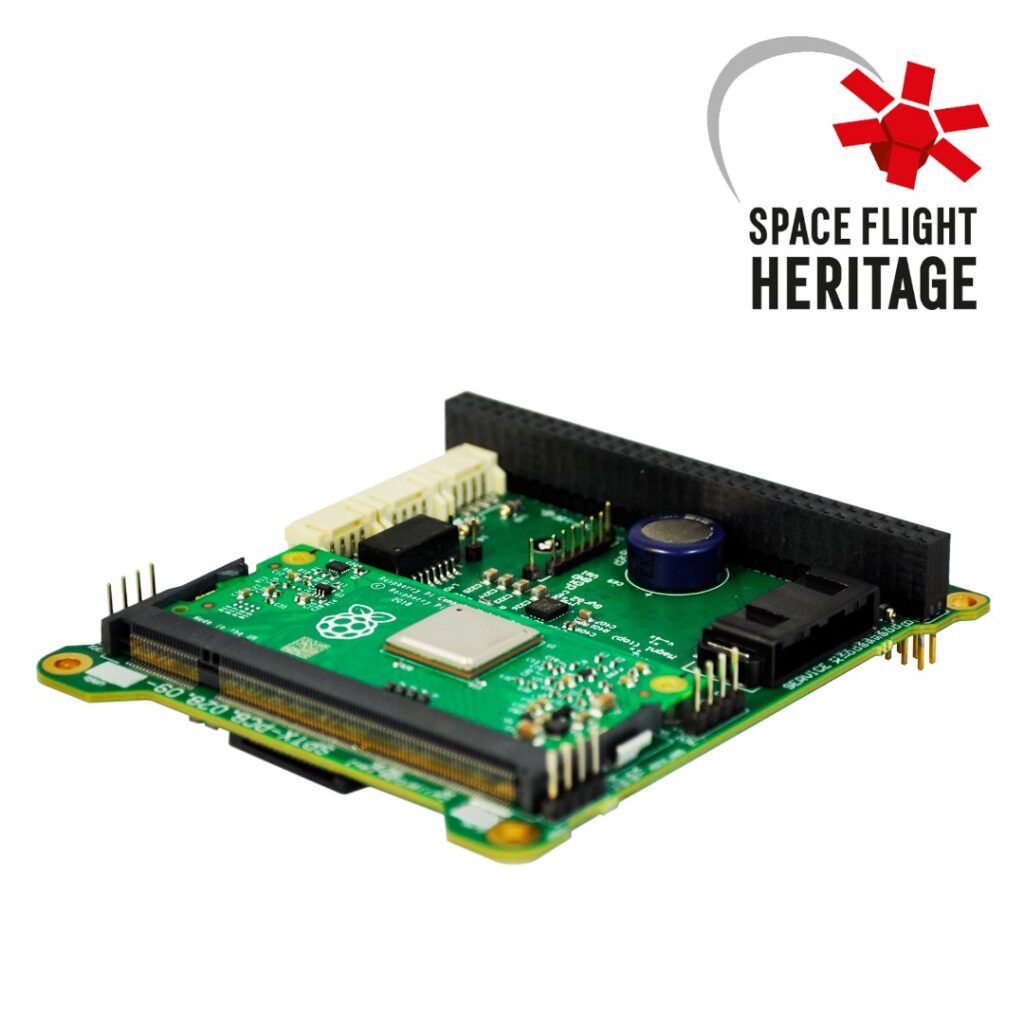

A Raspberry Pi Compute Module carrier board (SXC-MB-04-ADC) integrating an ADCS controller, gyroscope/magnetometer sensors, coil driver and power switching for CubeSats.

1 29

Model	SPUTNIX SXC-MB-04-ADC
Feature	Flexible architecture, all devices on CAN bus interconnect
Feature	Raspberry Compute Module CM3/CM3+
Feature	Sensors on CAN bus (magnetometer, attitude rate sensor, temperature, voltages, currents)
Feature	EM torquer driver
Feature	On-board ADCS controller
Feature	Low-power board-managing MCU with autonomous detumbling mode
Feature	Bootloaders with in-flight firmware update
Configuration	Removable WiFi module
Configuration	Raspberry CM3 or CM3+ (default)
Dimensions	84 x 94 x 19 mm (±0.2mm)
Mass (w/o modules)	55 ± 3 g
Supply voltage	5..12 V
Power consumption, max	<0.25W (sensors only: ARS, magnetometer, MCU), <0.7W (ADCS controller + onboard sensors), <1.5W (sensors and RPi w/o WiFi)
Available power supply	5V output bus up to 100 mA for USB payloads
Data interfaces	CAN2.0B
Raspberry	Camera I/F, UART, I2C, SPI (2 CS), USB-HS, 10Mbit Ethernet
Debug	Raspberry removable WiFi, USB, video output
Raspberry CM3 hardware	not less than 8GB Flash (up to 32GB), 1GB SDRAM
Raspberry CM3 software	API for CAN bus, code samples, program loader
Low-power MCU	attitude rate sensor, magnetometers, EM-torquer driver, detumbling mode, bootloader
ADCS MCU	ADCS control, bootloader
Power switch	3 channels up to 600mA each
EM torquer driver	3 channels up to 500mA each
Self telemetry	power voltages/currents, coil voltages/currents, magnetometer, angular velocity, temperature
Operating temperature range	-30...+50°C (0..+50°C recommended for Raspberry)
Storage temperature	-40...+60°C
Mechanical vibration	10g (request full test report)
Mechanical shock	50g (request full test report)

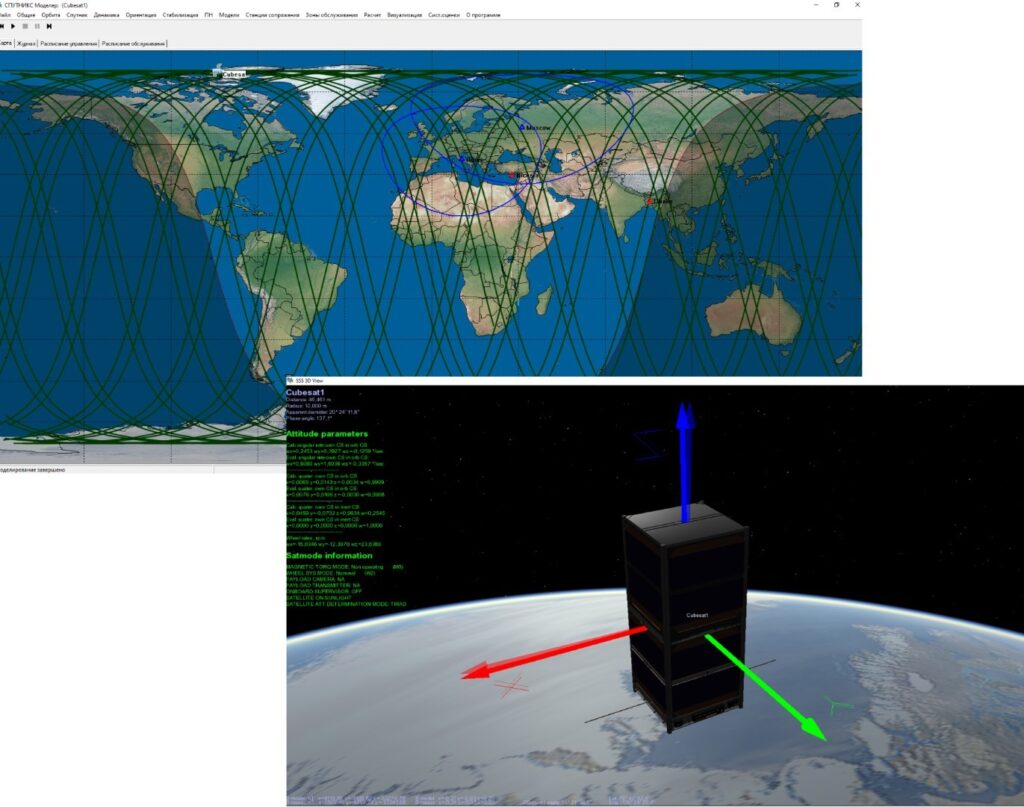

The flight software (RTEMS-based) for SPUTNIX's onboard computer complex, implementing telemetry/telecommand, ADCS algorithms and device management per ECSS/CCSDS standards.

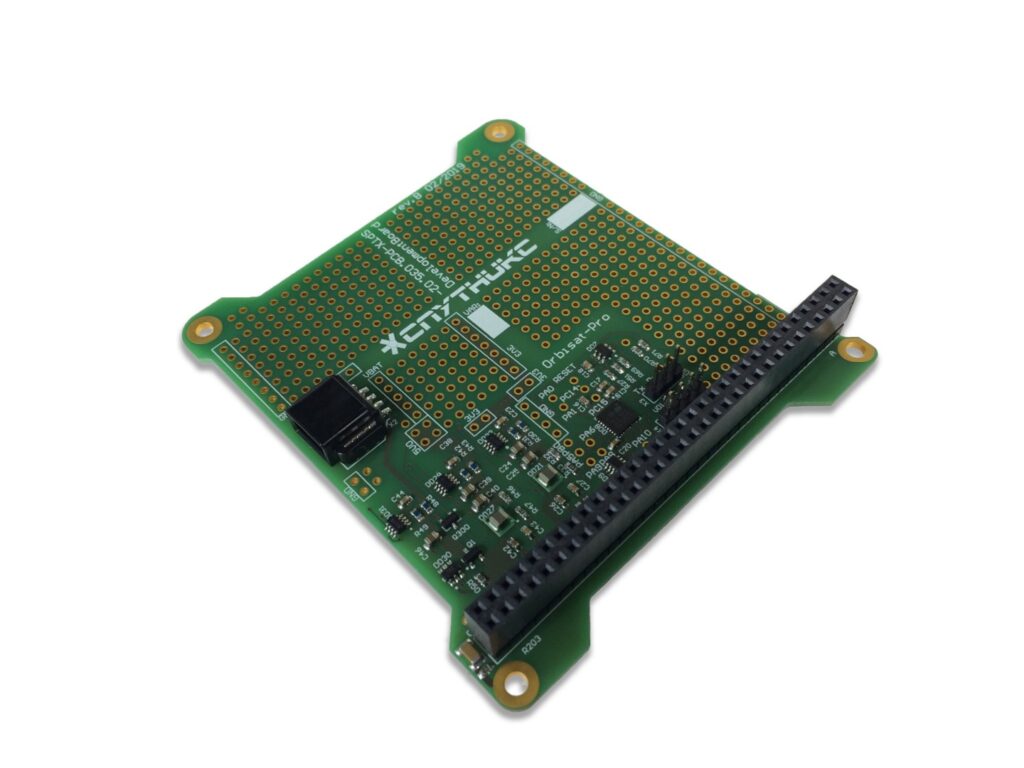

A PC/104-compatible breadboard carrier for developing payloads and other systems that need access to the satellite's CAN bus.

1 8

Model	SPUTNIX SXC-MBB-03
Feature	approved MCU with CAN bus design
Feature	user area with 2.54mm pitch
Feature	controllable power system for user area
Feature	board schematic provided
Feature	firmware source files available
Feature	bootloader available
Configuration option	firmware source files

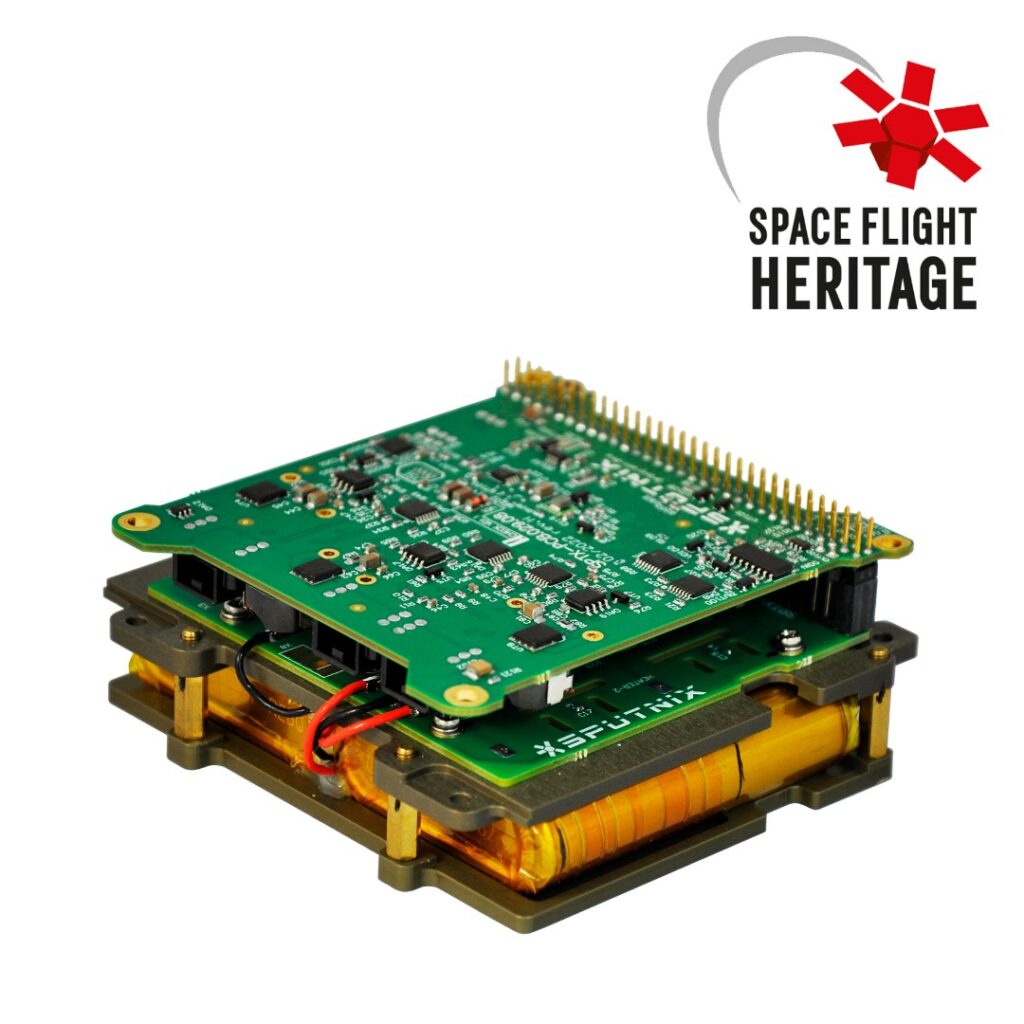

A two-module CubeSat EPS (SXC-PSS-03) consisting of a power system controller (SXC-PSU-03) and battery module (SXC-BAT-03) for solar power collection, storage, and distribution.

1 34

SXC-PSU-03 Dimensions	98.4 x 96 x 19 mm (±0.2mm)
SXC-PSU-03 Mass	20 ± 2 g
Solar panels channels	3
Solar panel type	GaAs, Si
Solar panel voltage	3.5..5.5V
Maximum solar panel current per channel	1500 mA
Maximum summary solar panels current	3000 mA
System bus voltage	8V (from solar/charger), 6.0V-8.4V (from battery)
Output channels	5
Output channel maximum power	1500 mA default (up to 4000 mA)
Summary output current	5000 mA
Battery type	Li-Ion
Battery voltage	2S
Charge voltage	4.5-5.5 V
Charge current limit	<1.5A (default)
Power consumption, max (without solar power)	<0.2 W
RBF switch	Two separate RBF connectors, separate disconnectable RTC ground
Data interfaces	CAN2.0B 1Mbit/s
Data protocol	UniCAN (Sputnix)
Discrete hardware watchdog period	25h (typical)
Telemetry	Input power voltages/currents, battery voltage/current, output channel currents, temperature
Operating temperature range	-30...+50°C
Storage temperature	-40...+60°C
Mechanical vibration	10g (request full test report)
Mechanical shock	50g (request full test report)
SXC-BAT-03 Dimensions (w/o PC104 connector)	95 x 97 x 34 mm (±0.2mm, ±1mm for Z)
SXC-BAT-03 Mass	360g
SXC-BAT-03 Interfaces	PC104, RBF connector
SXC-BAT-03 Battery type	Li-Ion
SXC-BAT-03 Battery voltage	2S (5.0V-8.5V)
SXC-BAT-03 Capacity	8 Ah (not less than 32 Wh)
SXC-BAT-03 Current protection limit	5.0 A (typ.)
SXC-BAT-03 Voltage protection limits	5.0V, 8.5V
SXC-BAT-03 Telemetry	Voltage, temperature

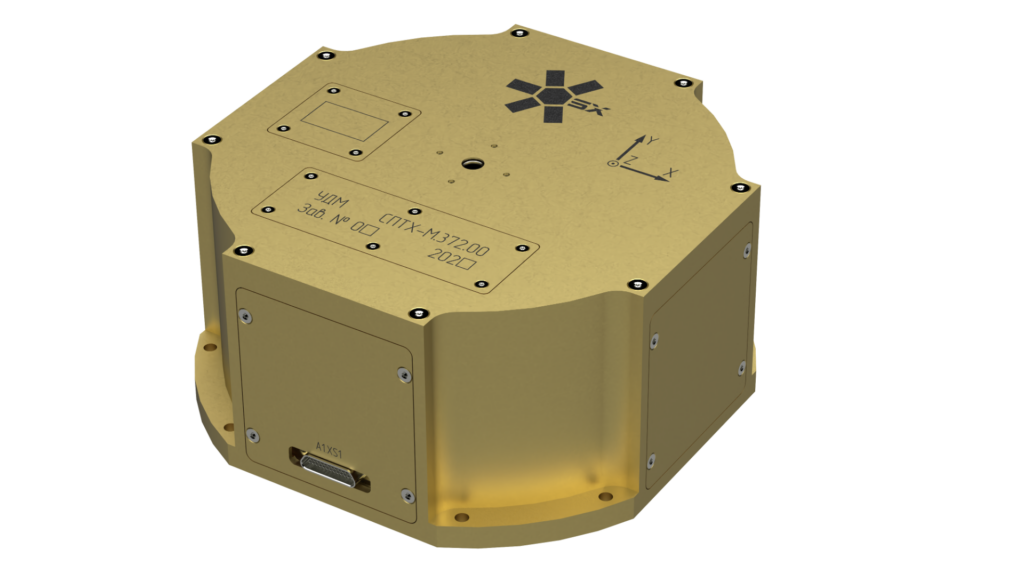

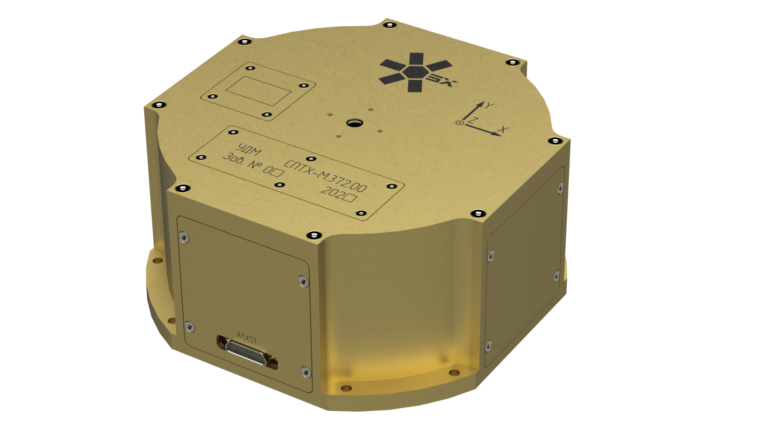

A control flywheel motor (CFM, SX-SBOX-RWH-50-2.0-01) generating control torque via rotor acceleration/deceleration for larger satellite platforms.

1 8

Dimensions, mm	160 x 160 x 80 (without fasteners)
Mass, kg	3.2
Power voltage, V	22-34 (without galvanic isolation)
Peak power consumption, Wt	43
Power consumption, Wt	10
Duplicated interfaces	CAN2B
Maximum control torque, Nmax, Nm	0.05
Maximum kinetic moment, hmax, Nms	2

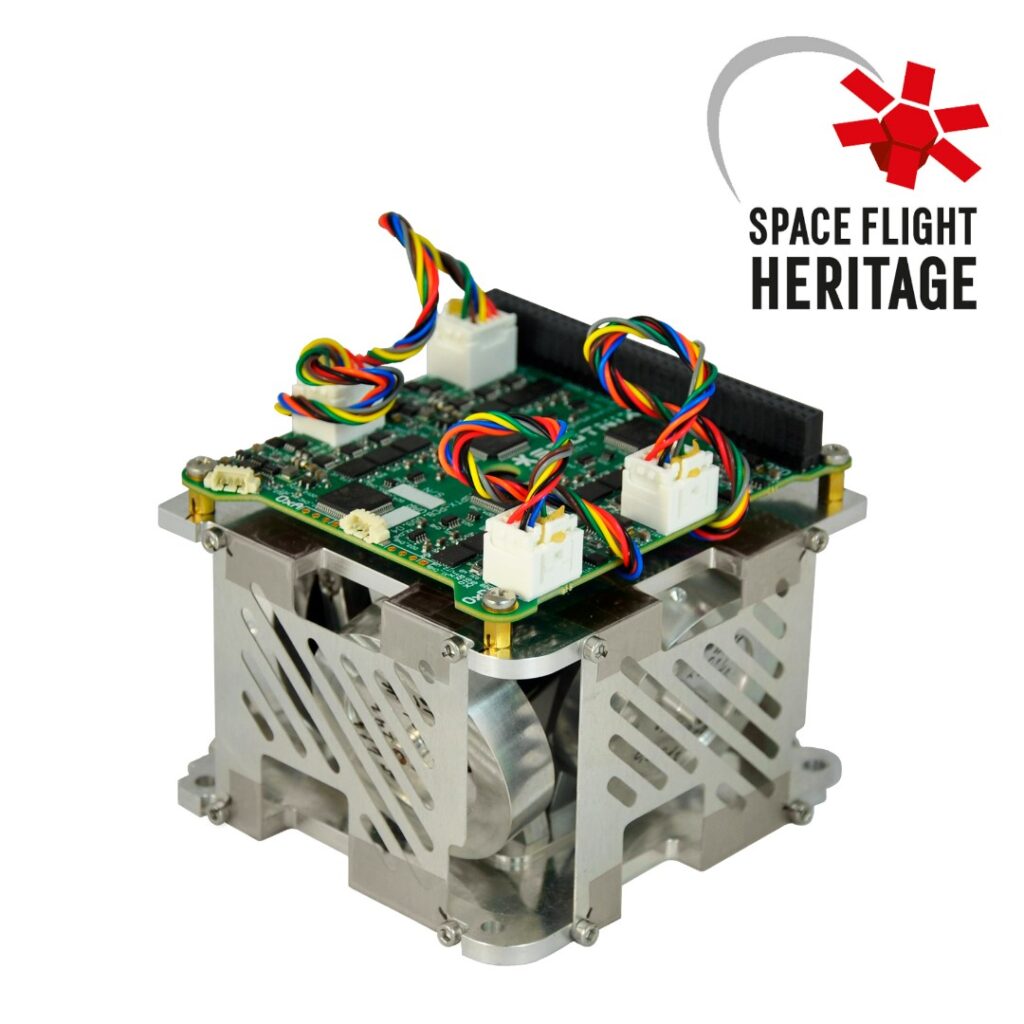

A 4-flywheel reaction wheel module (SXC-FW4-02) for CubeSat 3-axis attitude control, integrating drivers and control electronics on a single PC/104 card.

1 30

Model	SPUTNIX SXC-FW4-02
Feature	Complete 3-axis angular rate actuators for CubeSat satellite
Feature	Easily integrates with SPUTNIX platforms
Feature	Four brushless DC motors with vacuum-rated bearings
Feature	Wide power supply range
Feature	Momentum and current control algorithms
Feature	Voltage, current and temperature sensors for each motor
Feature	CAN interface for each separate driver
Feature	Rich telemetry and commands protocol
Feature	Bootloader with in-flight firmware update
Configuration	Increased maximum rotation speed and momentum
Configuration	CAN bus data rate
Dimensions (w/o PC104 connector)	97.5 x 97.5 x 80 mm (±1mm)
Mass	580 ± 20 g
Supply voltage	5..12V (up to 15V on demand)
Power consumption at 0 rpm	<0.8 W (all 4 motors at 0 rpm)
Power consumption at maximum	<12 W (all 4 motors at 5000 rpm)
Peak current consumption	up to 1.4 A per motor (0 to 5000 rpm)
Data interfaces	CAN2.0B 1Mbit/s
Data protocol	UniCAN (Sputnix)
Motor speed range	±5000 RPM (can be increased on demand)
Speed control accuracy	<10 RPM
Max torque (X/Y/Z projections)	not less than 8.8/8.8/4.5 mNm (can be increased to 22.0/22.0/11.2 mNm on demand)
Full torque (@5000 RPM, X/Y/Z)	±14.5/14.5/7.7 mNms (can be increased to ±33.5/33.5/19.2 mNms on demand)
Self telemetry	For each motor - rpm, torque, current, voltage
Operating environment	air, vacuum
Operating temperature range	-30...+50°C
Storage temperature	-40..+60°C
Mechanical vibration	10g (request full test report)
Mechanical shock	50g (request full test report)

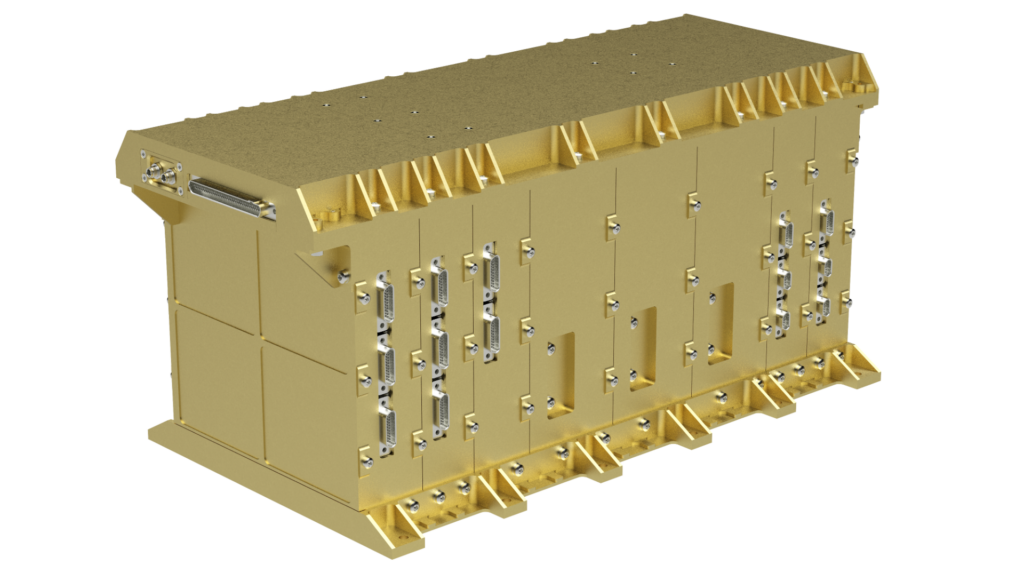

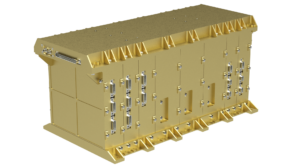

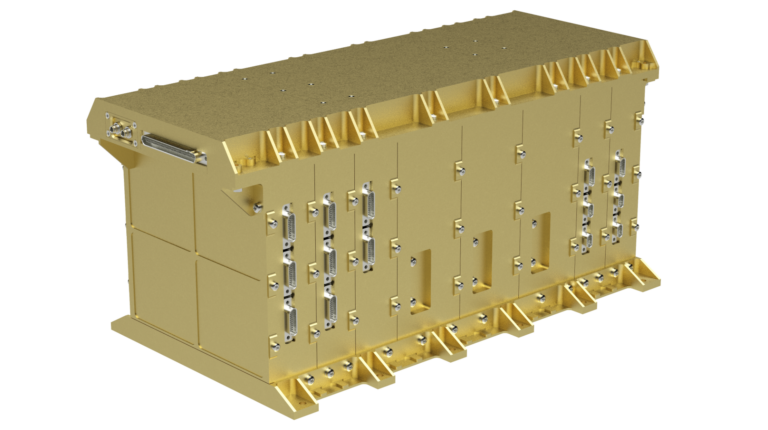

The EPS regulation and control equipment (RCE) that manages battery charging/discharging and power distribution together with solar and storage batteries.

2 7

Dimensions, mm	306 x 161 x 140 (without fasteners)
Mass, kg	7
Power voltage, V	22-34
Power consumption, Wt	10
Duplicated interfaces	CAN2B, RS485, SpaceWire
Redundant galvanically separated stabilized subscriber power bus	27V, ECSS-E-ST-20-20C
Redundant unstabilized subscriber power bus	27V, ECSS-E-ST-20-20C

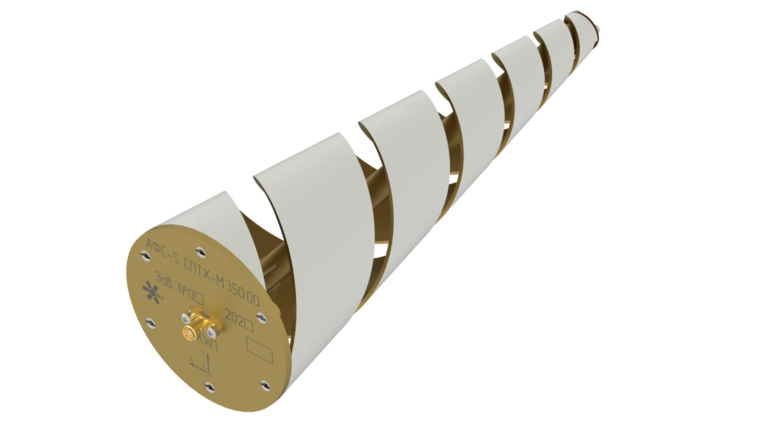

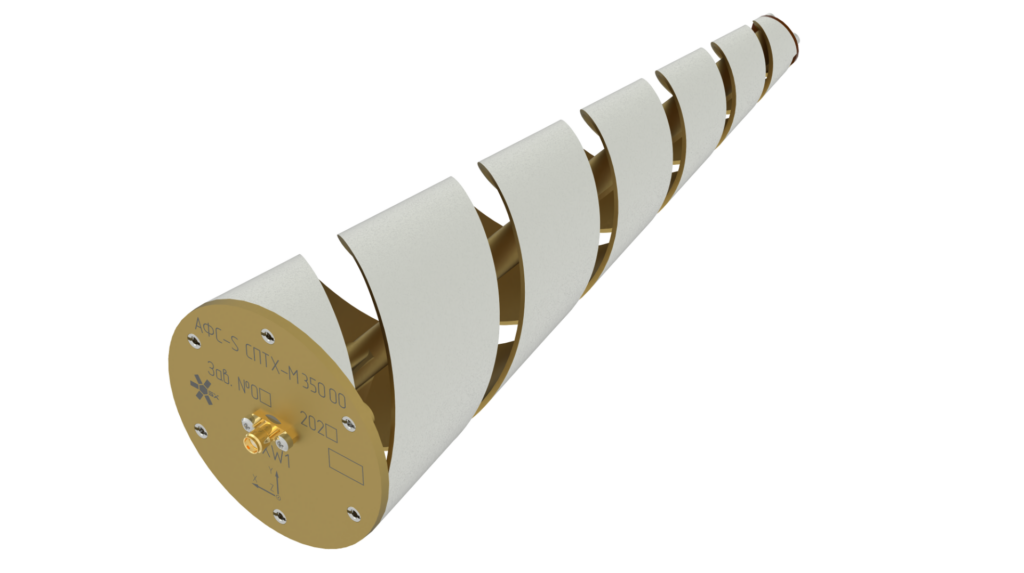

A lightweight, 3D-metal-printed two-way spiral S-band antenna for spacecraft command/telemetry radio links.

1 8

Antenna Type	Two-way spiral
Operating frequency range	2000-2290 MHz
Gain	at least 4 dB
Standing wave voltage coefficient	no more than 1.65
Type of polarization	Circular, RHCP
Dimensions	80 x 80 x 235 mm
Mass	190 g
Width of radiation pattern at minus 3 dB level	at least 155 degrees

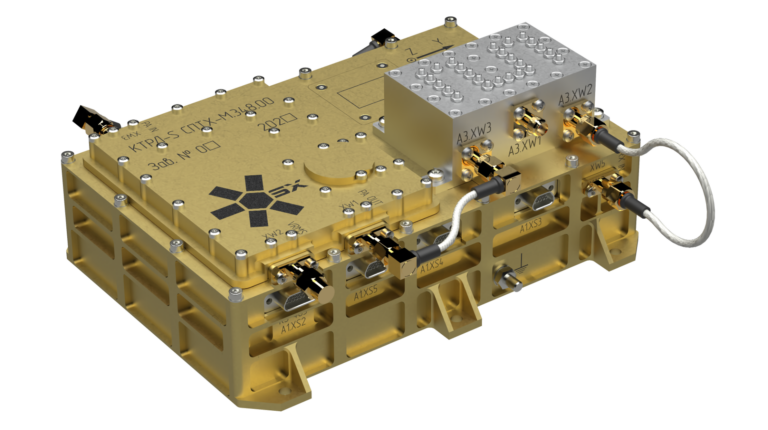

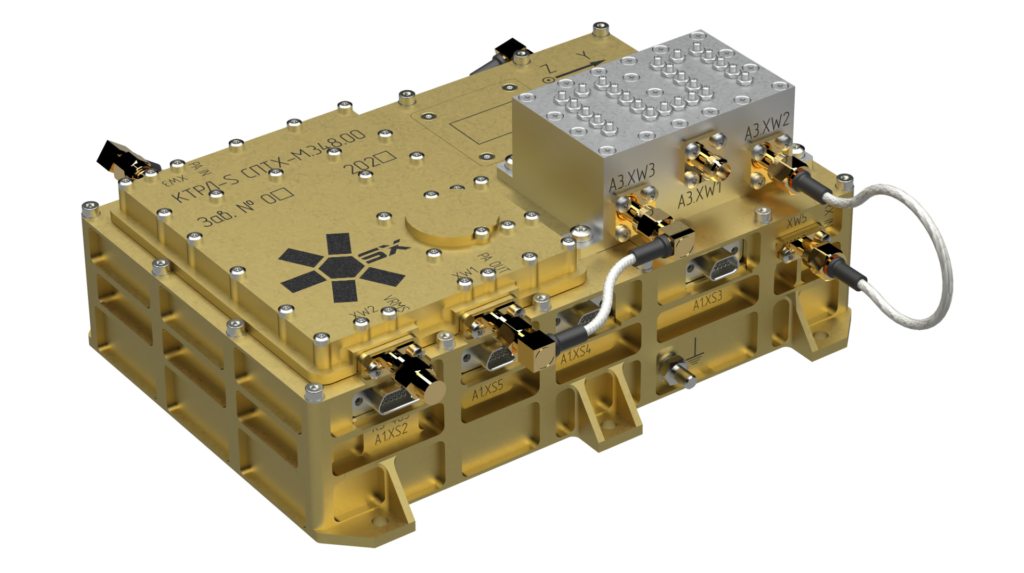

A full-duplex S-band command-telemetry radio link for high-speed communication with ground stations and inter-satellite links.

1 15

Dimensions, mm	117 x 111 x 48 (without fasteners and diplexer)
Mass, kg	0.85 (without diplexer)
Power voltage, V	22-34, galvanic isolation 500V
Power consumption, Wt	22 (reception + transmission), 3 (reception)
Duplicated interfaces	CAN2B, SpaceWire, RS-485, Ethernet
Operating mode	Full duplex
Operating frequency range reception, MHz	2025-2110
Operating frequency range transmission, MHz	2200-2290
Output power level, Wt	5
Symbol data transfer rate, Mbps	0.1-10
Coding	LDPC NASA C2 (7/8)
Modulation	BPSK, QPSK, 8-PSK
Protocols	CCSDS 732.1-B-1, 131.0-B-3, 232.1-B-2
Crypto protection	AES-128/256
Built-in ROM, MB	64

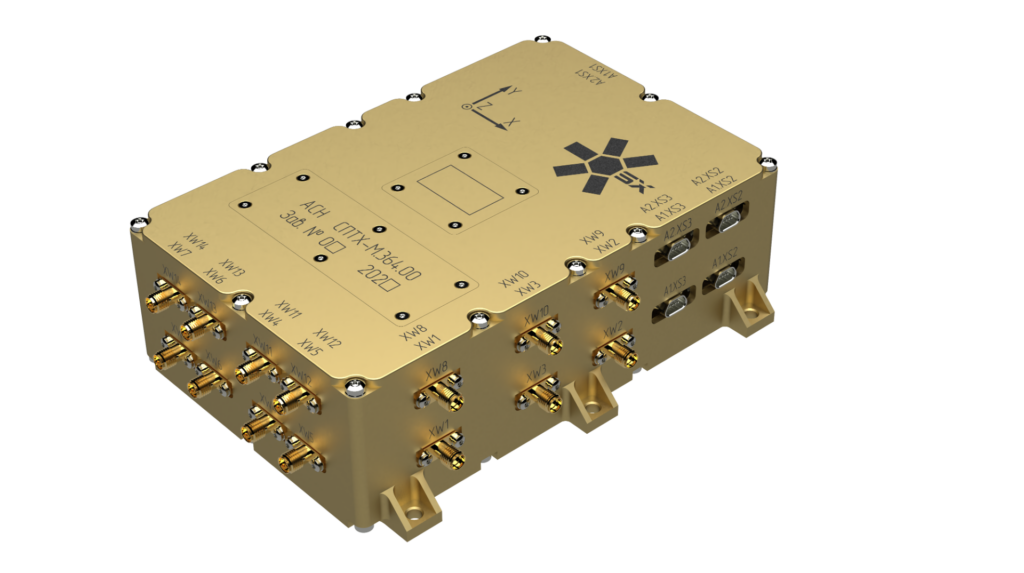

A GNSS receiver unit (SX-SBOX-GNSS-01) providing precision position, velocity and time synchronization for the spacecraft.

1 8

Dimensions, mm	171 x 111 x 51 (without fasteners)
Mass, kg	0.7
Power voltage, V	22-34, galvanic isolation 500V
Power consumption, Wt	2
Duplicated interfaces	CAN2B, SpaceWire
Coordinate determination error, m	10 (sigma)
Speed determination error, m/s	0.01
Time error	±10-8 s during battery life of at least 48 hours

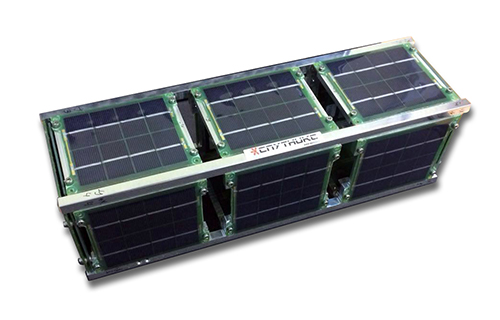

An assembled and manufacturer-verified 3U CubeSat engineering model (article SXC3-ADC) with silicon (Si) solar panels and triaxial ADCS, intended for adjustment of control and ADC algorithms.

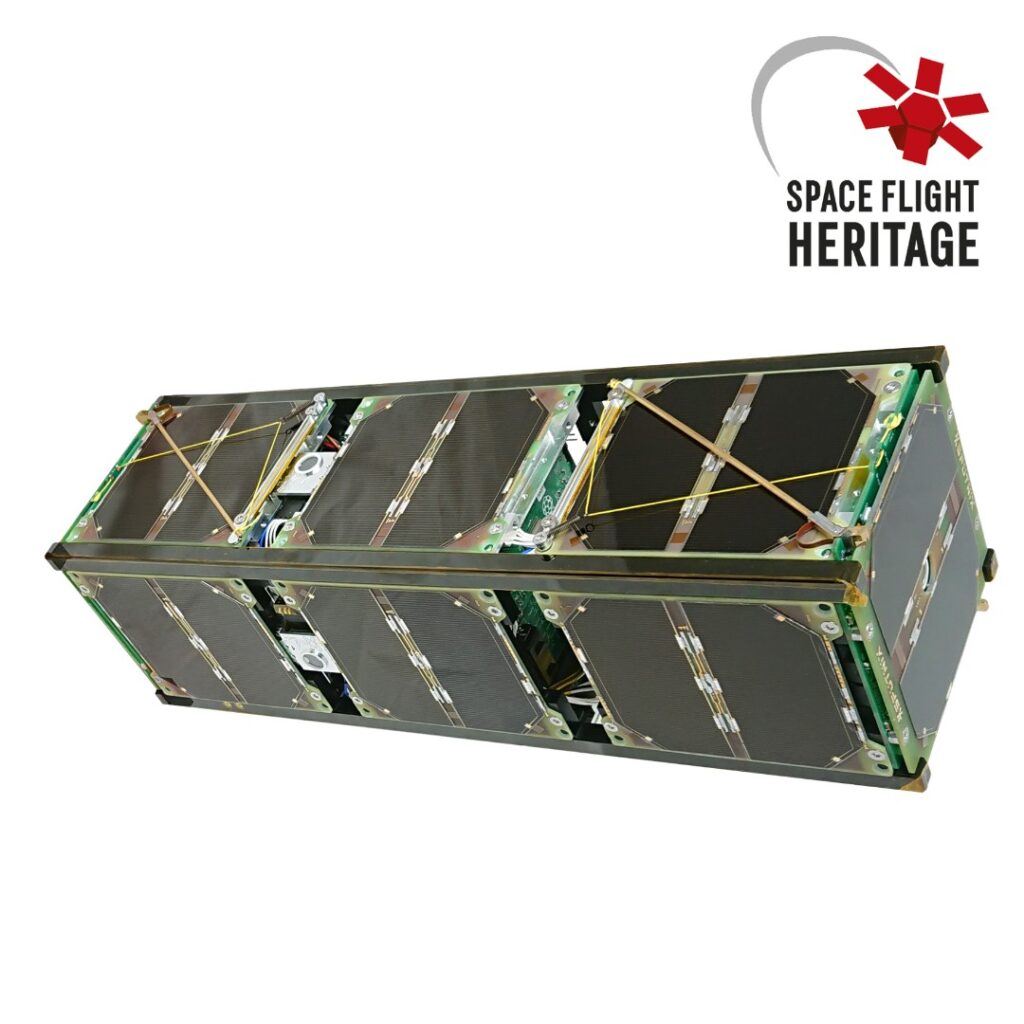

An assembled and manufacturer-verified 3U CubeSat platform (article SXC3) with silicon (Si) solar panels and basic B-DOT ADCS, intended primarily as a laboratory/educational model.

1 18

Mass assembled (w/o payload)	1.4 kg
Max mass allowed (w/ payload)	4 kg
Dimensions (springs pressed, antenna folded)	108x108x340.5 mm
Dimensions at rails	100x100x340.5 mm
Available volume for payload	not less than 80x70x140 mm
Output voltage	5V +-0.5 V
Output current	not more than 2A
Available average payload power on LEO	not more than 600 mW
Battery capacity	not less than 39 Wh
On-board interface	CAN2.0 B
Number of solar panels	14 pcs
Peak power per solar panel on LEO	not less than 0.9 W
Operating temperature range	-30...+60 C
Radio channel frequency	435-437 MHz, FM
Radio data rate	4800-56700 bit/s
Battery type	Li-Ion 2S 5000 mAh
ADCS algorithms	B-DOT
Sensors	Angular velocity sensor, magnetometer, temperature

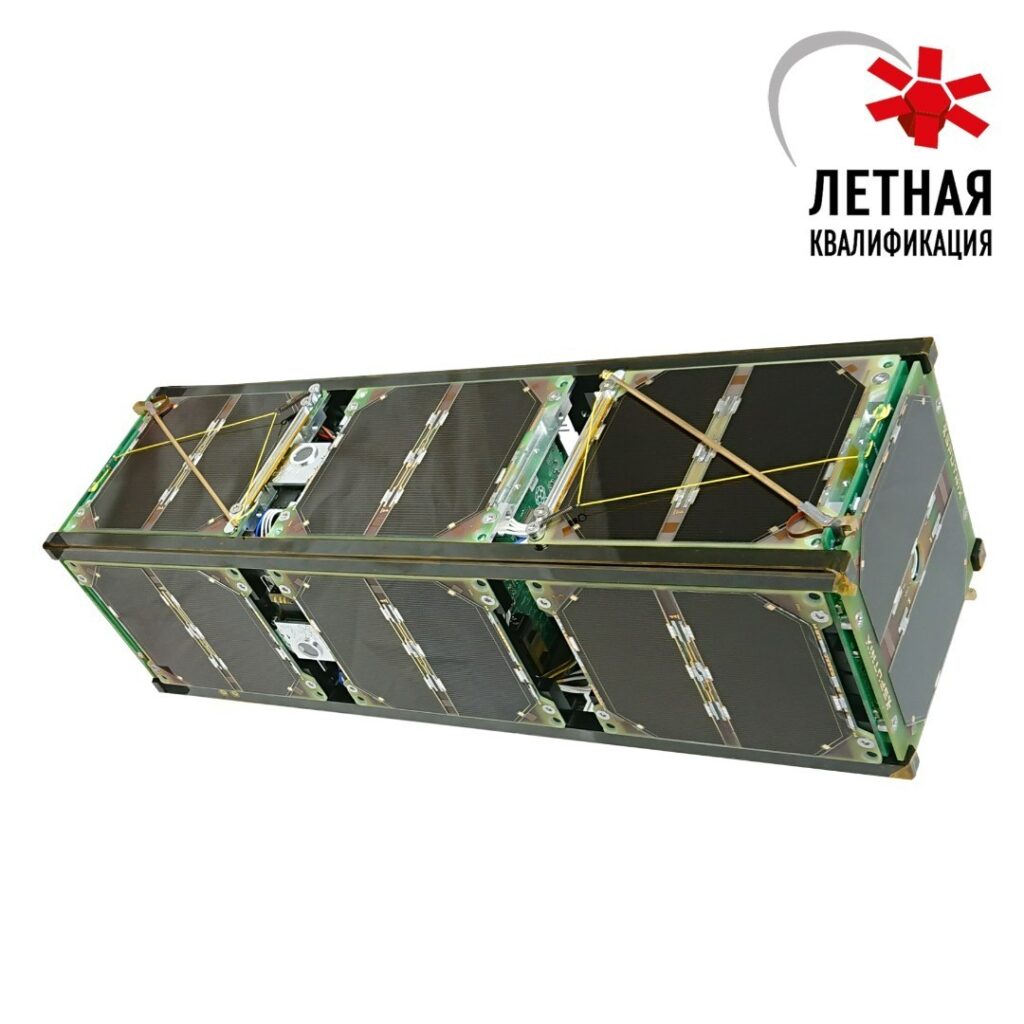

An assembled and manufacturer-verified 3U CubeSat platform (article SXC3-GA) with GaAs solar panels, ready for payload integration and suitable for actual low-Earth-orbit flight.

1 19

Mass assembled (w/o payload)	1.45 kg
Max mass allowed (w/ payload)	4 kg
Dimensions (springs pressed, antenna folded)	108x108x340.5 mm
Dimensions at rails	100x100x340.5 mm
Available volume for payload	not less than 80x70x140 mm
Output voltage	5V +-0.5 V
Output current	not more than 2A
Available average payload power on LEO	not more than 1500 mW
Battery capacity	not less than 39 Wh
On-board interface	CAN2.0 B
Number of solar panels	14 pcs
Peak power per solar panel on LEO	not less than 2 W
Operating temperature range	-30...+60 C
Radio channel frequency	435-437 MHz, FM
Radio channel protocol	AX.25, FEC
Radio data rate	4800-56700 bit/s
Battery type	Li-Ion 2S 5000 mAh
Battery rated voltage	7.4 V
Max battery charging current	5A

An assembled and manufacturer-verified 3U CubeSat platform (article SXC3-GA-ADC-XB) with GaAs solar panels, triaxial ADCS, and an X-band transmitter with antenna, suitable for laboratory use and low-Earth-orbit flight requiring high-speed downlink.

An assembled and manufacturer-verified 3U CubeSat platform (article SXC3-GA-ADC) with GaAs solar panels and a triaxial ADCS with reaction wheels and sun sensors, suitable for laboratory use and low-Earth-orbit flight.

1 14

Mass assembled (w/o payload)	1.45 kg
Max mass allowed (w/ payload)	4 kg
Dimensions (springs pressed, antenna folded)	108x108x340.5 mm
Available volume for payload	not less than 80x70x140 mm
Output voltage	5V +-0.5 V
Available average payload power on LEO	not more than 1500 mW
Battery capacity	not less than 39 Wh
On-board interface	CAN2.0 B
Number of solar panels	14 pcs
Peak power per solar panel on LEO	not less than 2 W
Operating temperature range	-30...+60 C
Radio channel frequency	435-437 MHz, FM
Radio data rate	4800-56700 bit/s
Battery type	Li-Ion 2S 5000 mAh

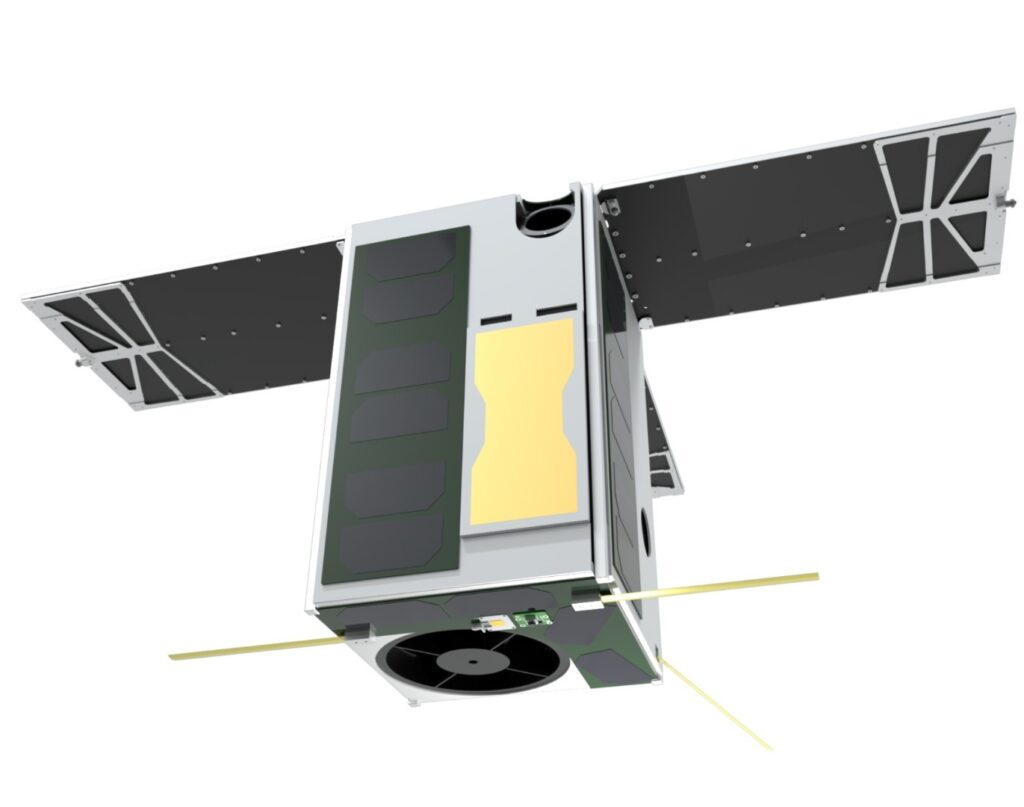

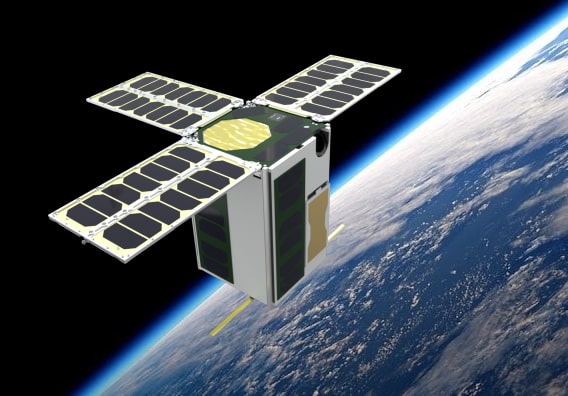

A universal, combinable 12U CubeSat platform with flexible redundant subsystem configuration, high-speed X-band downlink, and gas propulsion system, designed for launch in standard production containers.

1 16

Circular working orbit altitude	LEO to 600 km
Active period	not less than 1.5 years (up to 3)
Separation method	Standard container CubeSat 12U
Outer dimensions	226.3x226.3x366+-0.5 mm
Maximum mass	24 kg
Battery capacity	120 Wh
Service radio frequency	400-401 MHz
ADCS algorithms	B-DOT, sun orientation, nadir, point trace
Sensors	Star tracker, Sun sensors, GPS, Angular velocity sensor, Magnetometer
ADCS pointing accuracy	up to 0.1 deg
Propulsion system	gas PS correction
Accuracy of binding payload axis to geographic coordinates	not worse than 40 m
High frequency downlink frequency range	8-8.4 GHz
Data rate	up to 100 Mbit/s
Modulation	QPSK, 8PSK, 16APSK
Protocol	DVB-S2 - ETSI EN 302 307-1 v1.4.1

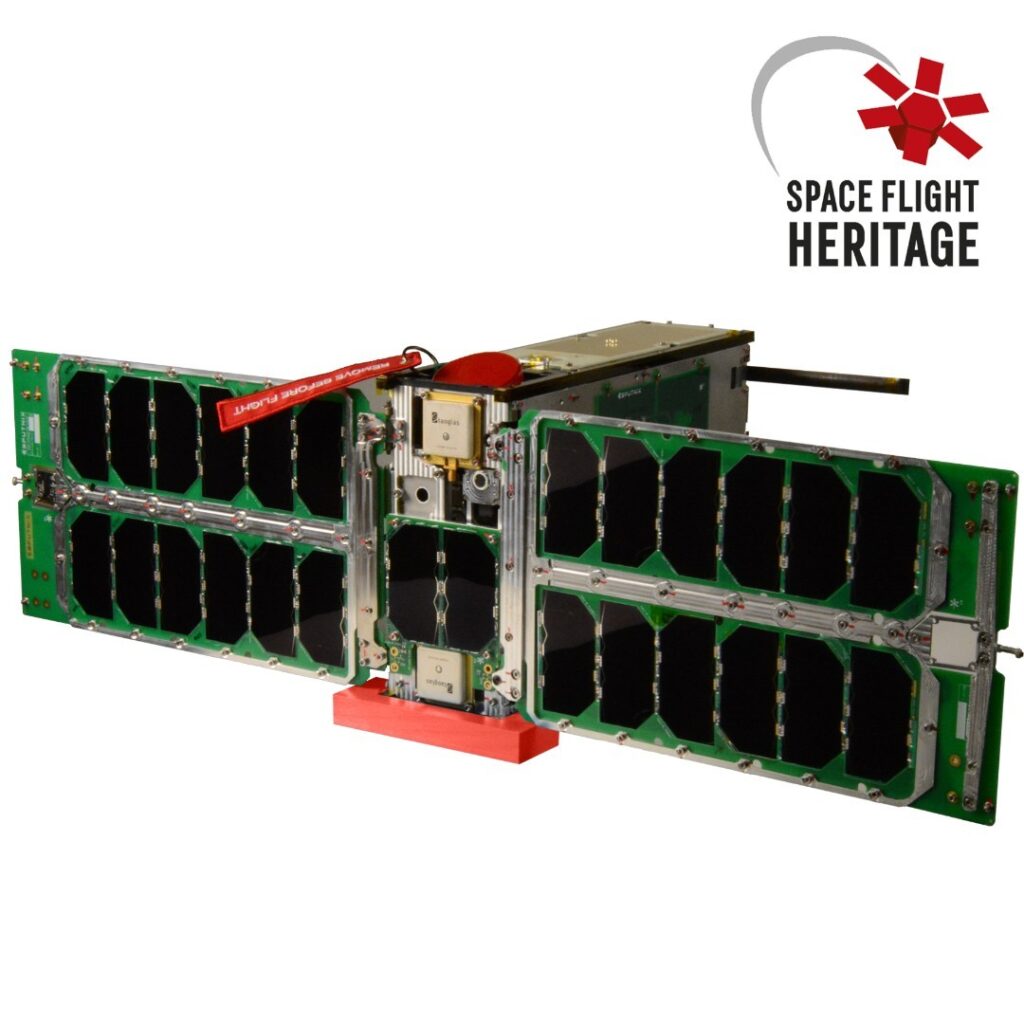

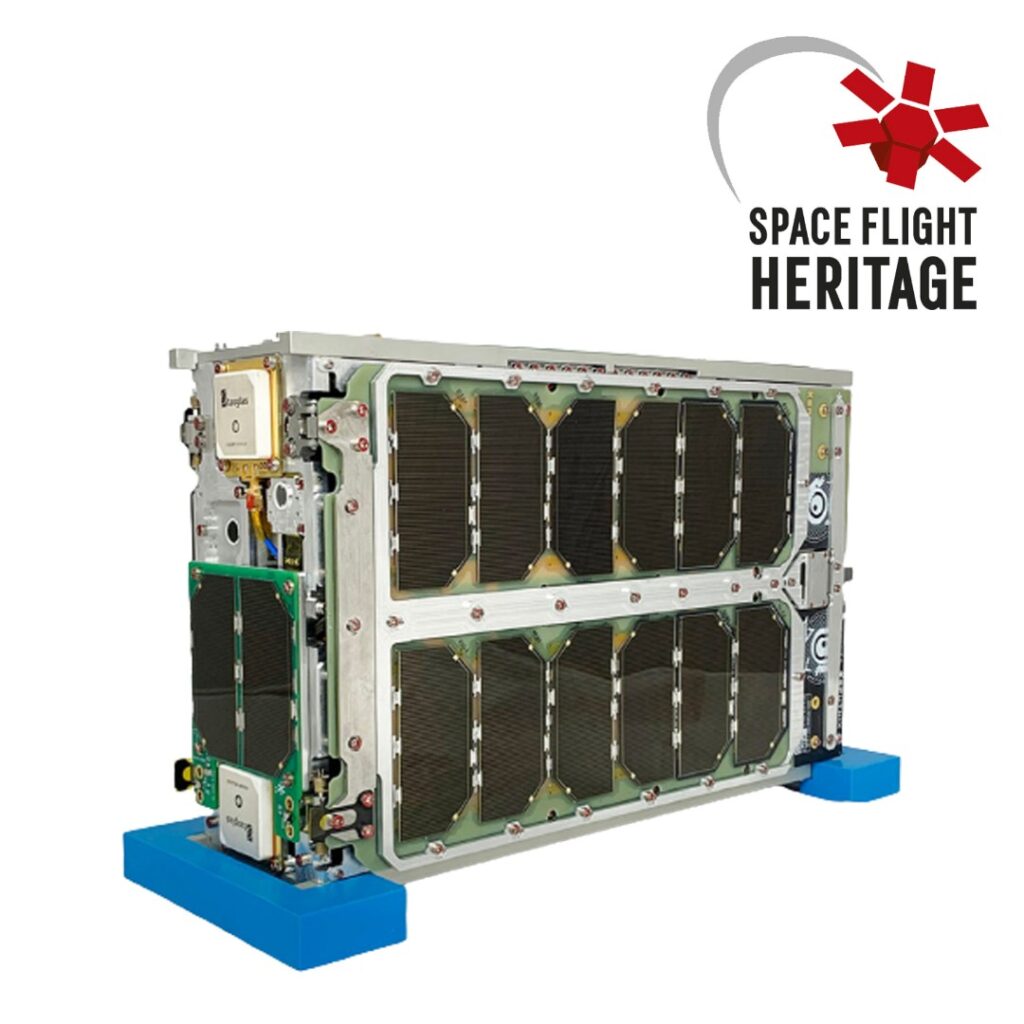

A mid-tier 6U CubeSat platform configuration of the SXC6 family with basic three-axial ADCS, allowing the spacecraft to be oriented in space via redundant subsystems.

1 17

Outer dimensions transport mode	118.6x228.6x366 mm
Outer dimensions deployed	118.6x228.6x820 mm
Mass (w/o payload)	5 kg
Maximum mass	12 kg
Battery capacity	78 Wh
Peak power per solar panel	not less than 35 W
Service radio frequency	435-438 or 400-401 MHz
Data rate	2400-57600 bps
ADCS algorithms	B-DOT, sun orientation, nadir, point trace
Sensors	Sun sensors, Angular velocity sensor, Magnetometer
ADCS pointing accuracy sunlit orbit	up to 1 deg
ADCS pointing stability sunlit orbit	up to 0.1 deg
ADCS pointing accuracy eclipse orbit	up to 10 deg
Onboard interface	CAN2.0B, SPUTNIX UniCAN
Average payload power per orbit	10 W
Maximum payload power	50 W
Payload volume	4U

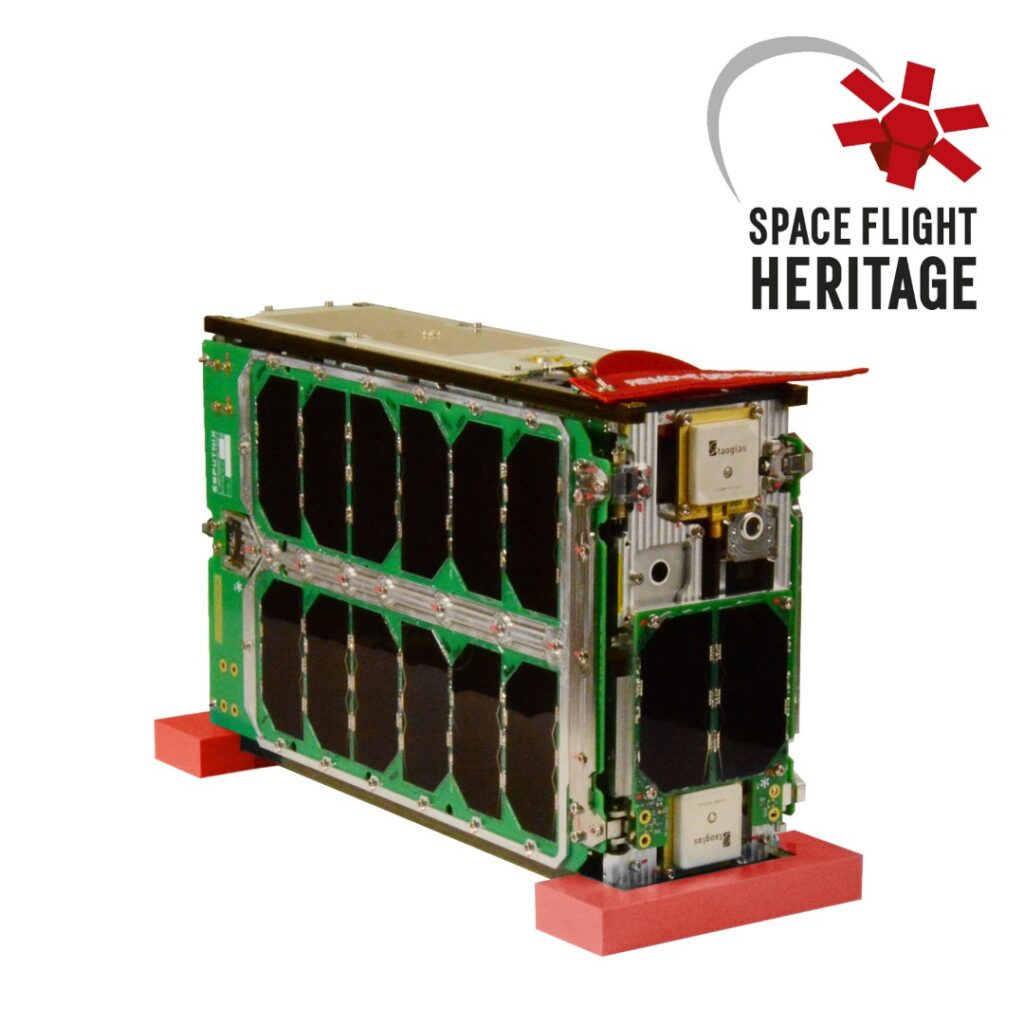

The simplest configuration of the SXC6 6U CubeSat platform, offering only basic service systems (power, UHF comms, electromagnetic damping) to maximize available payload volume.

1 20

Outer dimensions transport mode	118.6x228.6x366 mm
Rail dimensions	100+-0.15 x 100+-0.15 x 366+-0.5 mm
Mass (w/o payload)	3.4 kg
Maximum mass	12 kg
Power supply voltage	5+-0.5 V
Power consumption	3 A
Operating temperature range	-30...+60 C
Battery type	Li-Ion 2S
Battery capacity	78 Wh
Onboard bus voltage	6.0-8.4 V (7.4 nominal)
Peak power per solar panel	not less than 15 W
Service radio frequency	435-438 or 400-401 MHz
Transmitter power	not less than 30 dBm
Receiver sensitivity	not worse than -113 dBm
Data rate	2400-57600 bps
ADCS algorithms	B-DOT
Onboard interface	CAN2.0B, SPUTNIX UniCAN
Average payload power per orbit	4.5 W
Maximum payload power	60 W
Payload volume	5U

The maximum-capability 6U CubeSat platform configuration of the SXC6 family, fully equipped for remote sensing, astronomical observation, and high-speed X-band downlink.

1 16

Outer dimensions transport mode	118.6x228.6x366 mm
Outer dimensions deployed	118.6x228.6x820 mm
Mass (w/o payload)	5.9 kg
Maximum mass	12 kg
Battery capacity	78 Wh
Peak power per solar panel	not less than 35 W
ADCS algorithms	B-DOT, sun orientation, nadir, point trace
Sensors	Star tracker, Sun sensors, GPS, Angular velocity sensor, Magnetometer
ADCS pointing accuracy sunlit orbit	up to 0.1 deg
ADCS pointing stability sunlit orbit	up to 0.01 deg
Payload volume	3U
High frequency downlink frequency range	10.45-10.50 or 8.15-8.22 GHz
Output power	not less than 30 dBm
Data rate downlink	10 Mbit/s
Modulation	QPSK, 8PSK, 16APSK
Protocol	DVB-S2 - ETSI EN 302 307-1 v1.4.1

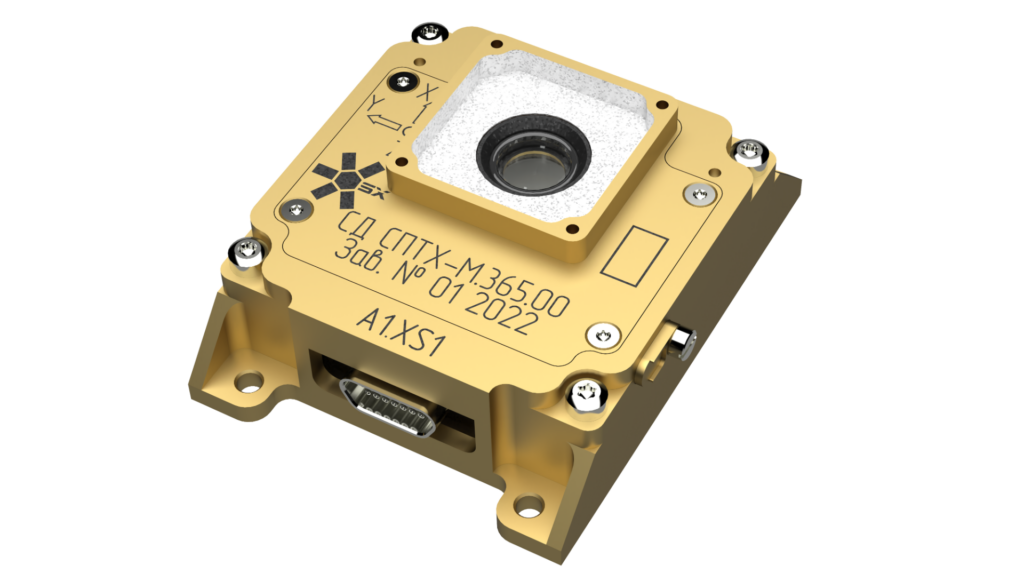

A compact sun sensor (SX-SBOX-SUNS-01) for the attitude control loop, with algorithms mitigating Earth-albedo glare, suitable for microsatellites and larger platforms.

1 7

Dimensions, mm	43 x 43 x 16 (without fasteners)
Mass, g	45
Power voltage, V	6-36 without galvanic isolation
Power consumption, Wt	0.4
Duplicated interfaces	CAN2B
Field of view (FoV)	half-angle cone 45°
Accuracy (sigma)	0.15°

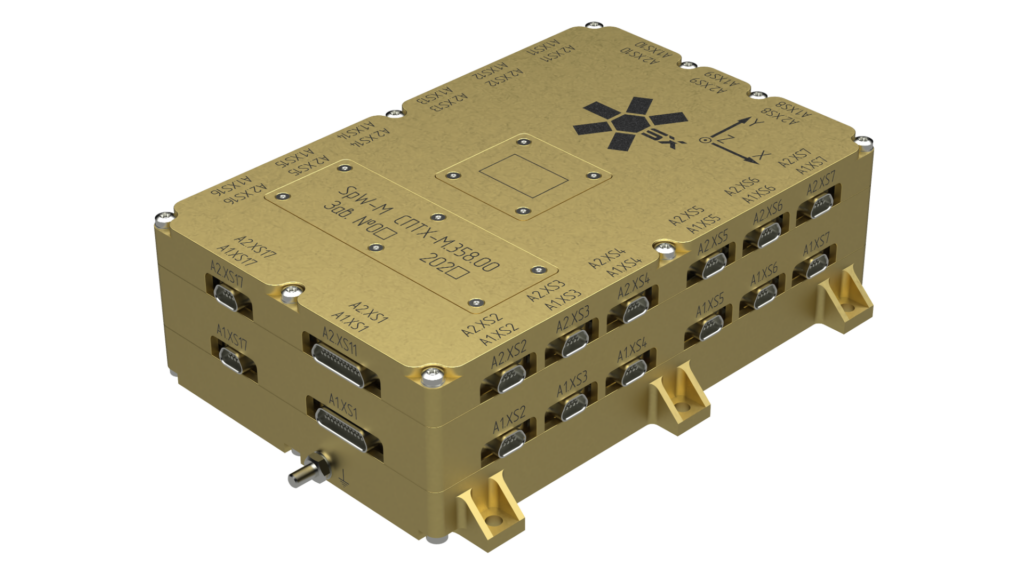

A redundant 16-port SpaceWire routing switch with built-in MRAM storage for on-board data networking of the onboard computer complex.

1 9

Dimensions, mm	117 x 111 x 51 (without fasteners)
Mass, kg	0.96
Power voltage, V	22-34, galvanic isolation 500V
Power consumption, Wt	4
Built-in memory, MB	8
Duplicated interfaces	CAN2B, SpaceWire
Number of ports for connection	up to 16
Exchange rate via SpaceWire, Mbps	up to 200
RMAP support	ECSS-E-ST-50-52C

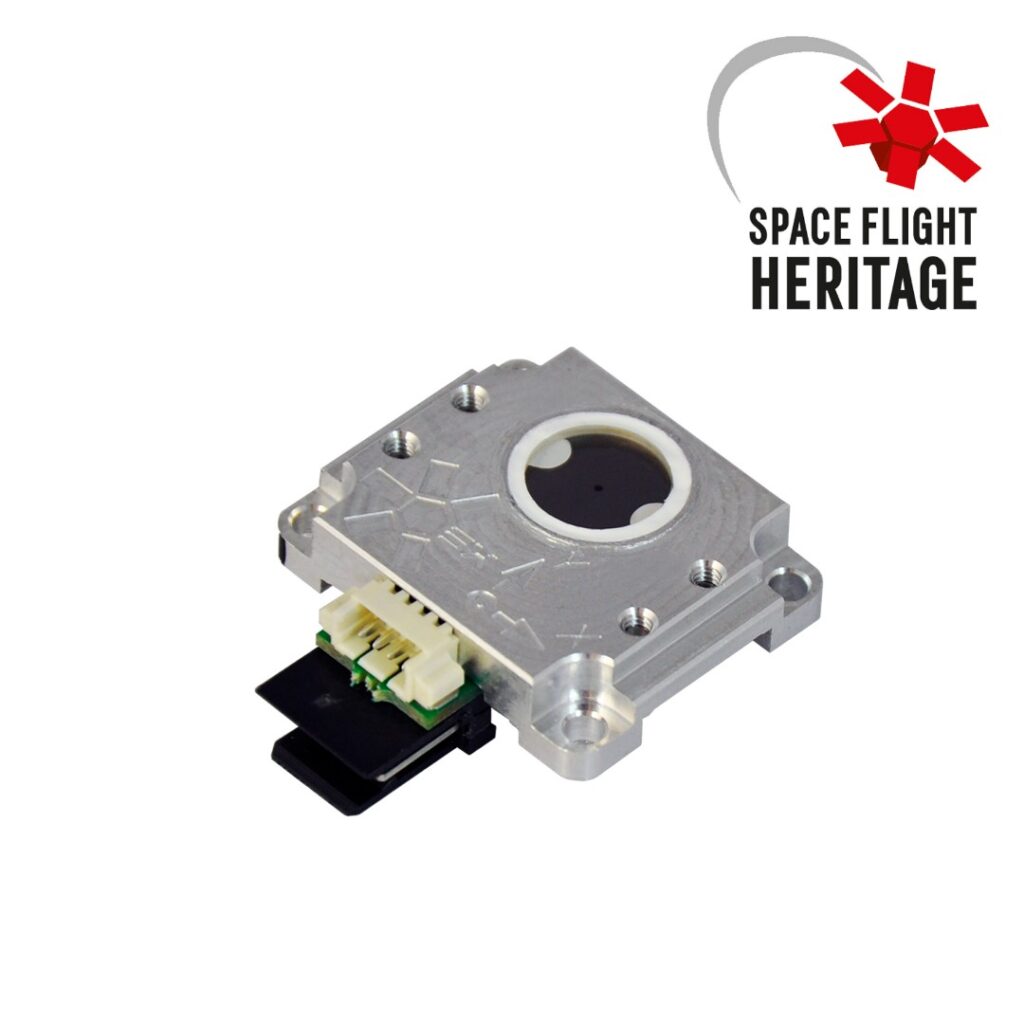

A compact, ultra-low-power two-axis digital CubeSat sun sensor (SXC-SD-01-3U) with factory calibration and CAN interface.

1 23

Model	SPUTNIX SXC-SD-01-3U
Feature	Mid-size satellites design in light and small package
Feature	Ultra-low power CAN device
Feature	Built-in DC converter for constant consumption
Configuration	Back cover option available
Configuration	Bus-like (66100411722) and point-to-point (653104131822) connector options
Configuration	CAN bus data rate
Configuration	Telemetry frequency
Dimensions	31.3 x 27.5 x 10.3 mm (±0.2mm, with 66100411722 connector)
Dimensions	31.3 x 27.5 x 8.6 mm (±0.2mm, with 653104131822 connector)
Mass	7 ± 1 g
Supply voltage	5..12V (up to 15V on demand)
Power consumption	30-50 mW (active with CAN output)
Data interface	CAN2.0B 1Mbit/s
Data protocol	UniCAN (Sputnix)
Field of view (FOV)	±60° (cone)
Accuracy	<0.3° (1σ, any angle within FOV)
Noise	<0.01°
Telemetry frequency	up to 20 Hz
Operating temperature range	-30...+50°C
Storage temperature	-40..+60°C
Mechanical vibration	10g (request full test report)
Mechanical shock	50g (request full test report)

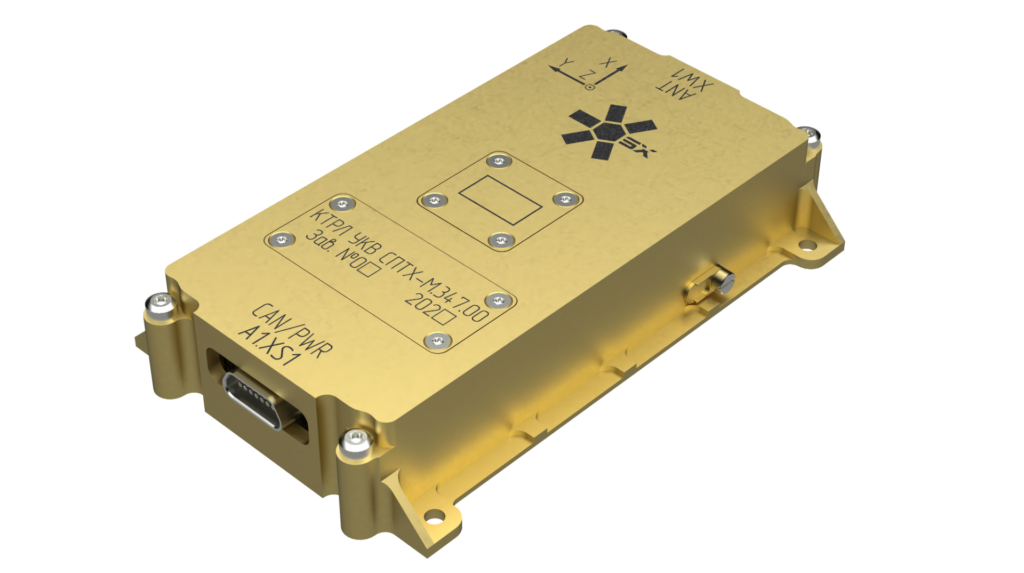

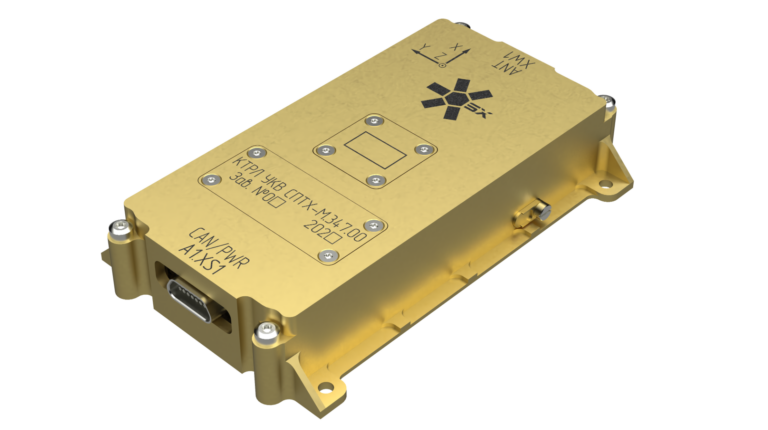

A half-duplex UHF-band transceiver providing telecommand/telemetry radio links between spacecraft and ground stations for the Pallada/SXC platform families.

1 11

Dimensions, mm	115 x 66 x 19 (without fasteners)
Mass, g	135
Power voltage, V	6-36 without galvanic isolation
Power consumption, Wt	20 (transmission), 1 (reception)
Operating mode	Half duplex
Duplicated interfaces	CAN2.0B
Channel data transfer rate, bit/sec	up to 19200
Data transfer protocol	AX.25, USP
Operating frequency range, MHz	435-438
Output power level, Wt	5
Receiving path sensitivity, dBm	minus 109

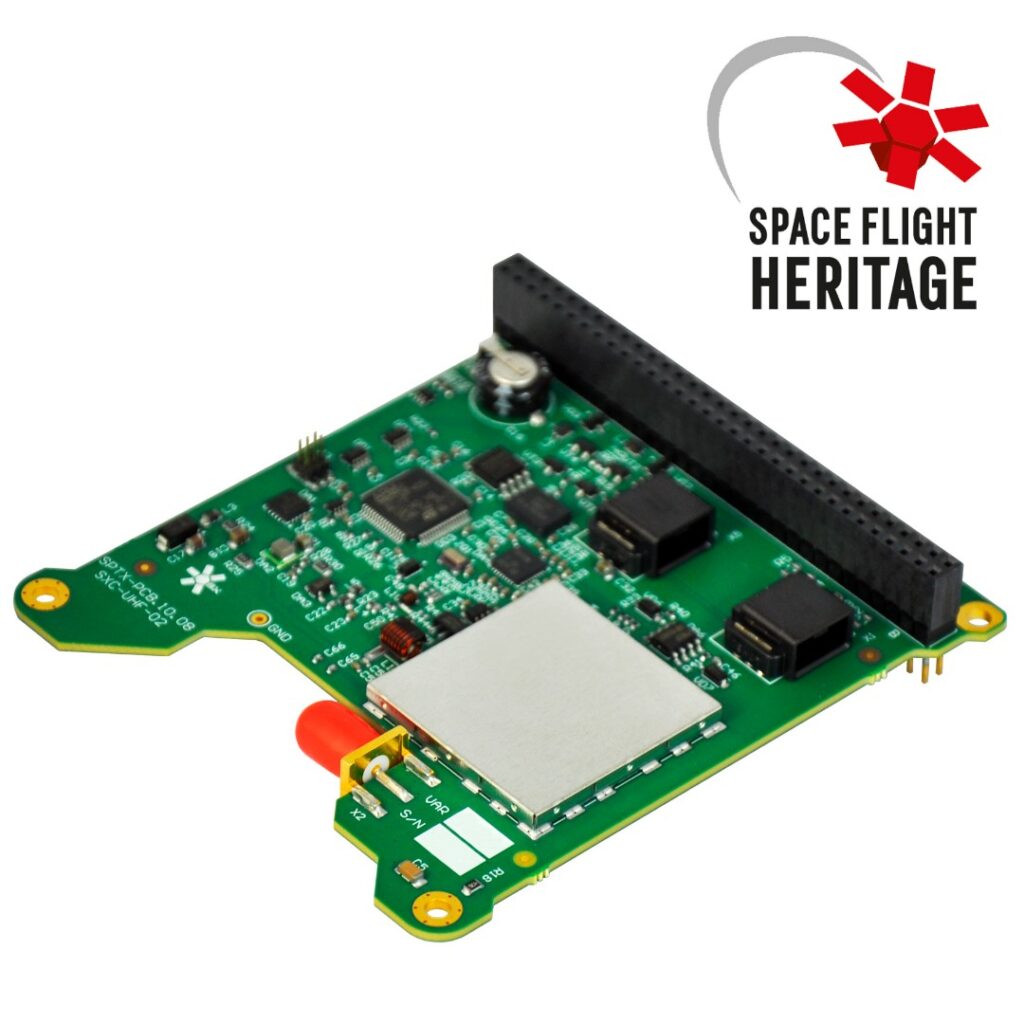

A single-board CubeSat UHF radio (SXC-UHF-02) for telemetry, telecommand and beacon transmission with in-flight reconfigurable parameters.

1 42

Model	SPUTNIX SXC-UHF-02
Feature	Half-duplex communication via single antenna
Feature	Single board radio for telemetry, telecommand and beacon
Feature	CAN command schedules execution and storage using ROM memory
Feature	In-flight reconfigurable beacon period, datarate, frequency, call sign etc.
Feature	In-flight firmware update via RF with backup
Feature	Hardware and software watchdogs
Feature	Customizable beacon message
Feature	Ground to board UniCAN routing
Feature	RTC with backup power
Feature	Rich telemetry
Feature	Fail-safe in-flight reconfiguration
Dimensions, mm	84 x 94 x 19
Mass, g	43
Supply voltage, V	6..8.4
Maximum power consumption in RX mode, W	0.4
Maximum power consumption in TX mode, W	5.0
Data interfaces	2xCAN2.0B, UART
Antenna interfaces	RF (SMA 50 Ohm)
Physical/datalink layer protocols in RF channel	AX.25 (G3RUH), USP (using FEC)
FEC type (USP mode)	Concatenated code + RS code (meets CCSDS 131/0-B-3)
Telemetry content	Temperatures of MCU and RF, voltage, current, forward/reflected power, RSSI, current time
Network Protocol support in RF/CAN	UniCAN
Additional features	SSTV image transmission, Morse code transmission, FM voice repeater (with second transceiver and antenna)
Operating frequency (option 435 MHz)	433-438 MHz
Operating frequency (option 401 MHz)	400.1-402 MHz
Operating frequency (option 145 MHz, Rx-only)	144-146 MHz
Maximum output power	33 dBm (for 7.4V input, factory-configurable)
Modulation type	GMSK
Raw (channel) data transfer rate	57600, 38400, 19200, 9600, 4800, 2400 bit/s
Receiver sensitivity, AX.25 mode	≤-114 dBm (for 9600 bitrate, BER≤10-4)
Receiver sensitivity, USP mode	≤-122 dBm (for 9600 bitrate, PER≤10-2)
RF frequency stability	≤0.5 ppm
RF frequency drift by aging (first year)	≤1.5 ppm
Timebase precision	≤5 ppm
Unwanted emissions in spurious domain	Meets ITU SM.329-12
Unwanted emissions in out-of-band domain	Meets ITU SM.1541-4, SFCG 21-2R4, NTIA
Onboard flash memory for user data	16 Mbytes
Operating temperature range	-30...+50°C
Storage temperature	-40..+60°C
Mechanical vibration	10g (request full test report)
Mechanical shock	50g (request full test report)

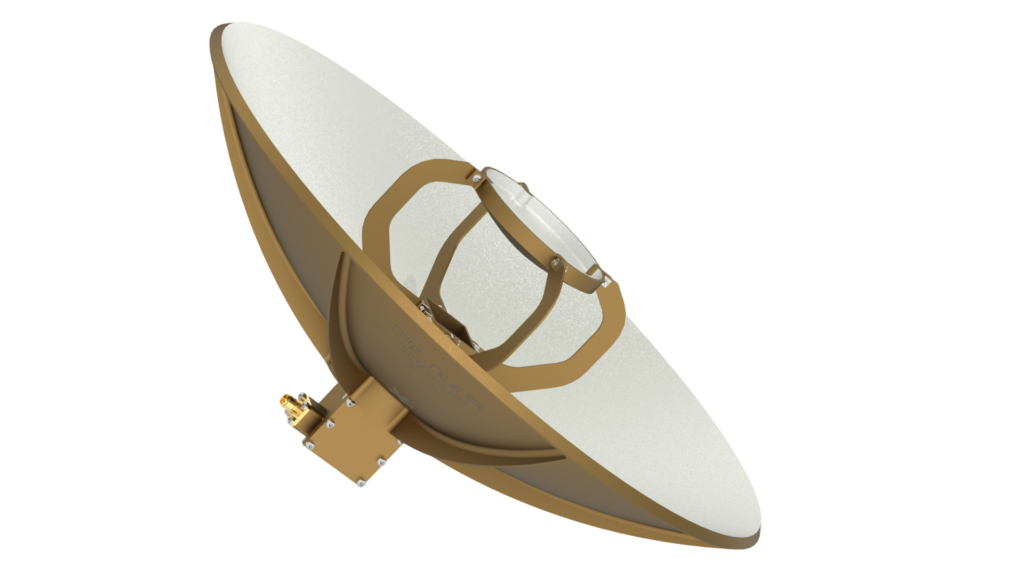

A two-mirror Cassegrain X-band antenna for organizing high-speed radio downlinks with optional dual-polarization data transmission.

1 10

Antenna Type	Mirror
Operating frequency range	8000-8400 MHz
Gain	at least 22.5 dB
Standing wave voltage coefficient	no more than 1.5
Type of polarization	Circular, RHCP
Dimensions	138 x 317 x 317 mm
Mass	570 g
Width of radiation pattern at minus 3 dB level	at least 7 degrees
Normal ellipticity coefficient	no more than 1 dB
Side lobe level	no more than minus 12 dB

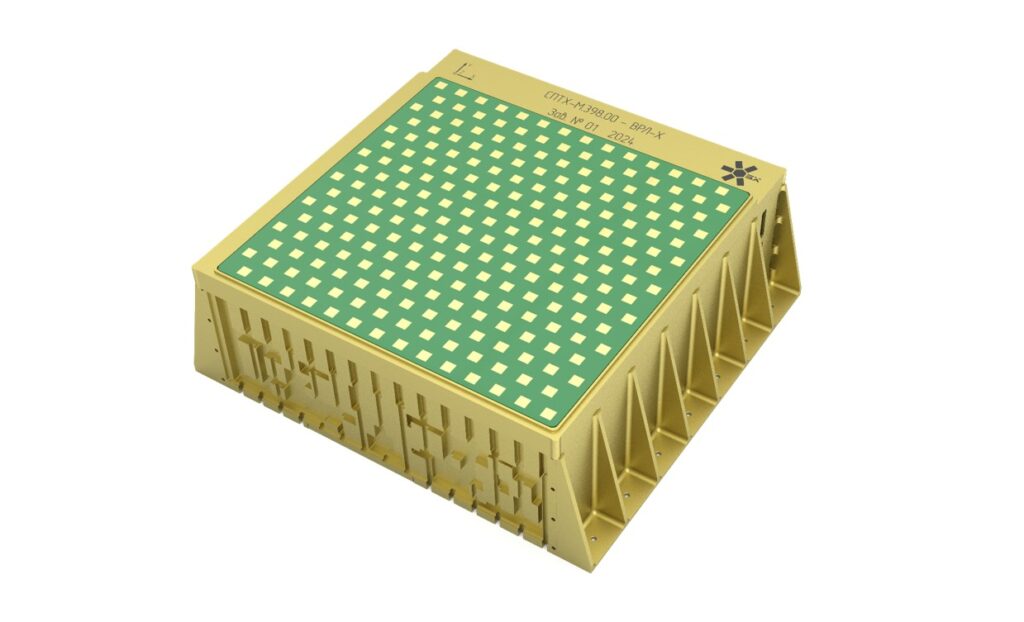

An adaptive X-band phased-array transmitter (HDRT-X) providing high-speed downlink of payload data with in-flight adaptive data rate/modulation.

1 18

Mass, kg	15
Overall dimensions, mm	315 x 315 x 120
Carrier frequency, MHz	8220
Data transfer and reception speed (@ BER 1E-8), Mbit/s	600-1750
Power voltage, V	22-34, galvanic isolation
Probability of trouble-free operation during active existence period (@10 minutes/round)	0.987
Power consumption, operation mode, W	200
Power consumption, standby mode, W	20
Valid temperature range in mounting zone while operating	-20...+40°C
Valid temperature range in mounting zone while disabled	-40...+85°C
Control interface (redundant)	Galvanically isolated SpaceWire, 10-200 Mbit/s
Target information reception interface (redundant)	x6 TX, x6 RX (2.5 Gbit/s each) or 1GBASE-T/10GBASE-T
Target information reception speed	no less than 2.5 Gbit/s
Symbol rate, Mbaud	300-350
Data transmission standard	DVB-S2/S2X
EIRP (normally), dBm	68
Operating scan sector	±65° (both planes)
Polarization	RHCP/LHCP

Documents

Reviews

No reviews yet — reviews come only from verified buyers after a completed request.

Write a review

← All providers

SPUTNIX

About SPUTNIX

Milestones

Photos 2

Products

ADCS control unit

ADCS control unit

Description

Specifications

Aerotable test bench for mutual movement of spacecraft

Aerotable test bench for mutual movement of spacecraft

Description

Specifications

Anechoic chamber

Anechoic chamber

Description

Specifications

Angular velocity sensor

Angular velocity sensor

Description

Specifications

Antenna-feeder system of global navigation satellite systems

Antenna-feeder system of global navigation satellite systems

Description

Specifications

Antenna-feeder system of the UHF band

Antenna-feeder system of the UHF band

Description

Specifications

Control unit of the thermal regime support system

Control unit of the thermal regime support system

Description

Specifications

Fibre-Optic Gyroscope

Fibre-Optic Gyroscope

Description

Specifications

GaAs end edge solar panel with coils

GaAs end edge solar panel with coils

Description

Specifications

GaAs side solar panel with coils

GaAs side solar panel with coils

Description

Specifications

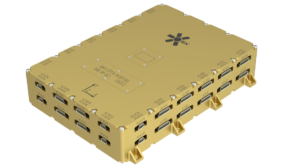

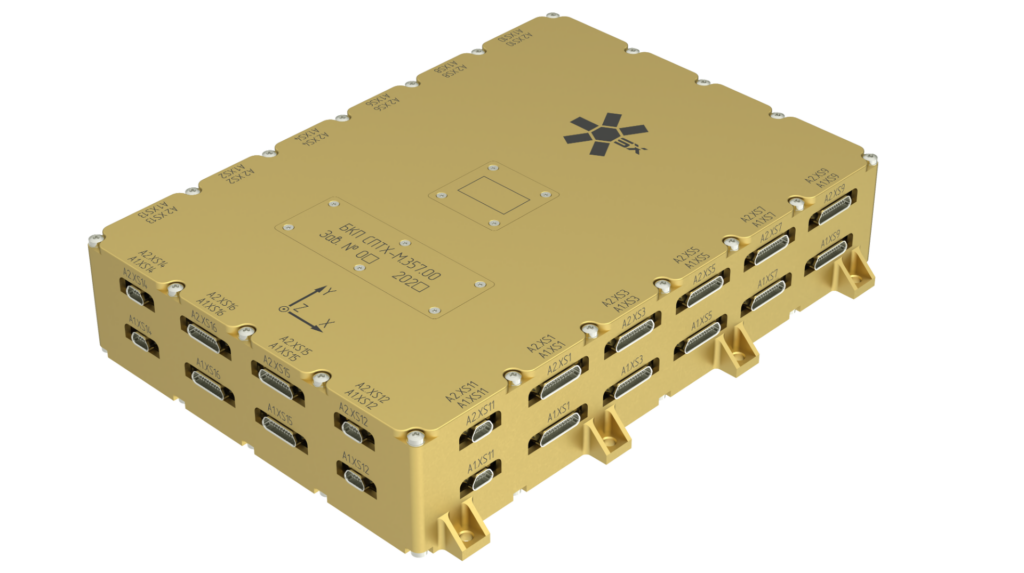

High-power distribution and control unit

High-power distribution and control unit

Description

Specifications

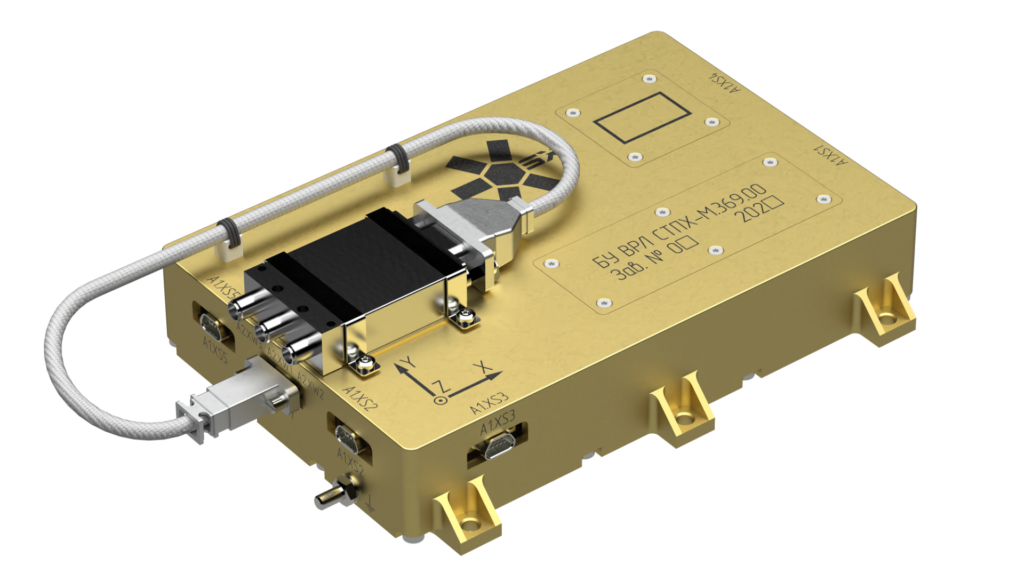

High-speed radio line control unit

High-speed radio line control unit

Description

Specifications

Magnetic torquers

Magnetic torquers

Description

Specifications

Magnetic torquers control unit

Magnetic torquers control unit

Description

Specifications

Magnetometer

Magnetometer

Description

Specifications

On-board computer

On-board computer

Description

Specifications

On-board computer (with a set of sensors and ADC controller)

On-board computer (with a set of sensors and ADC controller)

Description

Specifications

On-board software

On-board software

Description

Payload baseboard for platforms SXC1/3

Payload baseboard for platforms SXC1/3

Description

Specifications
