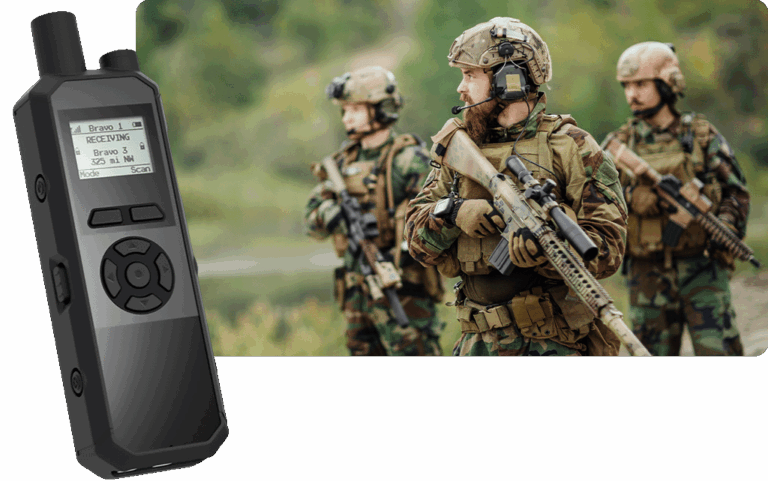

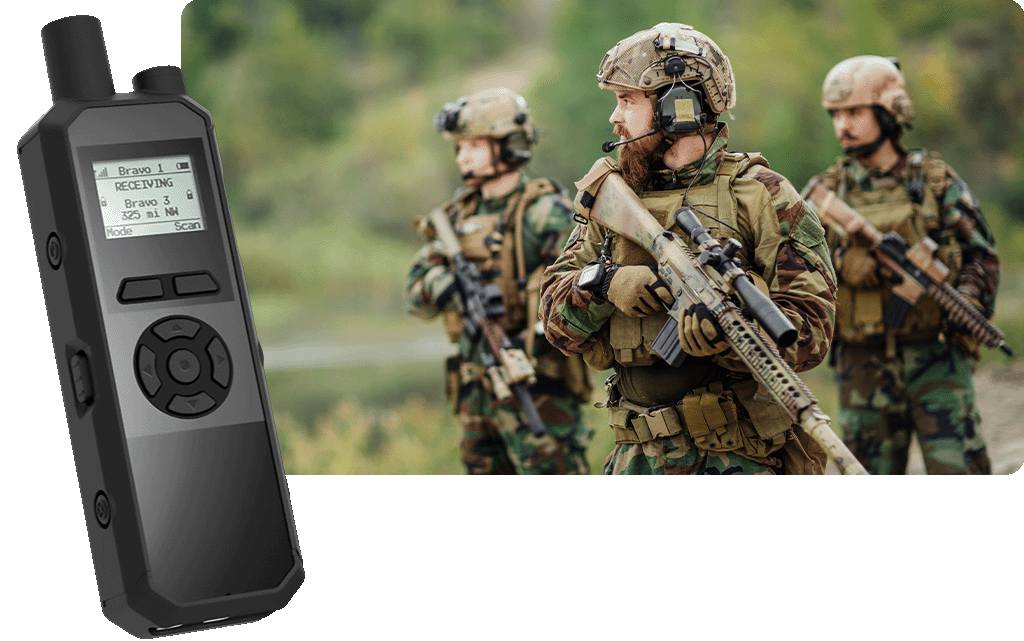

Bracer Tactical SATCOM Radio
450g ruggedised Iridium-based secure satellite PTT radio with AES-256 encryption and 100% global BLOS coverage for military and emergency applications.
Description
The QinetiQ Bracer is a ruggedised, beyond-line-of-sight (BLOS) secure satellite push-to-talk (PTT) radio powered by the Iridium global satellite network. Weighing just 450g and rated IP66/IP67, it provides 100% global coverage including polar regions, delivering AES-256 / FIPS 140-2 Level 3 end-to-end encrypted voice communications and position reporting with approximately 500ms latency.
Bracer supports talkgroups covering areas from 100,000 km² to 2.5 million km² and integrates with ATAK/WinTAK situational awareness platforms. Applications include military operations, border protection, and emergency responders requiring communications in areas with no terrestrial network coverage.
Specifications
| Mass | 450 g |
|---|---|
| Coverage | 100% global via Iridium constellation |
| Encryption | AES-256 / FIPS 140-2 Level 3 |
| Position Reporting Latency | ~500 ms |
| Ingress Protection | IP66 and IP67 |
| Data Rate | 2.4 kbps |
| Talkgroup Coverage | 100,000–2,500,000 km² configurable |
| Integration | ATAK/WinTAK compatible |
