ThinAir Ka2517
ThinKom Solutions, Inc.
Ka-band VICTS flat-panel satcom antenna for global inflight broadband, delivering up to 800 Mbps down / 200 Mbps up across GEO, MEO, LEO and HEO networks.
Technical specifications
- Operating Band
- Ka-band
- Tx Frequency
- 27.5 to 30 GHz
- Rx Frequency
- 17.3 to 20.2 GHz
- Constellations
- LEO/MEO/GEO/HEO
- Azimuth Coverage
- 360° continuous
- Elevation Coverage
- +7.5° to +90° (network dependent)
- Beam Agility
- >250°/sec
- Tracking Accuracy
- <0.2°
- Data Rates
- Up to 800 Mbps down and 200 Mbps up (network dependent)
- G/T
- 18.5 dB/K peak (13.5 dB/K at 20° elev.)
- Network Efficiency
- Up to 4 bits/Hz
- Instantaneous Bandwidth
- 500 MHz
- EIRP (Psat)
- 55.5 dBW (51 dBW at 20° elev., 80 W Psat SSPB)
- Azimuth Beamwidth
- 1.8° Tx and 1.7° Rx
- Polarization
- Switchable circular (co/orthogonal), simultaneous dual-pol mode
- Axial Ratio
- <1.5 dB typical
- OAE Dimensions (L x W x H)
- 88 in x 43 in x 7 in (2.8 m x 1.1 m x 0.2 m)
- System Weight
- 294 lb (133 kg)
- Avg. System Power
- 274 W (24 W OAE)
- Operating Temperature
- -55°C to +74°C external
- Environmental Compatibility
- RTCA/DO-160G
About

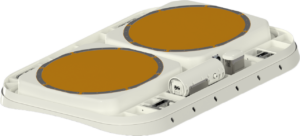

The ThinAir Ka2517 is a Ka-band phased array satcom antenna using ThinKom’s patented VICTS (Variable Inclination Continuous Transverse Stub) technology. It provides pole-to-pole coverage with seamless operation across GSO and NGSO networks, high beam agility, and an ultra-low profile that reduces drag and fuel costs. The system includes the Tx/Rx antenna, KANDU, KRFU, radome, adapter plate and fairing.
