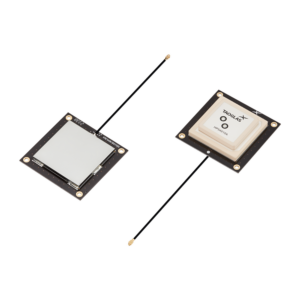

CGSP457.A GNSS + Iridium SatCom Patch Antenna
Taoglas
Ceramic patch antenna combining multi-constellation GNSS positioning with Iridium/NTN satellite communication.
Technical specifications
- Technology
- Embedded GNSS + SatCom antenna
- GNSS type
- Passive
- Bands
- L1/L-Band
- Mechanical style
- Patch
- Impedance
- 50 Ohm
- Operating temperature
- -40C to 85C
- Mounting
- Adhesive, Pin
- Dimensions
- 45 x 45 x 7 mm
- Weight
- 32 g
- Polarity
- RHCP
- Frequency range
- 1542-1643 MHz
- VSWR
- 2:1
- Gain max
- 5.97 dBi
- SatCom support
- Iridium L-band, NTN n255 uplink/downlink
About
The CGSP457.A is a ceramic patch antenna engineered for GNSS positioning combined with satellite communications in a compact 45 x 45 x 7 mm form factor. It supports GPS, GLONASS, Galileo, BeiDou, QZSS, IRNSS, and SBAS constellations, plus Iridium L-band and NTN n255 uplink/downlink, making it suited to non-terrestrial network applications, UAVs, robotics platforms, telematics systems, SatCom terminals, and precision timing devices.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
