StenSat Radio Beacon
StenSat Group LLC
Small AX.25 FM telemetry beacon for CubeSats and small satellites.
Technical specifications
- Frequency Bands
- 2m, 70cm
- RF Output Power
- 0 to 3 watts
- Supply voltage
- 5 to 12 volts
- Data Interface
- UART at 38.4 Kbits/sec
- Dimensions
- 1.75" x 3.1" x 1"
- Mass
- About 50 grams
- Flight heritage
- Flown on several CubeSats
About

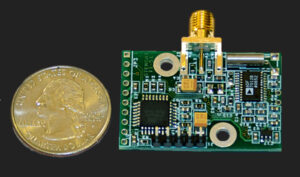

The StenSat Radio Beacon is a small FM transmitter designed for satellites. It generates AX.25 Unnumbered Information (UI) packets at 1200 bps AFSK and 9600 bps FSK, with the 9600 bps FSK signal compatible with G3RUH modulation. RF output power is adjustable from 0 to 3 watts on a single 5 to 12 volt supply. The beacon has flown on several CubeSats as a low-cost, flight-proven telemetry downlink. Units are configured to customer specification: connector type (SMA or MCX, straight or right-angle), operating frequency, and call sign.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
