Satcube Motion
Satcube AB
Compact vehicle-mountable on-the-move Ku-band satellite terminal, MIL-STD tested, launching autumn 2025.
Technical specifications
- Dimensions
- 500 x 500 x 290 mm
- Weight
- 15 kg
- Environmental rating
- IP67 water and dust proof
- Scan angles
- Elevation 15-90 degrees; azimuth continuous 360 degrees
- Power
- 48 VDC, 150 W; AC/DC 100-240 VAC, 47-63 Hz
- Antenna TX
- 13.75-14.50 GHz (Ku band)
- Antenna RX
- 10.95-12.75 GHz (Ku band)
- EIRP
- 47.5 dBW (all scan angles)
- G/T
- 9 dB/K (all scan angles)
- Internal modem
- iDirect IQ200
- Operating temperature
- -46 C to 49 C, MIL-STD-810H compliant
- Data rate
- Up to 85/20 Mbps via HTS satellite, full duplex
- Connections
- 2x RJ45 15W PoE connectors
About

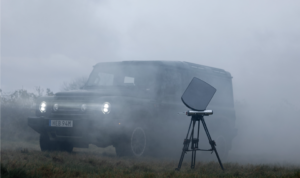

Satcube Motion is described as the world’s smallest and most intuitive mobility on-the-move terminal, mountable on any vehicle due to its low weight and compact size, and able to run on standard vehicle batteries. It operates on Intelsat’s GEO FlexMove network and Satcube Connectivity Services, is MIL-STD 810 and 461 tested, IP67 certified, and built for contested and harsh environments, fully controllable via Satcube’s web-based user interface.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
