RGTR-A
RevGo

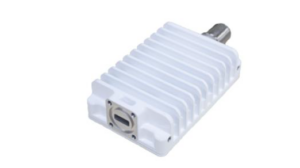

Ka-Band VSAT Transceiver — RGTR-A, frequency Tx 29.0-30.0GHz Rx 18.2-21.2GHz (Many band options available), output 10W.
Technical specifications
- Frequency
- Tx 29.0-30.0GHz Rx 18.2-21.2GHz (Many band options available)
- Power/Output
- 10W
- Tx RF Frequency
- 29.00-30.00 GHz
- IF Input Frequency1
- 1400-2400 MHz
- External Reference
- 10 MHz, 0±5 dBm
- Output Power
- 10W
- Rated/Saturated
- 40 dBm
- Plin1
- 39 dBm
- Plin2
- 37 dBm
- Small Signal Gain
- 65 dB (50-65 dB, Step by 0.25 dB)
- Gain Flatness
- 3 dB p-p/500 MHz; 1 dB p-p / 36 MHz
- Gain stability
- 3 dB p-p
- Output Spurious
- -55 dBc
- Output Frequency
- 950-1950 MHz/950-2150 MHz
- LO Frequency
- 16.75/17.5/18.25/19.25 GHz(For Quad-band)
- switched by M&C
- 17.25/18.25 GHz(For Dual-band)
- Noise Figure
- 1.5 dB typ., 1.6 dB max.@20.2-21.2 GHz
- P-1dB
- 10 dB min.
- Gain
- 60 dB
- Image Rejection
- 30 dB typ.
- Size (inches)
- 5.90*5.51*1.97 Operating Temp -40 to +60 ℃
- Weight (lbs)
- 3.08 Altitude 0-10,000 feet ASL
- Input Power
- 18 - 55 VDC Input Power +12 to +24 VDC
- Power Consumption
- 10 W Power Consumption 6 W
- Prated (including Fan)
- 60 W typ. 70 W max
- MS Connector
- 4-Pin for Power supply
- TE T4130012081-000
- 4-pin for M&C (RS422/RS485)
About
RevGo Global’s RGTR-A is a ka-band vsat transceiver designed for satellite ground-segment (VSAT/SNG/maritime) RF chains, manufactured by RevGo Global Inc. (Reston, VA, USA), a satellite earth-station RF equipment manufacturer founded in 2002 and operating an ISO 9001:2015 quality system. This model operates over Tx 29.0-30.0GHz Rx 18.2-21.2GHz (Many band options available) with rated output/class of 10W. RevGo’s product line uses highly integrated RF technologies (RFIC and GaN), is designed for high-volume production, and is built for rugged outdoor operation (typ. -40 to +60C, 0-100% humidity condensing, up to 10,000 ft altitude). Typical applications include maritime VSAT terminals, 5G backhaul, SNG (satellite news gathering) vehicles, and fixed, portable, or transportable satellite terminals. Full RF, power, mechanical, and interface specifications are provided in the manufacturer’s datasheet linked below.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
