About RevGo

RevGo Global Inc. is an American satellite ground equipment manufacturer headquartered in Reston, Virginia, developing and producing RF electronics for satellite communications including Block Upconverters (BUCs), Low Noise Blocks (LNBs), and transceivers for VSAT terminals, satellite earth stations, and mobile and airborne satcom platforms. The company originated in 2002 as WaveLab and entered the satellite equipment industry in 2013, spinning off RevGo Global in 2016 to focus specifically on satellite communications hardware. RevGo uses gallium nitride (GaN) power combining technologies to produce C-, Ku-, DBS-, and Ka-band products, and has delivered more than one million units globally with a manufacturing defect rate below 0.0025 percent. The company achieved EASA DO-160G airworthiness certification for airborne satellite communications hardware in 2017 and holds certifications from SES O3b/mPOWER, Anatel, and Kymeta for its equipment. RevGo operates satellite equipment manufacturing facilities in both Reston, Virginia and Richmond, Texas.

Company Info

Headquarters Reston, Virginia, USA, United States

Founded 2016 (10 years)

Specializations

manufacturer

Website revgoglobal.com ↗

Email Support@RevGoGroup.com

Products

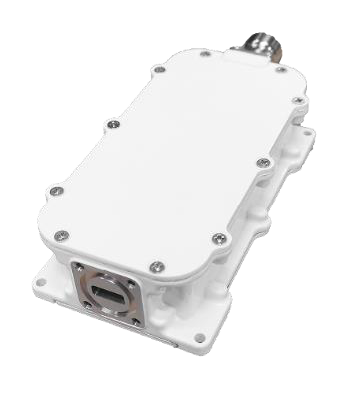

Low Noise Block (LNB) — RGLN - A, frequency 18.2 - 21.2 GHz (Single and dual band options), output Ka.

1 20

Frequency	18.2 - 21.2 GHz (Single and dual band options)
Power/Output	Ka
IN PUT W R	42 G ROO V ED
W IT H	4-M 3x0.5（7m m D ep th ）
W ITH	4 - 3.4 THRU
Output Frequency	950-1950 MHz
Noise Figure	1.5 dB (RF at band 2, 3, 6)
Conversion Gain	55 to 65 dB
Output P-1dB	10 dBm min., 15 dBm typ.
Phase Noise	-75 dBc/Hz @1 KHz
Image Rejection	30 dBc min.
Output Spurious	-50 dBc max.
Power Consumption	5 W
RF Input VSWR	2.5:1
IF Output VSWR	2.0:1
Size (inches)	5.242.361.18
Weight (lbs)	0.93
Operating Temperature	-40 to +60 oC
Humidity	0-100 % (condensing)
Altitude	0-10,000 feet ASL

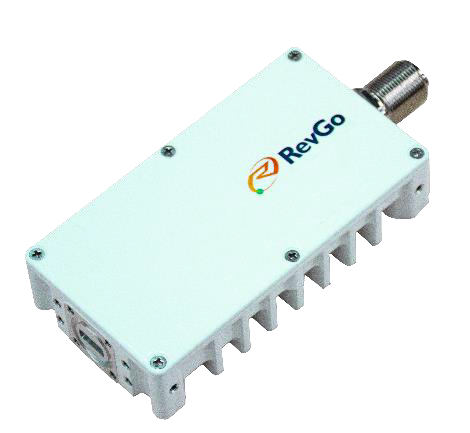

Low Noise Block (LNB) — RGLN - A FB, frequency 17.7 - 21.2 GHz (Tri Band or Quad Band), output Ka.

1 19

Frequency	17.7 - 21.2 GHz (Tri Band or Quad Band)
Power/Output	Ka
Output Frequency	950-1950 MHz
Noise Figure	1.5 dB (RF at band 1, 2, 3)
Conversion Gain	55 to 65 dB
Output P-1dB	10 dBm min. 15 dBm typ.
Phase Noise	-75 dBc/Hz @1 KHz
Image Rejection	40 dB @16.75 GHz,
Output Spurious	-50 dBc max.
Input Power	12-24 VDC via IFL
Band	1: 12-15 VDC & no Tone; 2: 16-24 VDC & no Tone; 3: 16-24 VDC & 22KHz Tone; 4: 12-15 VDC & 22KHz Tone
Power Consumption	5 W
Input VSWR	2.0:1
Output VSWR	2.0:1
Size (inches)	4.412.361.04
Weight (lbs)	0.66
Operating Temperature	-40 to +60 oC
Humidity	0-100% (condensing)
Altitude	0-10,000 feet ASL

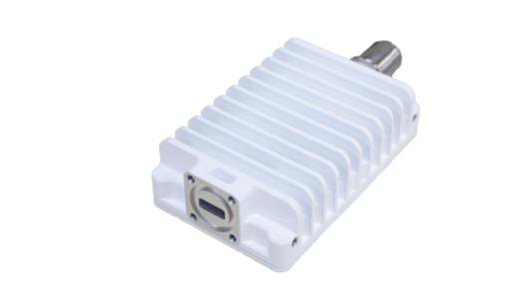

Low Noise Block (LNB) — RGLN - A Mini, frequency 18.2 - 21.7 GHz (Many band options), output Ka.

1 18

Frequency	18.2 - 21.7 GHz (Many band options)
Power/Output	Ka
WITH	4-M3x0.5 （6mm Depth ）
Output Frequency	950-1950 MHz
Noise Figure	1.5 dB (RF at band 2, 3, 6,8)
Conversion Gain	55 to 65 dB
Output P-1	10 dBm min., 15 dBm typ.
Phase Noise	-73 dBc/Hz @ 1 KHz
Image Rejection	30 dBc min.
Output Spurious	-50 dBc max.
Power Consumption	5 W
RF Input VSWR	2.5:1
IF Output VSWR	2.0:1
Size (inches)	3.462.200.98
Weight (lbs)	0.42 (F-type)
Operating Temperature	-40 to +60oC
Humidity	0-100% (condensing)
Altitude	0-10,000 feet ASL

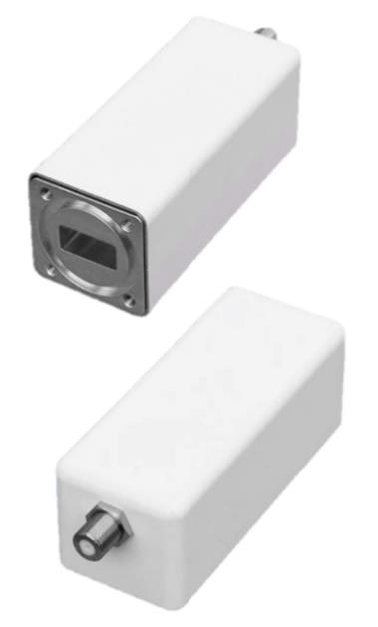

Low Noise Block (LNB) — RGLN - U, frequency 10.95 - 12.75 GHz (Single and dual band options), output Ku.

1 17

Frequency	10.95 - 12.75 GHz (Single and dual band options)
Power/Output	Ku
an ISO	9001:2015 quality system:
WITH	4-M4x0.7（7mm Depth）
Power Consumption	4 W
IF Input VSWR	2.5:1
Output VSWR	2.0:1
Dimensions inch	3.94x1.57x1.57
Weight lbs	0.55
Operating Temperature	-40 to +60 oC
Humidity	0-100 % (Condensing)
Altitude	0-10,000 feet ASL
Noise Figure	0.8 dB max.
External ref.	10 MHz, 0±5 dBm (optional)
Conversion Gain	50-60 dB or 55-65 dB (optional)
Phase Noise	-65 dBc/Hz @ 100 Hz
Output Spurious	-55 dBc @ -10 dBm (IF output)

Low Noise Block (LNB) — RGLN - U, frequency 10.7 – 12.75GHz (Band switchable via voltage or 22kHz tone), output Ku.

1 16

Frequency	10.7 – 12.75GHz (Band switchable via voltage or 22kHz tone)
Power/Output	Ku
W ITH	4-M4x0 .7 （ 7mm Depth）
Power Consumption	3 W
Input VSWR	2.5:1
Output VSWR	2.0:1
Dimensions inch	3.70x1.57*1.57
Weight lbs	0.53
Operating Temperature	-40 to +60 oC
Humidity	0-100 % (Condensing)
Altitude	0-10,000 feet ASL
Noise Figure	0.8 dB typ., 1.0 dB max.
Conversion Gain	60 dB
Output P1dB	5 dBm min.
Phase Noise	-60 dBc/Hz @100 Hz,
Output Spurious	-55 dBc @ -10 dBm (IF output)

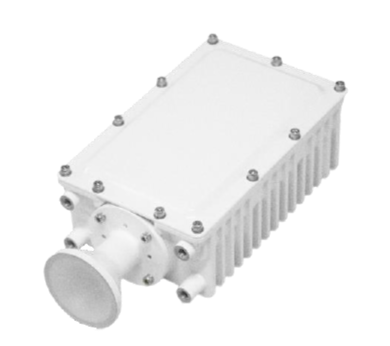

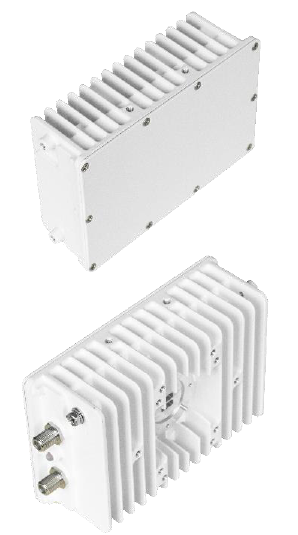

Ka-Band VSAT Transceiver — RGTR-A, frequency Tx 29.0-30.0GHz Rx 18.2-21.2GHz (Many band options available), output 10W.

1 27

Frequency	Tx 29.0-30.0GHz Rx 18.2-21.2GHz (Many band options available)
Power/Output	10W
Tx RF Frequency	29.00-30.00 GHz
IF Input Frequency1	1400-2400 MHz
External Reference	10 MHz, 0±5 dBm
Output Power	10W
Rated/Saturated	40 dBm
Plin1	39 dBm
Plin2	37 dBm
Small Signal Gain	65 dB (50-65 dB, Step by 0.25 dB)
Gain Flatness	3 dB p-p/500 MHz; 1 dB p-p / 36 MHz
Gain stability	3 dB p-p
Output Spurious	-55 dBc
Output Frequency	950-1950 MHz/950-2150 MHz
LO Frequency	16.75/17.5/18.25/19.25 GHz(For Quad-band)
switched by M&C	17.25/18.25 GHz(For Dual-band)
Noise Figure	1.5 dB typ., 1.6 dB max.@20.2-21.2 GHz
P-1dB	10 dB min.
Gain	60 dB
Image Rejection	30 dB typ.
Size (inches)	5.905.511.97 Operating Temp -40 to +60 ℃
Weight (lbs)	3.08 Altitude 0-10,000 feet ASL
Input Power	18 - 55 VDC Input Power +12 to +24 VDC
Power Consumption	10 W Power Consumption 6 W
Prated (including Fan)	60 W typ. 70 W max
MS Connector	4-Pin for Power supply
TE T4130012081-000	4-pin for M&C (RS422/RS485)

Ka-Band VSAT Transceiver — RGTR-A, frequency Tx 29.0-30.0GHz Rx 18.2-21.2GHz (Many band options available), output 4W.

1 26

Frequency	Tx 29.0-30.0GHz Rx 18.2-21.2GHz (Many band options available)
Power/Output	4W
Ka-Band TR	4W
Tx RF Frequency	29.00-30.00 GHz
IF Frequency	1400-2400 MHz
LO Frequency	27.60 GHz; 16.85 GHz & 18.05 GHz
Ref Signal Type	10 MHz external ref
External Reference	10 MHz, 0±5 dBm
Output Power	4W
Rated/Saturated	36 dBm
Small Signal Gain	55± 4 dB 51 dB min.
Gain Flatness	1 dB p-p max./36MHz; 1 dB p-p / 36 MHz max.
Gain stability	3 dB p-p
Phase Noise	2.2° max. @RMS 100Hz to 1MHz; 2.0° max. @ RMS 1kHz to 1MHz
Output Spurious	-50 dBc max.
Pwr Consumption	30 W typ. 35 W max.; 4 W
Rx Frequency	17.80-19.00 & 19.00-20.20 GHz
Output Frequency	950-1950 MHz / 950-2150 MHz
Dual-LO switched by voltage	17.25 GHz & 18.25 GHz (optional)
Noise Figure	1.5 dB typ.
P-1dB	10 dBm min.
Gain	52 dB min. .
Image Rejection	30 dBc
Input Power (DC)	+12 to +24 VDC
Size (inches)	5.823.771.96 Operating Temp -40 to +55 ℃
Weight (lbs)	1.76 Altitude 0-10,000 feet ASL

Ka-Band VSAT Transceiver — RGTR-A, frequency Tx 29.0-30.0GHz Rx 18.2-21.2GHz (Many band options available), output 3W.

1 25

Frequency	Tx 29.0-30.0GHz Rx 18.2-21.2GHz (Many band options available)
Power/Output	3W
Ka-Band TR	3/4W
Tx RF Frequency	29.00-30.00 GHz
IF Frequency	1400-2400 MHz
LO Frequency	27.60 GHz; 16.85 GHz & 18.05 GHz
External Reference	10 MHz, 0±5 dBm
Output Power	3W 4W
Rated/Saturated	35 dBm 36 dBm
Small Signal Gain	55±4 dB
Gain Flatness	1 dB p-p/36MHz; 1 dB p-p / 36 MHz
Gain stability	3 dB p-p
Phase Noise	2.0° max. @RMS 100Hz to 1MHz; 1.8° max. @RMS 1 KHz to 1 MHz
Output Spurious	-50 dBc max.
Input Power	18 to 36 VDC; 12 to 24 VDC
Consumption	30W typ. 35W max.; 4 W
Rx Frequency	17.80-19.00 & 19.00-20.20 GHz
Output Frequency	950-1950 MHz / 950-2150 MHz
Dual LOs	17.25 GHz & 18.25 GHz (optional)
Switched by voltage	18.25 GHz & 19.25 GHz (optional)
Noise Figure	1.8 dB
P-1dB	10 dB min.
Gain	55 ± 4 dB min.
Size (inches)	7.983.782.28 Operating Temp -40 to +60 °C
Weight (lbs)	2.2 Alarm Indicators LED *1

Block Up-Converter (BUC) — RGUC-A Classic, frequency 27.5-31 GHz (Many band options available), output 40W.

1 20

Frequency	27.5-31 GHz (Many band options available)
Power/Output	40W
PT0	2E-12-14P
RF Output VSWR	1.25:1
IF Input VSWR	1.5:1
Size	259136136 mm
Weight	6 kg
Operating Temperature	-40 to +60 ℃
Humidity	0-100% (Condensing)
Altitude	0-10000 F ASL
External Reference	10 MHz, 0 ± 5 dBm
Output Power	40W BUC
IMD3 at Linear Output Power	-25 dBc max.
Small Signal Gain	70 dB
Gain Stability	3 dB p-p
Gain Adjustment Range	20 dB (Step: 0.1 dB)
Phase Noise	-63 dBc/Hz @100 Hz,
Output Spurious	-55 dBc max.
Suite	450 Reston, Virginia 20191 USA
R G U C - A a	0 4 0 - b B R E N - A 0

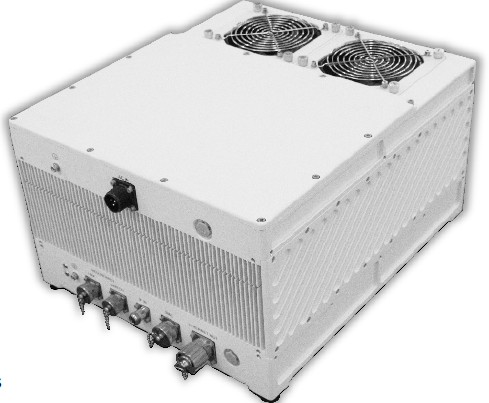

Block Up-Converter (BUC) — RGUC-A High Power, frequency 27.5-31 GHz (Many band options available), output 300W.

1 31

Frequency	27.5-31 GHz (Many band options available)
Power/Output	300W
Block Up-Converter (BUC) Ka-Band	300W
WR34 OUTPUT4-M3 DEPTH	6
RF Frequency	27.50-30.00 GHz (27.50-31.00 GHz optional)
IF Frequency	0.95-1.95 GHz
External Ref	10 MHz, 0 ± 5 dBm
Oscillator Accuracy	±100 ppb typ.
Oscillator Stability	± 5 ppb typ.
Output Power Rated	54.8 dBm
PLin1	53.8 dBm
PLin2	52.8 dBm
PLin3	51.8 dBm
IMD3 (@Prated-3dB)	-25 dBc
Small Signal Gain	70 dB min. @ Prated-3dB
Gain Adjustment	45-70 dB (25 dB, Step by 0.5 dB)
Gain Variation	0.1 dB p-p/MHz; 3 dB p-p/500 MHz; 4 dB p-p/1000 MHz
Gain Stability	2 dB p-p min
Phase Noise	-63 dBc/Hz @100 Hz; -81 dBc/Hz @1 KHz; -85 dBc/Hz @10 KHz; -95 dBc/Hz @100 KHz
Output Spurious	-60 dBc max.
Harmonic	-30 dBc max. @ Prated (-60 dBc with optional filter)
Input Power	200 to 240 VAC (50-60 Hz)
Power Consumption @Rated	2,800 W typ.
Power Consumption @PLin3	1,800 W typ.
RF Output Connector	WR34-G (Grooved), WR28-G (Grooved) optional
RF Output VSWR	1.3:1
Size	17.72x15.75x9.05 in (450x400x230 mm)
Weight	66.13 lbs (30 kg)
Operating Temperature	-40 to +60 C
Humidity	0-100% (condensing)
Altitude	0-10,000 feet ASL

Block Up-Converter (BUC) — RGUC-A Low Power, frequency 27.5-31 GHz (Many band options available), output 10W, 20W.

1 25

Frequency	27.5-31 GHz (Many band options available)
Power/Output	10W, 20W
IF Frequency	950-1950 MHz
External Ref	10 MHz, 0  5 dBm
Output Power	10W BUC 20W BUC
Rated/Psat	40 dBm 43 dBm
PLin1	39 dBm 42 dBm
PLin2	38 dBm 41 dBm
PLin	37 dBm 40 dBm
IMD3 (3dB from rated)	-25 dBc
Small Signal Gain	70 dB
Gain Variation	1 dB p-p / 36 MHz
Gain stability	3 dB p-p
Gain Adjustment	20 dB (Step: 0.25 dB)
Phase Noise	-63 dBc / Hz @ 100 Hz
Output Spurious	-55 dBc
Input Power	+18 to +55 vDC
Power Consumption	10W BUC 20W BUC
RF Output VSWR	1.3:1
IF Input VSWR	2:1
Size (inches)	5.53.942.95
Weight (lbs)	2.64 lbs
Operating Temperature	-40 to +60oC
Humidity	0-100% (condensing)
Altitude	0-10,000 feet ASL

Block Up-Converter (BUC) — RGUC-A Mid Power, frequency 27.5-31 GHz (Many band options available), output 20W.

1 25

Frequency	27.5-31 GHz (Many band options available)
Power/Output	20W
RF Frequency	27.5 -31 GHz
IF Frequency	950-1950 MHz
External Ref	10 MHz, 0  5 dBm
Output Power	20W BUC
Prated / Psat	43 dBm / 43 dBm min.
PLin1	42 dBm
PLin2	41 dBm
PLin	40 dBm
IMD3 (3dB from rated)	-25 dBc max.
Small Signal Gain	70 dB
Gain Variation	1 dB p-p / 36 MHz
Gain stability	3 dB p-p
Gain Adjustment	20 dB (50-70 dB, Step: 0.1 dB)
Phase Noise	-63 dBc / Hz @ 100 Hz
Output Spurious	-55 dBc
Input Power	+36 to +72 VDC
RF Output VSWR	1.25:1
IF Input VSWR	1.5:1
Size (inches)	8.15.33.4
Weight (lbs)	7.3 lbs
Operating Temperature	-40 to +60oC
Humidity	0-100% (condensing)
Altitude	0-15,000 feet ASL

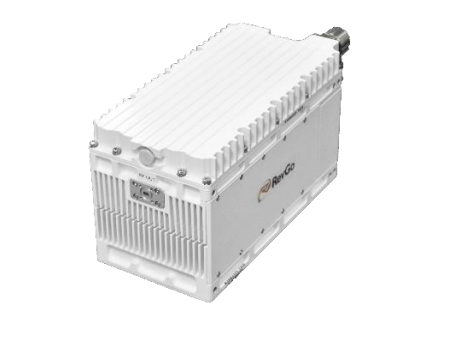

Block Up-Converter (BUC) — RGUC-A mPower, frequency 27.5-31 GHz (Many band options available), output 40W, 80W.

1 32

Frequency	27.5-31 GHz (Many band options available)
Power/Output	40W, 80W
Cat.	5e RJ45
CONEC	17-111204
Band	2=30.00 – 31.0 950 – 1950 29.05; 1=27.50 – 28.50 950 – 1950 26.55; 2=28.25 – 29.25 950 – 1950 27.30; 3=29.00 – 30.00 950 – 1950 28.05; 4= 30.00 – 31.00 950 – 1950 29.05; 4=27.652 – 28.388 1052 – 1788 26.60; 5=28.172 – 29.071 972 – 1871 27.20
Output Frequency	27.50-31.00 GHz (the detail as below list)
mPower Network Band	1 Band 2 Band 3
RF Frequency (GHz)	27.50-28.50 28.25-29.25 29.00-30.00; 27.652-28.388 28.172-29.071
IF Frequency (MHz)	950-1950 950-1950 950-1950; 1052-1788 972-1871
LO Frequency (GHz)	26.55 27.30 28.05; 26.60 27.20
O3b Network Band	4 Band 5
External Ref	10 MHz, 0  5 dBm
Output Power	40W BUC 80W BUC
Rated/Saturated	46 dBm 49 dBm
PLin1	45 dBm 48 dBm
PLin2	44 dBm 47 dBm
PLin	43 dBm 46 dBm
Small Signal Gain	67-77 dB
Gain Variation	1 dB p-p / 36 MHz
Gain stability	3 dB p-p
Gain Adjustment	10 dB (Step: 0.1 dB)
Phase Noise	-63 dBc / Hz @ 100 Hz
Output Spurious	-60 dBc
Input Power	+36 to +60 VDC
Power Consumption	40W BUC 80W BUC
RF Output VSWR	1.25:1
IF Input VSWR	1.5:1
Size	10.65.46.1 inches
Weight	40W BUC 80W BUC
Operating Temperature	-40 to +60oC
Humidity	0-100% (condensing)
Altitude	0-10,000 feet ASL

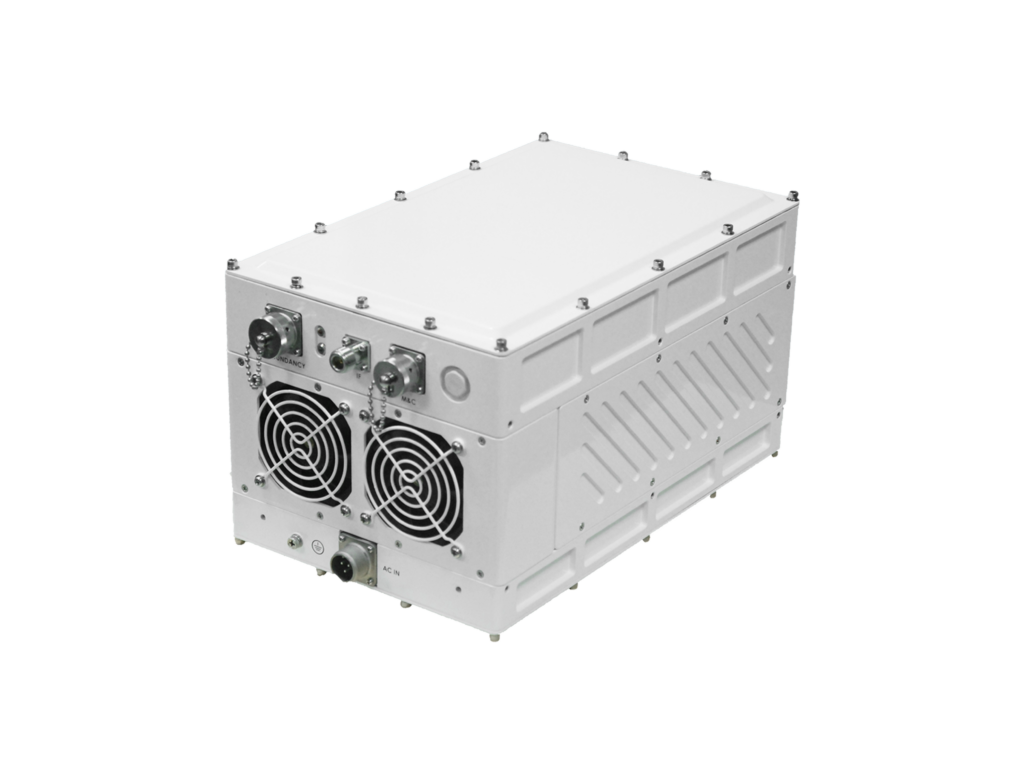

Block Up-Converter (BUC) — RGUC-Aa160-ACREN-A0, frequency 27.5-31 GHz (Many band options available), output 160W.

1 25

Frequency	27.5-31 GHz (Many band options available)
Power/Output	160W
Input Power	100 to 240 VAC (50-60Hz)
RF Output VSWR	1.3:1
IF Input VSWR	1.5:1
Size (inches)	13.78.667.87
Weight (lbs)	33 lbs
Operating Temperature	-40 to +60oC
Humidity	0-100% (condensing)
Altitude	0-10,000 feet ASL
IF Frequency	950-1950 MHz
External Ref	10 MHz, 0  5 dBm
Saturated	52 dBm (Peak to Peak)
Rated	51 dBm (CW Power)
Plin1	50 dBm
Plin2	49 dBm
Plin3	48 dBm
Noise Power Ratio (NPR)	-19 dBc @48.3dBm or 68W
Small Signal Gain	55-75 dB
Gain Variation	1 dB p-p / 36 MHz
Gain Adjustment	20 dB (Step: 0.1 dB)
Phase Noise	-63 dBc / Hz @ 100 Hz
Output Spurious	-60 dBc
Optional	1:1 Redundancy Configuration; 1:1 Redundancy Kit
SWITCHKA	160W BUC KA 160W BUC

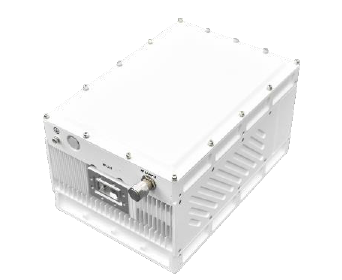

Block Up-Converter (BUC) — RGUC-C High Power, frequency S: 5.850-6.425 GHz E: 5.850-6.725 GHz, output 200W.

1 31

Frequency	S: 5.850-6.425 GHz E: 5.850-6.725 GHz
Power/Output	200W
PT02E	-14-19P PT0 2E-12-1 4S
CPR	137 Grooved With 8-M5
Input Power	100 to 240 VAC (50-60 Hz)
Power Consumption	200W BUC
RF Output VSWR	1.25:1
IF Input VSWR	1.5:1
Size (inch)	12.598.667.08
Weight (lbs)	26.45
Operating Temperature	-40 to +60oC (guarantee)
Humidity	0-100% (condensing)
Altitude	0-10,000 feet ASL
IF Frequency	950-1525 MHz 950-1825 MHz
External Ref	10 MHz, 05 dBm
Internal Ref (optional)	10 MHz, 05 dBm
Output Power	200W BUC
Rated/Saturated	53 dBm
PLin1	52 dBm
PLin2	51 dBm
PLin3	50 dBm min.
Small Signal Gain	75 dB
Gain Variation	1.5 dB p-p / 36 MHz
Gain stability	3 dB p-p
Gain Adjustment	20 dB (55-75 dB, Step: 0.1 dB)
TX noise density	-76 dBm/Hz
RX noise density	-150 dBm/Hz
Phase Noise	-68 dBc / Hz @ 100 Hz
Output Spurious	-60 dBc
Optional	1:1 Redundancy Configuration; 1:1 Redundancy Kit
SWITCHC	200W BUC C 200W BUC

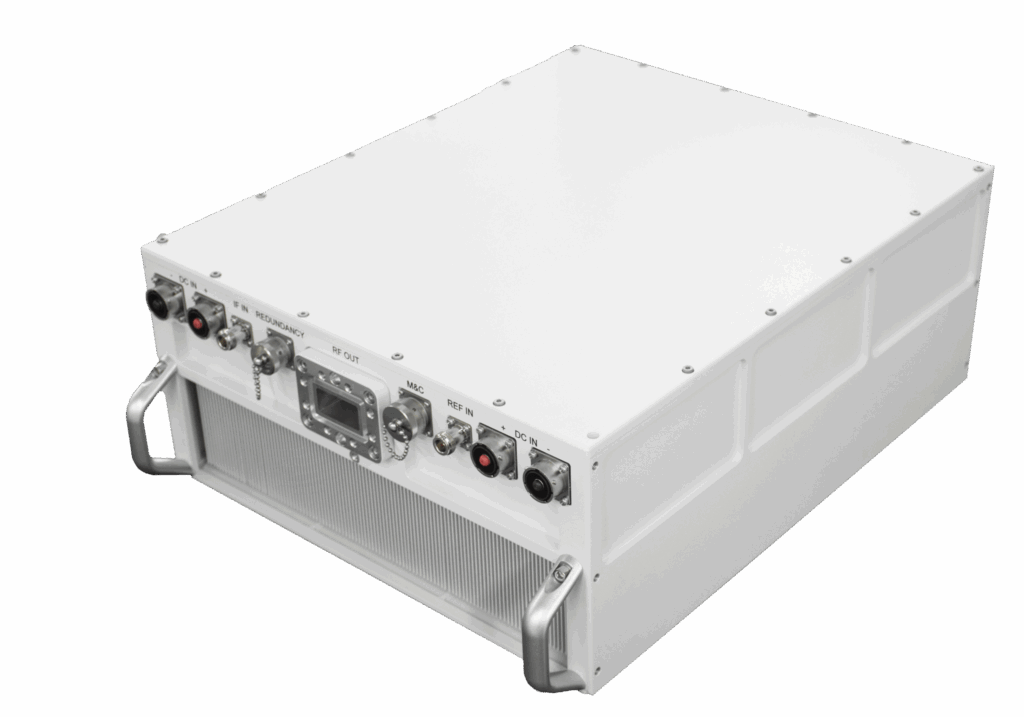

Block Up-Converter (BUC) — RGUC-C High Power, frequency S: 5.850-6.425 GHz E: 5.850-6.725 GHz, output 800, 1000W.

1 36

Frequency	S: 5.850-6.425 GHz E: 5.850-6.725 GHz
Power/Output	800, 1000W
J1 IF Input N-type Female	950-1825 MHz Input overdrive protection
J2 RF Output WR137-G	5.850-6.725 GHz
J4 Redundancy connector PT02E-12-14P /	1:1/1:2 redundant system control interface
J5 REF IN N-type Female	10 MHz Reference clock input
J6 AC Power Supply /	200 to 240 VAC (50 -60 Hz) Power for BUC
J9 TX LO Sample N-type Female	4.90 GHz TX LO Detection (optional)
Input Power	200 to 240 VAC (50-60 Hz)
Power Consumption	800W 1000W
RF Output VSWR	1.3:1
IF Input VSWR	1.5:1
Size (mm)	508425265 (LWH)
Weight (lbs)	99.20
Operating Temperature	-40 to +55 oC
Humidity	0-95% (Condensing)
Altitude	0-3000 m
Above	3000 meters, for every 1000
drops by	6° C)
LO Frequency	4.90 GHz
External Ref	10 MHz, 05 dBm (internal ref optional)
Output Power	800 W 1000 W
Saturated	59.5 dBm 60.5 dBm
Rated	59 dBm 60 dBm
Plin1	58 dBm 59 dBm
Plin2	57 dBm 58 dBm
Plin3	56 dBm 57 dBm
Small Signal Gain	75 dB
Gain Variation	1.5 dB p-p / 40 MHz
Gain stability	3 dB p-p
Gain Adjustment	20 dB (55-75 dB, Step: 0.1 dB)
TX noise density	-76 dBm/Hz
RX noise density	-150 dBm/Hz @3.4-4.2 GHz
Phase Noise	-68 dBc / Hz @ 100 Hz
Output Spurious	-60 dBc min. -65 dBc typ.
Optional	1:1 Redundancy Configuration; 1:1 Redundancy Kit

Block Up-Converter (BUC) — RGUC-C High Power, frequency S: 5.850-6.425 GHz E: 5.850-6.725 GHz, output 400W.

1 36

Frequency	S: 5.850-6.425 GHz E: 5.850-6.725 GHz
Power/Output	400W
J3 Power Supply ACS02E-16-10P	200 to 240 VAC (47-63 Hz) Power for SSPB
J6 Link connector PT02E-12-14S /	1:1/1:2 redundant system control interface
J7 Switch connector PT02E-12-14P /	1:1/1:2 redundant system switch control interface
PT02E	-14-19P
PT0	2E-12-1 4S
Input Power	200 to 240 VAC (47-63 Hz)
Power Consumption	400W BUC
RF Output VSWR	1.25:1
IF Input VSWR	1.5:1
Ethernet Connector RJ45 (Ethernet,	100/1000 MHz)
Size (inch)	16.5312.608.27
Weight (lbs)	55.11
Operating Temperature	-40 to +60oC (guarantee)
Humidity	0-100% (condensing)
Altitude	0-15,000 feet ASL
IF Frequency	950-1525 MHz 950-1825 MHz
LO Frequency	4.90 GHz
External Ref	10 MHz, 0  5 dBm
Internal Ref (optional)	10 MHz
Output Power	400W BUC
Rated	56 dBm
Plin1	55 dBm
Plin2	54 dBm
Plin3	53 dBm min.
Small Signal Gain	75 dB
Gain Variation	1.0 dB p-p / 40 MHz
Gain stability	3.0 dB p-p
Gain Adjustment	20 dB (55-75 dB, Step: 0.1 dB)
TX noise density	-76 dBm/Hz
RX noise density	-150 dBm/Hz @3.4-4.2 GHz
Phase Noise	-68 dBc / Hz @ 100 Hz
Output Spurious	-60 dBc max. -65 dBc typ.
Optional	1:1/1:2 Redundancy Configuration; 1:1 Redundancy Kit
IF IN & Ref.	10M

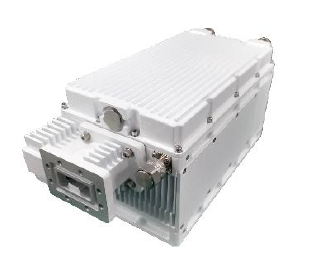

Block Up-Converter (BUC) — RGUC-C High Power, frequency S: 5.850-6.425 GHz E: 5.850-6.725 GHz, output 80W, 100W.

1 28

Frequency	S: 5.850-6.425 GHz E: 5.850-6.725 GHz
Power/Output	80W, 100W
Input Power	85 to 265 VAC (47-63 Hz)
Power Consumption	80W BUC 100W BUC
RF Output VSWR	1.25:1
IF Input VSWR	1.5:1
Size (inch)	9.695.355.35
Weight (lbs)	13.2
Operating Temperature	-40 to +60oC (guarantee)
Humidity	0-100% (condensing)
Altitude	0-15,000 feet ASL
IF Frequency	950-1525 MHz 950-1825 MHz
External Ref	10 MHz, 05 dBm
Output Power	80W BUC 100W BUC
Rated/Saturated	49 dBm 50 dBm
PLin1	48 dBm 49 dBm
PLin2	47 dBm 48 dBm
PLin	46 dBm 47 dBm
Small Signal Gain	75 dB
Gain Variation	1 dB p-p / 36 MHz
Gain stability	3 dB p-p
Gain Adjustment	20 dB (55-75 dB, Step: 0.1 dB)
TX noise density	-76 dBm/Hz
RX noise density	-156 dBm/Hz
Phase Noise	-65 dBc / Hz @ 100 Hz
Output Spurious	-60 dBc
C Band	100W BUC
Optional	1:1 Redundancy Kit

Block Up-Converter (BUC) — RGUC-C Low Power (IFL), frequency S: 5.850-6.425 GHz E: 5.850-6.725 GHz, output 5W, 8W.

1 25

Frequency	S: 5.850-6.425 GHz E: 5.850-6.725 GHz
Power/Output	5W, 8W
Input Power	+18 to +36 vDC via IFL
Power Consumption	5W BUC 8W BUC
RF Output VSWR	2:1
IF Output VSWR	2:1
Size (inches)	6.94.52.5
Weight (lbs)	3.3
Operating Temperature	-40 to +60oC
Humidity	0-100% (condensing)
Altitude	0-10,000 feet ASL
IF Frequency	950-1525 MHz 950-1825 MHz
External Ref	10 MHz, 0  5 dBm
Output Power	5W BUC 8W BUC
Saturated	37 dBm 39 dBm
Plin1	36 dBm 38 dBm
Plin2	35 dBm 37 dBm
Plin	34 dBm 36 dBm
ACPR (3dB back off rated) -	26 dBc
Small Signal Gain	60 dB
Gain Variation	1 dB p-p / 36 MHz
Gain stability	4 dB p-p
RX noise density	-87 dBm/4 KHz @3.4-4.8 GHz
Phase Noise	-65 dBc / Hz @ 100 Hz
Output Spurious	-55 dBc

Block Up-Converter (BUC) — RGUC-C Low Power (IFL), frequency S: 5.850-6.425 GHz E: 5.850-6.725 GHz, output 20W, 40W.

1 28

Frequency	S: 5.850-6.425 GHz E: 5.850-6.725 GHz
Power/Output	20W, 40W
PT02E	-14-19P
DC Version	+36 ~ +72 VDC (optional)
AC Version	+85 to +265 VAC (47-63Hz)
Power Consumption	25W BUC 40W BUC
RF Output VSWR	1.25:1
IF Input VSWR	1.5:1
Size (inches)	10.15.34.5 10.15.35.3
Weight (lbs)	9.7 10.6
Operating Temperature	-40 to +60oC
Humidity	0-100% (condensing)
Altitude	0-15,000 feet ASL
RF Frequency	5.850-6.425 GHz 5.850-6.725 GHz
IF Frequency	950-1525 MHz 950-1825 MHz
Local Frequency	4.9 GHz 4.9 GHz
External Ref	10MHz, 0±5dBm
Output Power	25W BUC 40W BUC
Rated/Saturated	44dBm 46dBm
PLin1	43dBm 45dBm
PLin2	42dBm 44dBm
PLin	41dBm 43dBm
Small Signal Gain	70dB
Gain Variation	1dB p-p/36MHz
Gain Adjustment	20dB (50-70dB, Step: 0.1dB)
Phase Noise	-65dBc/Hz@100Hz
IF &	10 MHz IN
Optional	1:1 Redundancy Configuration; 1:1 Redundancy Kit

Block Up-Converter (BUC) — RGUC-D Mid Power, frequency S: 17.3-18.1 GHz E: 18.1-18.4 GHz, output 20W, 40W.

1 27

Frequency	S: 17.3-18.1 GHz E: 18.1-18.4 GHz
Power/Output	20W, 40W
RF Frequency	17.3-18.GHz 18.1-18.4GHz
IF Frequency	950-1750MHz 1150-1450MHz
Local Frequency	16.35 GHz 16.95 GHz
External Ref	10MHz, 0±5dBm
Output Power	20W 40W
Rated/Saturated	43dBm 46dBm
PLin1	42dBm 45dBm
PLin2	41dBm 44dBm
PLin3	40dBm 43dBm
Small Signal Gain	70dB
Gain Variation	0.25dB p-p/1MHz
Gain stability	3dB p-p
Gain Adjustment	20dB (Step: 0.5dB)
Phase Noise	-62dBc/Hz@100Hz
Output Spurious	-55dBc
R G U C - D a b b -	4 8 R E
Input Power	+36 to +72 vDC
Power Consumption	20W 40W
RF Output VSWR	1.25:1
IF Input VSWR	1.5:1
Size (inches)	8.115.353.47
Weight (lbs)	7.2 7.7
Operating Temperature	-40 to +60oC
Humidity	0-100% (condensing)
Altitude	0-10,000 feet ASL

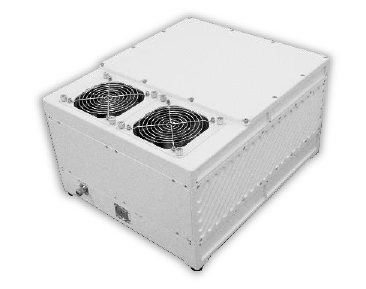

Block Up-Converter (BUC) — RGUC-U High Power, frequency S: 14.00-14.50 GHZ E: 13.75-14.50 GHZ, output 400W, 500W.

1 33

Frequency	S: 14.00-14.50 GHZ E: 13.75-14.50 GHZ
Power/Output	400W, 500W
J3 AC Power Supply ACS02E-16-10P	200 to 240 VAC (47-63 Hz) Power for BUC
PT02E	-14-19P
PT0	2E-12-1 4S
Input Power	200 to 240 VAC (47-63 Hz)
Power Consumption	400W BUC 500W BUC
RF Output VSWR	1.25:1
IF Input VSWR	1.5:1
Ethernet Connector RJ45 (Ethernet,	100/1000 MHz)
Size (inches)	17.72x14.97x9.53
Weight (lbs)	66.13
Operating Temperature	-40 to +60oC
Humidity	0-100% (condensing)
Altitude	0-10,000 feet ASL
IF Frequency	950-1450 MHz 950-1700 MHz
LO Frequency	13.05 GHz 12.80 GHz
External Ref	10 MHz, 0  5 dBm
Output Power	400W BUC 500W BUC
Rated/Saturated	56 dBm 57 dBm
PLin1	55 dBm 56 dBm
PLin2	54 dBm 55 dBm
PLin	53 dBm 54 dBm
Small Signal Gain	80 dB
Gain Variation	1 dB p-p / 36 MHz
Gain stability	3 dB p-p
Gain Adjustment	60-80dB (20 dB, Step by 0.1 dB)
TX noise density	-82 dBm/Hz
RX noise density	-156 dBm/Hz (10.7-12.75 GHz)
Phase Noise	-65 dBc / Hz @ 100 Hz
Output Spurious	-60 dBc
Optional	1:1/1:2 Redundancy Configuration; 1:1 Redundancy Kit
IF IN & Ref.	10M

Block Up-Converter (BUC) — RGUC-U High Power, frequency S: 14.00-14.50 GHZ E: 13.75-14.50 GHZ, output 200W, 250W.

1 30

Frequency	S: 14.00-14.50 GHZ E: 13.75-14.50 GHZ
Power/Output	200W, 250W
PT02E	-14-19P PT0 2E-12-1 4S
WITH	4-M4X0.7 DEPTH 8
Input Power	85 to 265 VAC (47-63 Hz)
Power Consumption	200W BUC 250W BUC
RF Output VSWR	1.25:1
IF Input VSWR	1.5:1
Size (inches)	12.598.667.87
Weight (lbs)	30.86
Operating Temperature	-40 to +60oC
Humidity	0-100% (condensing)
Altitude	0-10,000 feet ASL
IF Frequency	950-1450 MHz 950-1700 MHz
External	10 MHz, 0  5 dBm
Output Power	200W BUC 250W BUC
Rated/Saturated	53 dBm 54 dBm
PLin1	52 dBm 53 dBm
PLin2	51 dBm 52 dBm
PLin3	50 dBm 51dBm
IMD3 (3dB from rated) -	25 dBc
Small Signal Gain	75 dB
Gain Variation	1 dB p-p / 36 MHz
Gain stability	3 dB p-p
Gain Adjustment	20 dB (Step: 0.1 dB)
TX noise density	-76 dBm/Hz @max gain
RX noise density	-156 dBm/Hz
Phase Noise	-65 dBc / Hz @ 100 Hz
Output Spurious	-60 dBc
Optional	1:1 Redundancy Configuration; 1:1 Redundancy Kit

Block Up-Converter (BUC) — RGUC-U High Power, frequency S: 14.00-14.50 GHZ E: 13.75-14.50 GHZ, output 100W, 120W.

1 27

Frequency	S: 14.00-14.50 GHZ E: 13.75-14.50 GHZ
Power/Output	100W, 120W
Input Power	85 to 265 VAC (47-63 Hz)
Power Consumption	100W BUC 120W BUC
RF Output VSWR	1.25:1
IF Input VSWR	1.5:1
Size (inches)	9.75.35.3
Weight (lbs)	12.5
Operating Temperature	-40 to +60oC (guarantee)
Humidity	0-100% (condensing)
Altitude	0-10,000 feet ASL
IF Frequency	950-1450 MHz 950-1700 MHz
External Ref	10 MHz, 0  5 dBm
Output Power	100W BUC 120W BUC
Rated/Saturated	50 dBm 50.8 dBm
PLin1	49 dBm 49.8 dBm
PLin2	48 dBm 48.8 dBm
PLin	47 dBm 47.8 dBm
IMD3 (3dB from rated) -	25 dBc
Small Signal Gain	75 dB
Gain Variation	1 dB p-p / 36 MHz
Gain stability	3 dB p-p
Gain Adjustment	55-75 dB (Step: 0.1 dB)
Phase Noise	-65 dBc / Hz @ 100 Hz
Output Spurious	-60 dBc
KU 120W BUC KU	120W BUC
Optional	1:1 Redundancy Configuration; 1:1 Redundancy Kit

Block Up-Converter (BUC) — RGUC-U High Power, frequency S: 14.00-14.50 GHZ E: 13.75-14.50 GHZ, output 60W, 80W.

1 26

Frequency	S: 14.00-14.50 GHZ E: 13.75-14.50 GHZ
Power/Output	60W, 80W
Input Power	85 to 265 VAC (47-63 Hz)
Power Consumption	60W BUC 80W BUC
RF Output VSWR	1.25:1
IF Input VSWR	1.5:1
Size (inches)	8.15.35.3
Weight (lbs)	10.58
Operating Temperature	-40 to +60oC (guarantee)
Humidity	0-100% (condensing)
Altitude	0-10,000 feet ASL
IF Frequency	950-1450 MHz 950-1700 MHz
External Ref	10 MHz, 0  5 dBm
Output Power	60W BUC 80W BUC
Rated/Saturated	47.8 dBm 49 dBm
PLin1	47 dBm 48 dBm
PLin2	46 dBm 47 dBm
PLin	45 dBm 46 dBm
Small Signal Gain	70 dB
Gain Variation	1 dB p-p / 36 MHz
Gain stability	3 dB p-p
Gain Adjustment	20 dB (50-70 dB, Step: 0.1 dB)
Phase Noise	-63 dBc / Hz @ 100 Hz
Output Spurious	-60 dBc
Optional	1:1 Redundancy Kit; 1:1 Redundancy Configuration
KU 80W BUC KU	80W BUC

Block Up-Converter (BUC) — RGUC-U Low Power (IFL or MS), frequency S: 14.00-14.50 GHZ E: 13.75-14.50 GHZ, output 8W, 10W, 16W, 20W.

1 27

Frequency	S: 14.00-14.50 GHZ E: 13.75-14.50 GHZ
Power/Output	8W, 10W, 16W, 20W
Input Power	+18 to +56 VDC
Power Consumption	8W
IF Input VSWR	1.5:1
Via MS Connector	4 Pin from PT02E-14-12P(072)
M&C available	8 Pin from PT02E-14-12P(072)
Size (inches)	5.93.152.56
Weight (lbs)	2.2
Operating Temperature	-40 to +60oC
Humidity	0-100% (condensing)
Altitude	0-10,000 feet ASL
IF Frequency	950-1450 MHz 950-1700 MHz
External Ref	10 MHz, 0  5 dBm
Output Power	8W
Prated (dBm)	39 40 42 43
PLin1 (dBm)	38 39 41 42
PLin2 (dBm)	37 38 40 41
PLin (dBm)	36 37 39 40
IMD3 (3dB from rated)	-25dBc
Small Signal Gain	8W
No M&C (fixed)	65 65 70 70
With M&C (1dB steps)	50-65 50-65 50-70 50-70
Gain Variation	1 dB p-p / 36MHz
Gain stability	3 dB p-p
Phase Noise	-60 dBc / Hz @ 100Hz
Output Spurious	-55dBc

Block Up-Converter (BUC) — RGUC-U Low Power (IFL), frequency S: 14.00-14.50 GHZ E: 13.75-14.50 GHZ, output 6W, 8W.

1 24

Frequency	S: 14.00-14.50 GHZ E: 13.75-14.50 GHZ
Power/Output	6W, 8W
Input Power	+18 to +36 VDC
Power Consumption	6W BUC 8W BUC
RF Output VSWR	2:1
Size (inches)	6.84.02.0
Weight (lbs)	2.6
Operating Temperature	-40 to +60 oC -40 to +55 °C
Humidity	0-100% (condensing)
Altitude	0-10,000 feet ASL
RF Frequency	14.00-14.50 GHz 13.75-14.50 GHz
IF Frequency	950-1450 MHz 950-1700 MHz
External Ref	10 MHz, 0  5 dBm
Output Power	6W BUC 8W BUC
Saturated	37.8 dBm 39 dBm
Plin1	36.8 dBm 38 dBm
Plin2	36 dBm 37 dBm
Plin	35.5 dBm 36 dBm
Small Signal Gain	60 dB
Gain Variation	1 dB p-p / 36 MHz
Gain stability	4 dB p-p
Rx Noise Density	-144 dBm/Hz (10.70-12.75 GHz )
Phase Noise	-60 dBc / Hz @ 100 Hz
Output Spurious	-50 dBc

Block Up-Converter (BUC) — RGUC-U Low Power (IFL), frequency S: 14.00-14.50 GHZ E: 13.75-14.50 GHZ, output 6W.

1 22

Frequency	S: 14.00-14.50 GHZ E: 13.75-14.50 GHZ
Power/Output	6W
BOTH SIDE M4 DEPTH	6
Input Power	+18 to +36 vDC via IFL
RF Output VSWR	2:1
Size (inches)	6.83.31.9
Weight (lbs)	2.4
Operating Temperature	-40 to +60oC
Humidity	0-100% (condensing)
Altitude	0-10,000 feet ASL
IF Frequency	950-1450 MHz 950-1700 MHz
External Ref	10 MHz, 0  5 dBm
Saturated	38.3 dBm
PLIN1	37.3 dBm
PLIN2	36.3 dBm
PLIN	35.3 dBm
IMD3 (3dB from Psat) -	24 dBc
Small Signal Gain	64 dB
Gain Variation	1 dB p-p / 36 MHz
Gain stability	3 dB p-p
Phase Noise	-60 dBc / Hz @ 100 Hz
Output Spurious	-50 dBc

Block Up-Converter (BUC) — RGUC-U Low Power (IFL), frequency S: 14.00-14.50 GHZ E: 13.75-14.50 GHZ, output 4W.

1 19

Frequency	S: 14.00-14.50 GHZ E: 13.75-14.50 GHZ
Power/Output	4W
IF Frequency	950-1450 MHz 950-1700 MHz
External Ref	10 MHz, 0  5 dBm
Saturated	36.5 dBm
Prated	36.0 dBm
Small Signal Gain	63 dB
Gain Variation	1 dB p-p / 36 MHz
Gain stability	5 dB p-p
Rx Noise Density	-144 dBm/Hz
Phase Noise	-60 dBc / Hz @ 100 Hz
Output Spurious	-50 dBc
Input Power	+18 to +36 vDC via IFL port
RF Output VSWR	2:1
Size (inches)	3.813.751.85
Weight (lbs)	1.1
Operating Temperature	-40 to +60oC
Humidity	0-100% (condensing)
Altitude	0-10,000 feet ASL

Block Up-Converter (BUC) — RGUC-U Low Power (IFL), frequency S: 14.00-14.50 GHZ E: 13.75-14.50 GHZ, output 3W.

1 23

Frequency	S: 14.00-14.50 GHZ E: 13.75-14.50 GHZ
Power/Output	3W
Ku Band	3W
WITH	4-M4x0.7（8mm Depth）
Input Power	+12 to +36 VDC via IFL port
RF Output VSWR	2:1
IF Output VSWR	2:1
Size (inches)	3.752.671.65
Weight (lbs)	0.77
Operating Temperature	-40 to +55oC
Humidity	0-100% (condensing)
Altitude	0-10,000 feet ASL
IF Frequency	950-1450 MHz 950-1700 MHz
External Ref	10 MHz, 0 ± 5 dBm
Saturated	34.5 dBm typ.
Rated	34 dBm
IMD3	-24 dBc typ. @31dBm
Small Signal Gain	53 dB min.
Gain Variation	1 dB p-p / 36 MHz
Gain stability	4 dB p-p
Rx Noise Density	-144 dBm/Hz
Phase Noise	-73 dBc / Hz @ 1 KHz
Output Spurious	-50 dBc

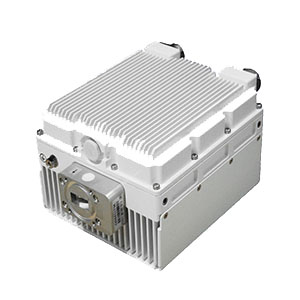

Block Up-Converter (BUC) — RGUC-U Mid Power, frequency S: 14.00-14.50 GHZ E: 13.75-14.50 GHZ, output 40W, 50W, 60W.

1 29

Frequency	S: 14.00-14.50 GHZ E: 13.75-14.50 GHZ
Power/Output	40W, 50W, 60W
Power Consumption	40W BUC 50W BUC 60W BUC
RF Output VSWR	1.25:1
IF Input VSWR	2:1
Power	4 pins for power supply
M&C	8 pins for M&C (RS485/Eth)
Size (inches)	6.293.932.99
Weight (lbs)	3.3
Operating Temperature	-40 to +60oC (guaranteed)
Humidity	0-100% (condensing)
Altitude	0-10,000 feet ASL
IF Frequency	950-1450 MHz 950-1700 MHz
External Ref	10 MHz, 0  5 dBm
Output Power	40W BUC 50W BUC 60WBUC
Saturated	46.5 dBm 47 dBm 47.8 dBm
Rated	46 dBm 47 dBm 47.5 dBm
PLin1	45 dBm 46 dBm 46.5 dBm
PLin2	44 dBm 45 dBm 45.5 dBm
PLin	43 dBm 44 dBm 44.5 dBm
IMD3 (3dB back off Prated)	-25 dBc
Small Signal Gain	70 dB
Gain Variation	1 dB p-p / 36 MHz
Gain stability	3 dB p-p
Gain Adjustment	20 dB (50-70 dB, Step: 0.1 dB)
Phase Noise	-75 dBc/Hz @ 1 KHz
Output Spurious	-55 dBc
Optional	1:1 Redundancy Kit
SPLITTERKU	60W BUC KU 60W BUC

Block Up-Converter (BUC) — RGUC-U Mid Power, frequency S: 14.00-14.50 GHZ E: 13.75-14.50 GHZ, output 30W, 40W.

1 24

Frequency	S: 14.00-14.50 GHZ E: 13.75-14.50 GHZ
Power/Output	30W, 40W
M4 DEPTH	8
Input Power	+36 to +56 VDC
Power Consumption	30W BUC 40W BUC
IF Input VSWR	1.5:1
Size (inches)	5.93.153.0
Weight (lbs)	2.9
Operating Temperature	-40 to +60oC
Humidity	0-100% (condensing)
Altitude	0-10,000 feet ASL
IF Frequency	950-1450 MHz 950-1700 MHz
External Ref	10 MHz, 0  5 dBm
Output Power	30W BUC 40W BUC
Saturated	45 dBm 46 dBm
PLin1	44 dBm 45 dBm
PLin2	43 dBm 44 dBm
PLin	42 dBm 43 dBm
No M&C (fixed)	70 dB
With M&C (1dB steps)	50-70 dB
Gain Variation	1 dB p-p / 36MHz
Gain stability	3 dB p-p
Phase Noise	-60 dBc / Hz @ 100Hz
Output Spurious	-55 dBc

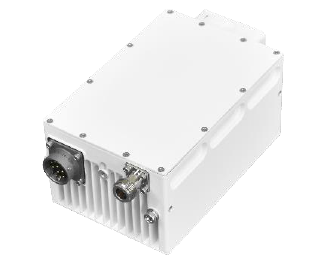

Block Up-Converter (BUC) — RGUC-U Mid Power (Dual Band), frequency Band 1: 12.75-13.5GHz Band 2: 13.75-14.5GHz, output 8W, 16W, 25W.

1 24

Frequency	Band 1: 12.75-13.5GHz Band 2: 13.75-14.5GHz
Power/Output	8W, 16W, 25W
Power Consumption	8W BUC 16W BUC 25W BUC
RF Output VSWR	1.25 : 1
IF Input VSWR	1.5 : 1
Size (inch)	5.913.942.95
Weight (lbs)	2.97
Operating Temperature	-40 to +60 oC (guarantee)
Humidity	0-100 % (condensing)
Altitude	0-10,000 feet ASL
IF Frequency	950-1450 MHz 950-1700 MHz
External Ref	10 MHz, 0  5 dBm
Output Power	8W BUC 16W BUC 25W BUC
Saturated	39.5 dBm 42.5 dBm 44.5 dBm
Rated	39.0 dBm 42.0 dBm 44.0 dBm
PLin1	38.0 dBm 41.0 dBm 43.0 dBm
PLin2	37.0 dBm 40.0 dBm 42.0 dBm
PLin	36.0 dBm 39.0 dBm 41.0 dBm
Small Signal Gain	55-70 dB
Gain Variation	1 dB p-p / 36 MHz
Gain stability	3 dB p-p / band
Gain Adjustment	15 dB (Step: 1 dB)
Phase Noise	-60 dBc / Hz @100 Hz
Output Spurious	-55 dBc

Reviews

No reviews yet — reviews come only from verified buyers after a completed request.

Write a review

← All providers

RevGo

About RevGo

Products

RGLN - A

RGLN - A

Description

Specifications

RGLN - A FB

RGLN - A FB

Description

Specifications

RGLN - A Mini

RGLN - A Mini

Description

Specifications

RGLN - U

RGLN - U

Description

Specifications

RGLN - U

RGLN - U

Description

Specifications

RGTR-A

RGTR-A

Description

Specifications

RGTR-A

RGTR-A

Description

Specifications

RGTR-A

RGTR-A

Description

Specifications

RGUC-A Classic

RGUC-A Classic

Description

Specifications

RGUC-A High Power

RGUC-A High Power

Description

Specifications

RGUC-A Low Power

RGUC-A Low Power

Description

Specifications

RGUC-A Mid Power

RGUC-A Mid Power

Description

Specifications

RGUC-A mPower

RGUC-A mPower

Description

Specifications

RGUC-Aa160-ACREN-A0

RGUC-Aa160-ACREN-A0

Description

Specifications

RGUC-C High Power

RGUC-C High Power

Description

Specifications

RGUC-C High Power

RGUC-C High Power

Description

Specifications

RGUC-C High Power

RGUC-C High Power

Description

Specifications

RGUC-C High Power

RGUC-C High Power

Description

Specifications

RGUC-C Low Power (IFL)

RGUC-C Low Power (IFL)

Description

Specifications

RGUC-C Low Power (IFL)
