GAUSS UHF Radio (2W/5W)
GAUSS Srl
PC/104-compatible UHF TT&C transceiver available in 2W and 5W configurations with independent, software-reconfigurable uplink/downlink.
Technical specifications
- Output power
- Up to 37 dBm (~5W)
- Efficiency
- 40% to 50%
- Power input
- 3.3V logic, 7 to 12V amplifier
- Frequency band
- UHF for TT&C
- Protocol
- AX.25 supported
- FEC
- Viterbi k4 (Viterbi k7 & Reed-Solomon on request)
- TNC
- Integrated TNC, KISS interface
- Mode
- Transparent mode supported
- Data rate
- 300 bps to 100 kbps (up to 250 kbps with 4GFSK on request)
- Sensitivity
- -122dBm @1.2kbps, -119dBm @9.6kbps, -109dBm @50kbps
- Beacon
- Configurable autonomous beacon
- Interfaces
- I2C, UART, SPI and CAN-bus
- Modulations
- FSK/MSK/GFSK/GMSK
- Components grade
- Off the shelf industrial / automotive
- Operating temperature
- -40C to +110C
- Form factor
- PC/104 CubeSat compatible kits
- Connectors
- SMA and MCX connectors available
About

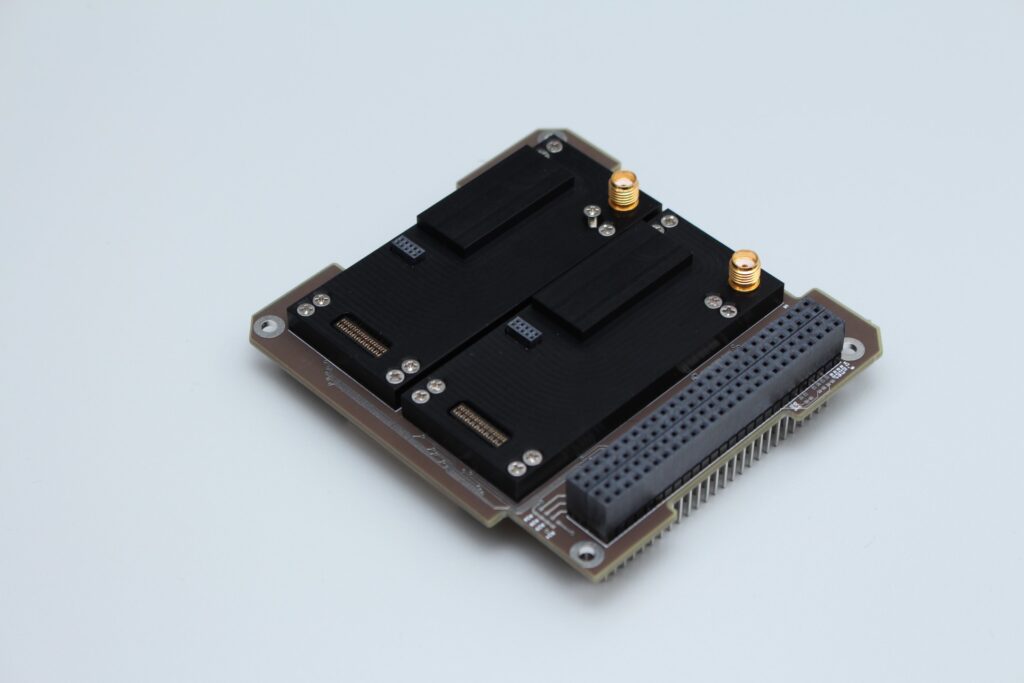

The GAUSS UHF Radio is available in two configurations: a low-power 2W version and a high-power 5W version. The uplink and downlink are totally independent, meaning they can be configured with different frequencies, modulations and protocols. The radio can be reconfigured via software, dynamically changing output power. Thanks to its dimensions, two radios can be stacked on the same PC/104 board, used in parallel or for redundancy. Together with the radio, an adapter board for testing and a computer software interface are included, and it is fully compatible with the GAUSS Mini Ground Dongle for lab testing.
Documentation
- Flyer_Gauss_Radio_UHF_5W-8.pdf eb61decf82.clvaw-cdnwnd.com ↗
- Flyer Radio 2W.pdf eb61decf82.clvaw-cdnwnd.com ↗
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
