Space-based optical (laser) communications flight terminal delivering full-duplex data rates above 10 Gbps.
Xen-Hub
Space-based optical (laser) communications flight terminal delivering full-duplex data rates above 10 Gbps.
Description

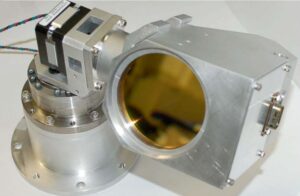

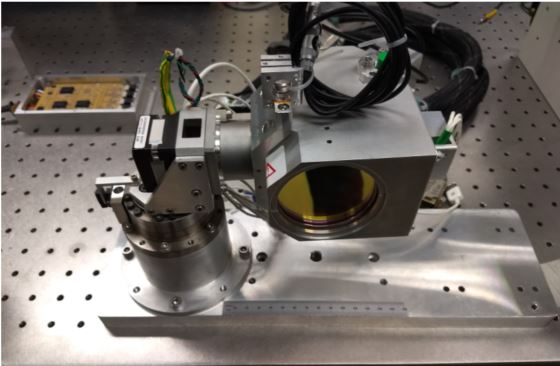

The Xen-Hub is Xenesis's space-qualified optical communications terminal, designed to be integrated onto satellites to provide high-bandwidth laser downlink/uplink capability in place of, or alongside, traditional RF systems. It is built from three core modules: an electronics/photonic modem module, an optical head module, and an EDFA (erbium-doped fiber amplifier) optical amplifier module.
Two optical assemblies (offered in 7 cm and 3.5 cm diameter apertures) enable simultaneous full-duplex transmission and reception. The terminal has been developed and refined through partnerships including a 2018 miniaturization and space-qualification effort with Georgia Tech, and manufacturing by Space Micro Inc. (a Voyager Space company).

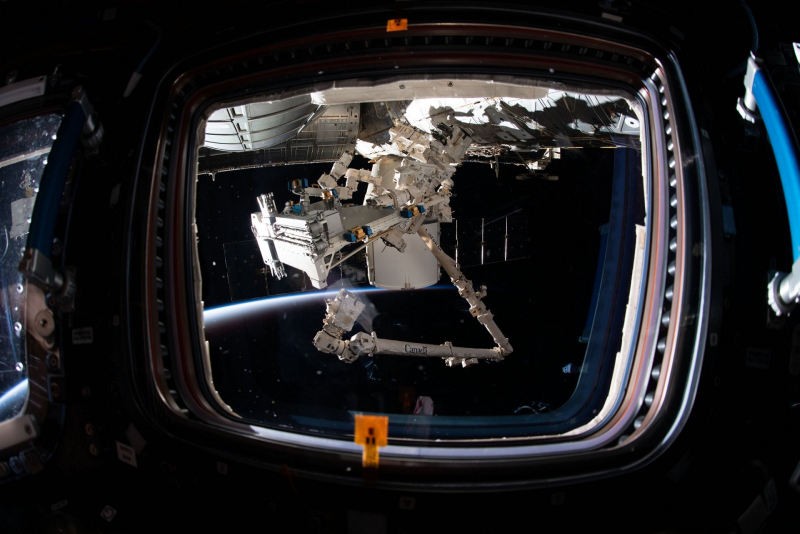

Xen-Hub was demonstrated in orbit via a 2020 Airbus-brokered payload flight to the ISS Bartolomeo external platform. It has since been selected by the U.S. Space Development Agency for Phase 1 and Phase 2 contracts as part of SDA's push toward standardized, interoperable optical crosslink terminals.
Specifications
| Data rate | >10 Gbps |
|---|---|
| Optical aperture options | 7 cm or 3.5 cm diameter (full-duplex) |
| Mass | ~10-15 kg |
| Power consumption | ~60-80 W |
| Service life | 5 years |
| Standards compliance | SDA OCTv3.1 / OCTv4.0 optical terminal standards |
