Micro-satellite platform for 25-40 kg payloads supporting EO optical, SAR, SIGINT, IoT and laser missions.

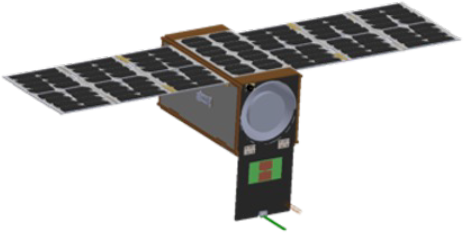

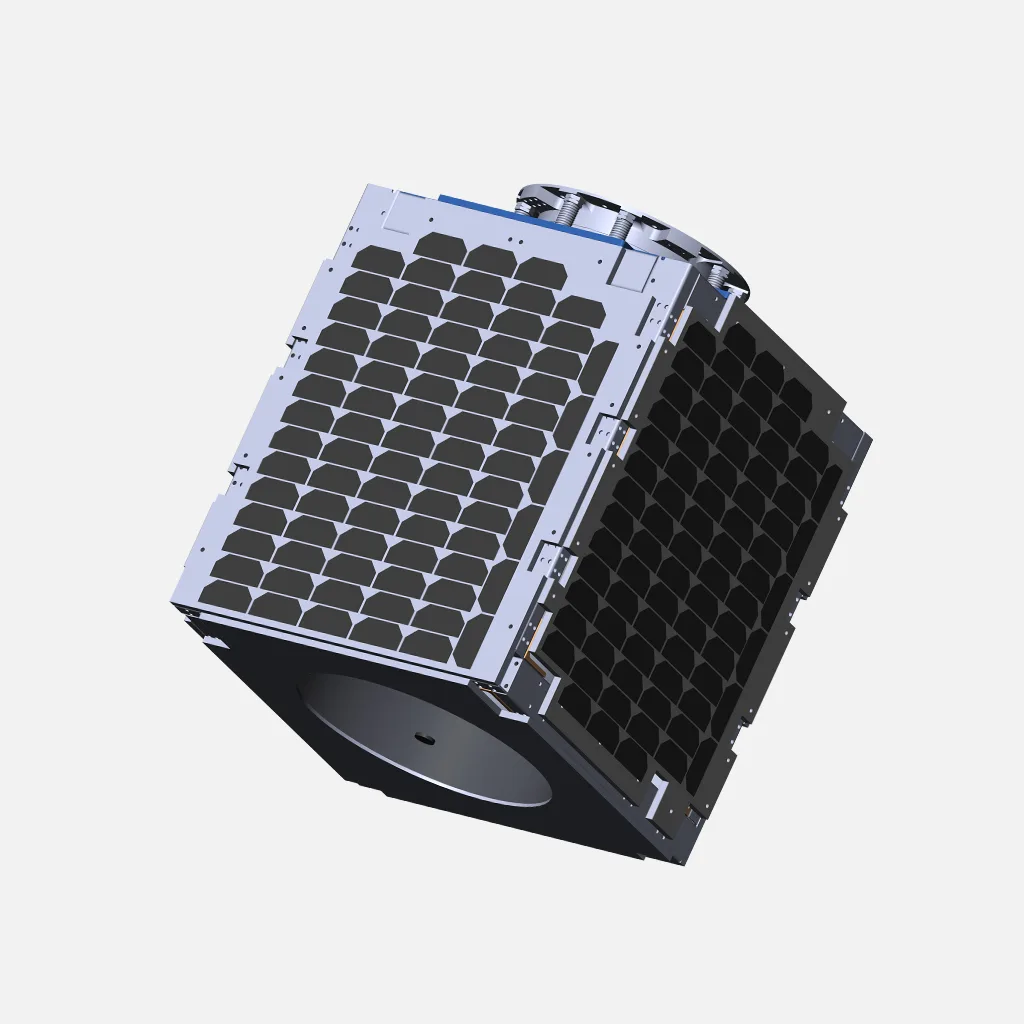

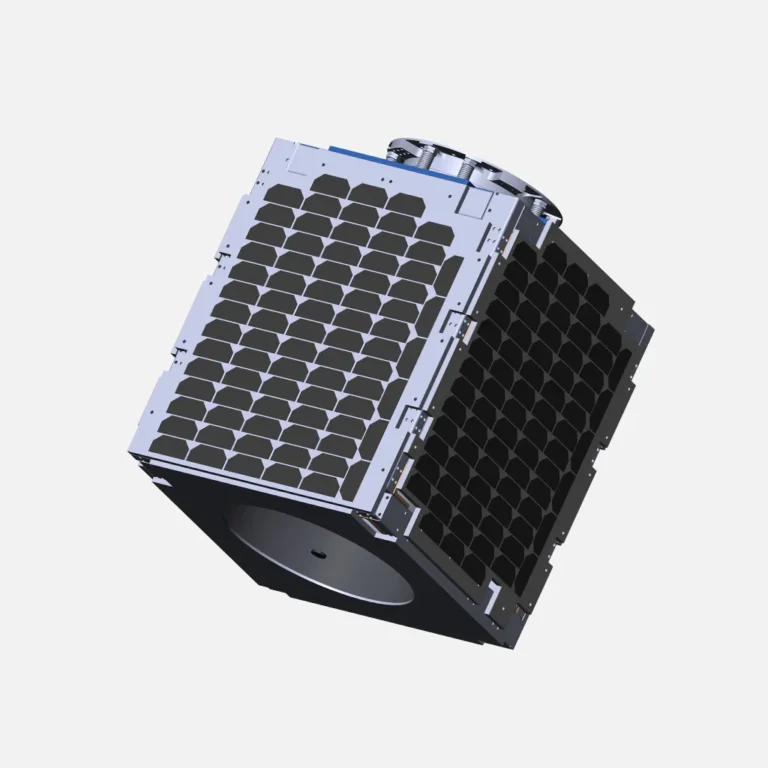

XDSAT M200
Micro-satellite platform for 25-40 kg payloads supporting EO optical, SAR, SIGINT, IoT and laser missions.
Description
XDSAT M200 is a micro-satellite platform in XDLINX Space Labs' XDSAT family, sized to carry 25-40 kg payloads including EO optical, SAR, SIGINT, IoT and laser instruments, running the Antaris SatOS distributed compute stack across bus, payload edge and SDR. It provides 3-axis pointing accuracy and stability of ±0.002° (1-sigma) with 2 star trackers. Power is supplied by 200 W solar panels with 350 Wh of storage, with multiple electric and chemical propulsion systems available. TT&C and software updates run securely via S-band SDR and UHF, with X-band downlink up to 500 Mbps, and ground control through public or private ground stations using Antaris mission control software. XDSAT M200 reached flight heritage in Q4 2024.
Specifications
| Bus type | M200 |
|---|---|
| Bus OS | Antaris SatOS — distributed compute for bus, payload edge and SDR |
| Payload Volume / Mass | 25-40 KG |
| Payloads can support | EO Optical, SAR, Siglnt, IoT, Laser |
| Pointing Accuracy & Stability / Orbit Knowledge | ±0.002° (1-sigma), 3 axes, 2 Trackers |
| Power Storage | 350 Wh |
| Solar Panels | 200 W |
| Propulsion | Multiple Electric & Chemical Propulsion Systems Available |
| TT&C, SW Update | Secure & Flexible via S-Band SDR & UHF |
| Data Downlink | X-band up to 500Mbps |
| Ground Control | Public or Private GS with Antaris MC Software |
| Heritage | Q4-2024 |
