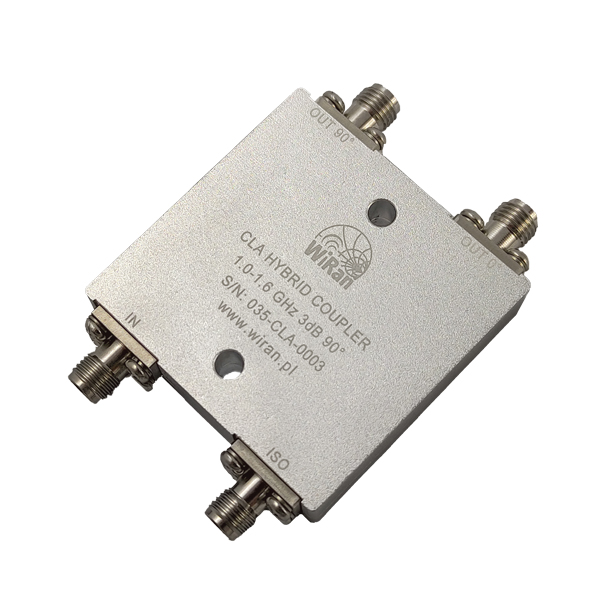

L-Band Hybrid Coupler
CubeSat-compatible L-band 90-degree hybrid coupler, 1000-1600 MHz, high isolation and power handling.
Description
The WiRan L-Band Hybrid Coupler (CLA) allows easy and reliable splitting of an input RF signal equally between two output ports with a 90-degree phase shift across 1000-1600 MHz, and can also work in reverse to combine 90-degree phase-shifted signals. It offers small dimensions, excellent phase and amplitude balance, low insertion loss and VSWR, and high isolation and power handling, making it suitable for compact nanosatellite platforms.
Specifications
| Frequency Range | 1000-1600 |
|---|---|
| Insertion Loss (above nominal split) | <=0.4 |
| Return Loss | >=20 |
| Isolation | >=23 |
| Nominal Split | 3.01±0.3 |
| Amplitude Balance | <=±0.5 |
| Phase Balance | <=±3 |
| Power Handling | <=30 |
| Impedance | 50 |
| Port Connectors | SMA female connectors |
| Operating Temperature | -75 / +90 |
| Weight | 60 |
