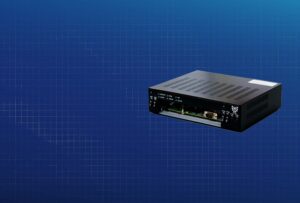

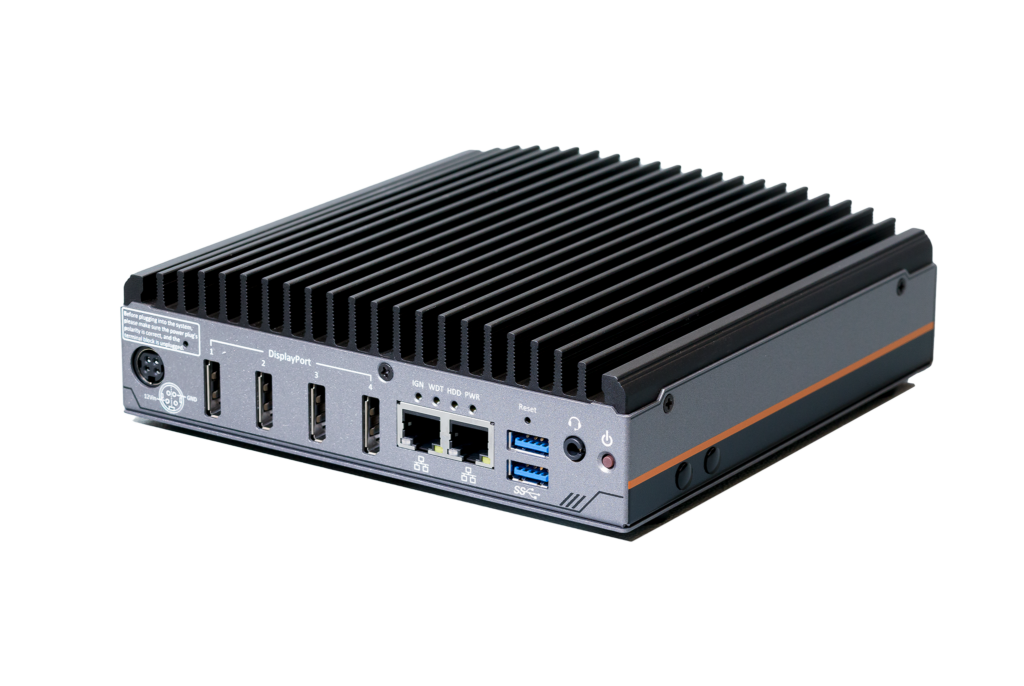

Unibap ADS (Application Development System)
Off-the-shelf ground development platform matching the iX10/iX5 flight hardware architecture, letting mission customers develop and verify software before flight.
Description

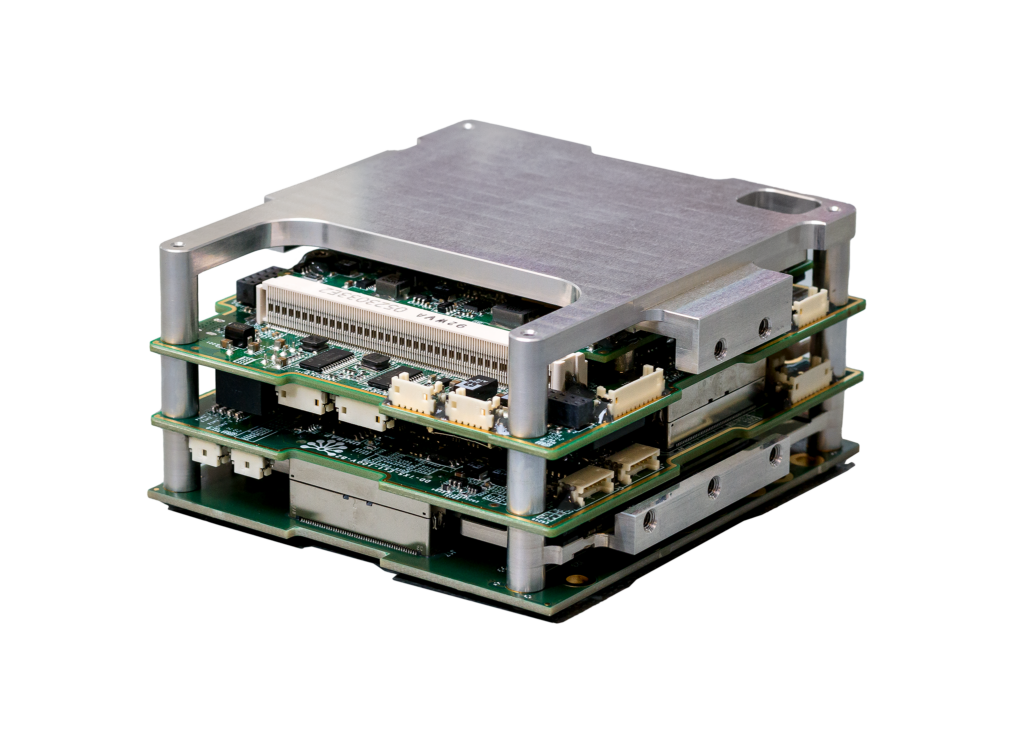

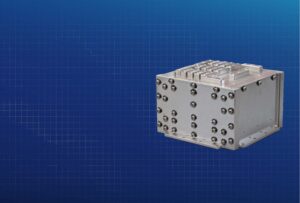

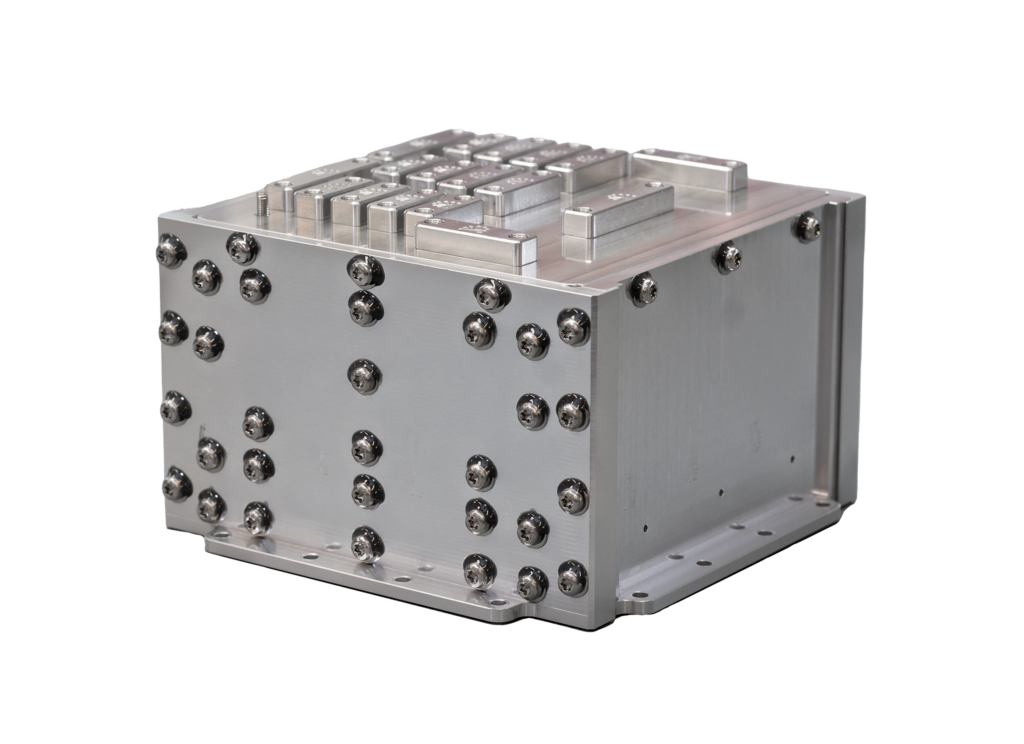

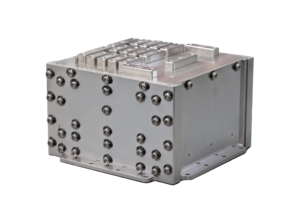

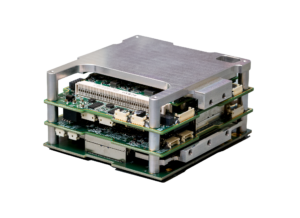

The ADS (Application Development System) is Unibap's off-the-shelf development platform, delivered ready-to-use after order so customers can begin software development without waiting on flight-hardware availability. It supports a develop-on-ADS, verify-on-EM (engineering model), fly-on-FM (flight model) workflow, and uses hardware architecture identical to the flight-ready iX10 and iX5 computers. Unibap has used this workflow to bring more than 40 third-party applications to space. Two variants are available: the iX10 ADS-X2, matching the iX10 architecture, and the iX5 ADS, matching the iX5 architecture.
Specifications
| iX10 ADS-X2 CPU | AMD Ryzen V1000 |
|---|---|
| iX10 ADS-X2 GPU | 8 x AMD Vega |
| iX10 ADS-X2 VPU | Intel Movidius Myriad X and Hailo-8 |
| iX10 ADS-X2 RAM | 2 x 16 GB DDR4 |
| iX10 ADS-X2 Storage | 512 GB SATA SSD |
| iX10 ADS-X2 I/O | 4x DisplayPort, 4x 1000BASE-T Ethernet, 2x RS232, 2x USB 3.1 + 2x USB 2.0 |
| iX5 ADS CPU | AMD Steppe Eagle |
| iX5 ADS GPU | AMD Radeon |
| iX5 ADS VPU | Myriad X USB Adapter |
| iX5 ADS RAM | 2 GB DDR3 ECC |
| iX5 ADS Storage | 128 GB SATA SSD + MicroSD/MMC |
| iX5 ADS I/O | 1x CAN 2.0b, 1x HDMI, 2x 1000BASE-T Ethernet, 2x RS232, 2x USB 3.0 + 2x USB 2.0 |
