Umbra SAR Satellite
Umbra's flagship 70 kg X-band SAR microsatellite delivers the highest-resolution commercial synthetic aperture radar imagery available, operating in a growing sun-synchronous constellation.
Description

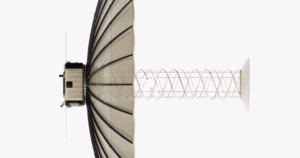

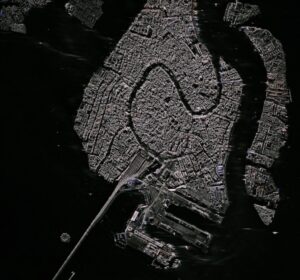

The Umbra SAR satellite is Umbra Space's flagship synthetic aperture radar microsatellite, designed and vertically manufactured in-house at Umbra's Southern California facility. Each ~70 kg spacecraft carries a center-fed parabolic mesh reflector antenna (10 m2 deployed) driven by a 300-watt solid-state power amplifier operating in X-band, sized to fit an EELV Secondary Payload Adapter ring for low-cost rideshare launch. The satellites operate in Spotlight and Extended Dwell imaging modes, providing all-weather, day-and-night imaging that penetrates clouds, rain, smoke, and darkness. In August 2023 Umbra generated a 16 cm resolution SAR image, described as the highest-resolution commercial satellite image ever released, and the constellation regularly delivers 25 cm, 35 cm, 50 cm, and 1 m resolution imagery. Target markets include defense and intelligence, emergency response and disaster management, urban planning, and maritime domain awareness. As of mid-2026 Umbra has launched 12 satellites (Umbra-01 through Umbra-12) toward a planned 32-satellite constellation, all via SpaceX Falcon 9 rideshare missions beginning with Transporter-2 in June 2021 through the Twilight mission in January 2026.
Specifications
| Mass | ~70 kg per satellite |
|---|---|
| Design life | 5 years |
| Frequency band | X-band |
| Antenna | Center-fed parabolic mesh reflector, 10 m² deployed |
| Transmit power | 300 W solid-state power amplifier |
| Best demonstrated resolution | 16 cm (highest-resolution commercial SAR image released, Aug 2023) |
| Standard resolutions | 25 cm, 35 cm, 50 cm, and 1 m |
| Orbit | Sun-synchronous LEO, ~560 km altitude, 97.4° inclination |
| Imaging modes | Spotlight and Extended Dwell |
| Planned constellation size | 32 satellites |
| Satellites launched (mid-2026) | 12 (Umbra-01 through Umbra-12), all via SpaceX Falcon 9 rideshare since Transporter-2 (Jun 2021) |
