Rugged 3U OpenVPX/SOSA-aligned command-and-data-handling system for space, defense, and unmanned platforms.
Fortis VPX Operational Suite
Rugged 3U OpenVPX/SOSA-aligned command-and-data-handling system for space, defense, and unmanned platforms.
Description

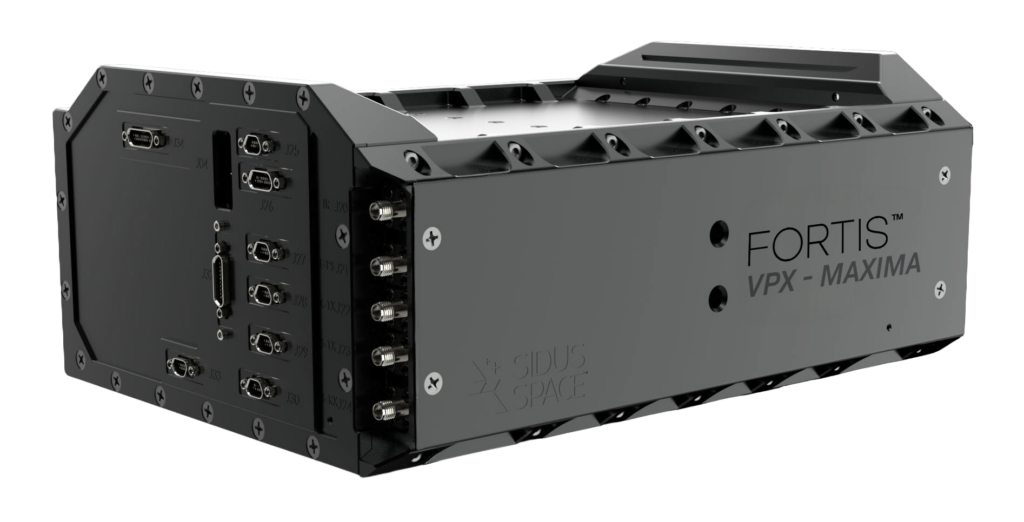

Fortis is a rugged 3U OpenVPX/SOSA-aligned command-and-data-handling system for space, defense, and unmanned platforms, combining a single-board computer, AI/ML processor, position-navigation-and-timing module, software-defined radio, I/O and power cards. It is available as individual cards or as a full VPX Operational Suite in Solo, Flex, or Maxima configurations.
Specifications
| System components | SSBC (Quad-Core ARM, rad-hard PolarFire FPGA, 8GB DDR4), PNT module, SDR (S/X-band), FeatherEdge AI/ML module (NVIDIA Jetson AGX Orin Industrial), microcontroller I/O card, power card |
|---|---|
| I/O | LVDS 4x SpaceWire + Camera Link, Ethernet 4x 1GbE + 2x 10GbE, USB 3.1 Gen1, UART 14x RS-422 + 2x RS-232 |
| Power input | 28VDC/12A, 330W max |
| Operating temperature | -55 C to +125 C |
| Size | 3U OpenVPX-SOSA |
| Radiation tolerance | Up to 100 krad |
