Family of Hall Effect Thrusters from 50 W to 5 kW for cubesats through large GEO platforms.

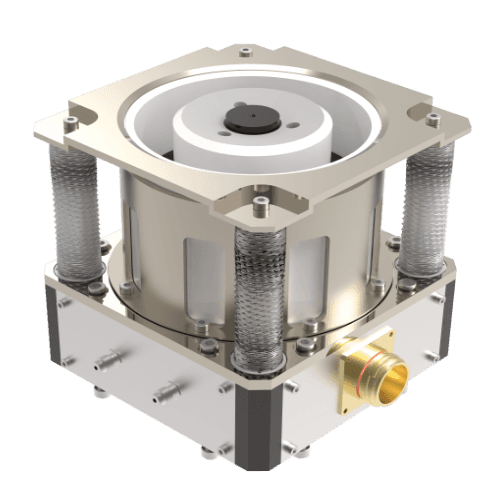

Arka Hall Effect Thruster Series
Family of Hall Effect Thrusters from 50 W to 5 kW for cubesats through large GEO platforms.
Description

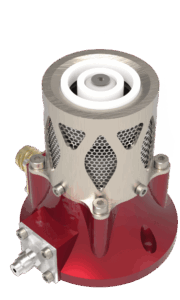

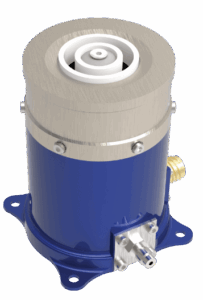

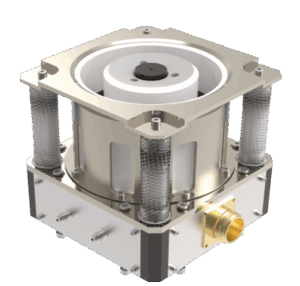

Arka is Bellatrix Aerospace's series of Hall Effect Thrusters (HETs), spanning 50 W to 5 kW of input power to serve everything from CubeSats to large geostationary platforms. Built on more than a decade of electric propulsion experience, the Arka line uses a novel design approach aimed at improving performance, operational life, cost, and weight compared to incumbent HET designs. The series includes five qualified variants: Arka 50, Arka 100, Arka 200, Arka 1500 and Arka 5000, offering thrust levels from single-digit millinewtons up to hundreds of millinewtons and specific impulse from 860 s to 2000 s. ARKA has been space-qualified aboard ISRO's PSLV C-58 POEM-3 mission, where it flew with the world's first heaterless hollow cathode demonstrated in orbit, reducing system complexity and improving reliability versus traditional heated cathodes.
Specifications
| Arka 50 - Thrust | 3 mN |
|---|---|
| Arka 50 - Power | 50 W |
| Arka 50 - Specific impulse | 860 s |
| Arka 100 - Thrust | 7 mN |
| Arka 100 - Power | 100 W |
| Arka 100 - Specific impulse | 1000 s |
| Arka 200 - Thrust | 13.2 mN |
| Arka 200 - Power | 200 W |
| Arka 200 - Specific impulse | 1300 s |
| Arka 1500 - Thrust | 86 mN |
| Arka 1500 - Power | 1.5 kW |
| Arka 1500 - Specific impulse | 1600 s |
| Arka 5000 - Thrust | 260 mN |
| Arka 5000 - Power | 5 kW |
| Arka 5000 - Specific impulse | 2000 s |
