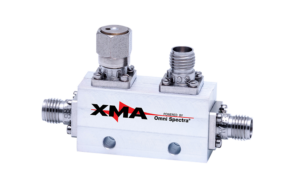

XMA OS2020-6604-06 Directional Coupler, 1-2 GHz
XMA Corporation
Stainless steel SMA directional coupler, 1-2 GHz, 50W, 6 dB coupling, DFARS-compliant.
Technical specifications
- Item #
- OS2020-6604-06
- Description
- Coupler, SMA-f, 1-2GHz, 50W, 6dB
- Add-ons
- DF
- Materials
- SS
- Types
- Directional Coupler
- Connector
- SMA
- Gender 1
- f
- Average Power (Watts)
- 50
- Max Frequency (GHz)
- 2
- Atten./Coupling Options (dB)
- 6
- Cryogenic
- no
About
The XMA OS2020-6604-06 is a DFARS-compliant directional coupler with SMA-female connectors, covering 1-2 GHz with 6 dB coupling and 50 watts average power handling. Directional couplers of this type sample forward/reflected RF power for monitoring and control in satellite ground terminal, telemetry, and payload RF chains.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
