Xiphos Q8 Optical Payload Processor
Xiphos Systems Corporation

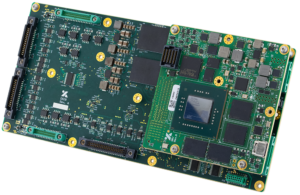

Q8-based daughterboard with dual Camera Link interfaces for high-bandwidth space imaging and remote sensing payloads.
Technical specifications
- Interfaces
- Gigabit Ethernet, Base Camera Link*, Medium Camera Link*, multiple serial interfaces (RS485, RS422), LVDS outputs, PPS inputs and output (*Can be configured as LVDS; Camera Link IP core available from Xiphos)
- Additional Functions
- Heater power control, temperature sensing
- Size
- 150 x 110 x 10 mm (150 x 110 x 17 mm with Q8, no RJ-45 connector)
- Input Voltage
- 9 to 13V
- Operating system
- Linux SDK
- Space hardening
- Radiation effects mitigation & 30krad TID lifetime
About

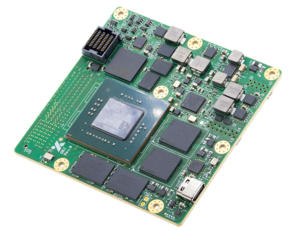

The Xiphos Q8 Optical Payload Processor is a high-performance image processing daughterboard designed to work with the Q8 processor card, featuring two Camera Link interfaces (1x Base and 1x Medium). It allows the Q8 to be inserted into existing systems with high-bandwidth video or imagery streams, running high-performance image processing algorithms on the Q8 processor and FPGA. It is ideal for space applications that require high-performance image processing and is often used in a variety of remote sensing and Earth observation applications.
