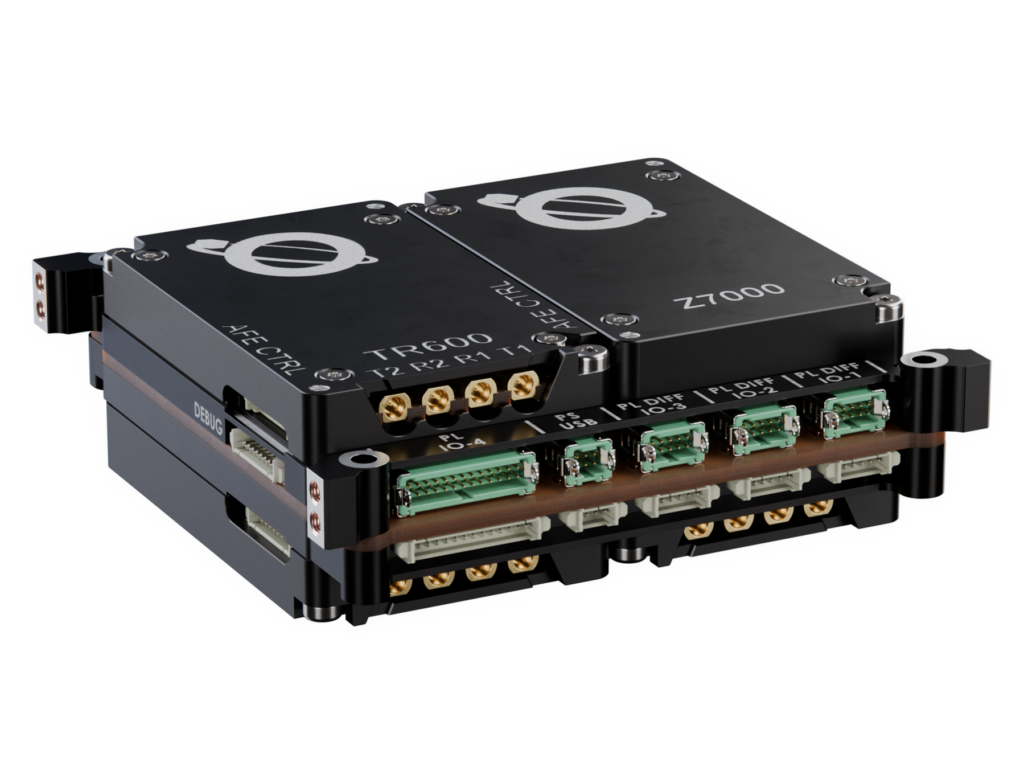

NanoCom SDR MK3 Software Defined Radio
GomSpace
Modular CubeSat SDR platform with Zynq SoC supporting up to 3 TR600 MK3 transceivers, customizable for ISL, SIGINT, IoT, and broadband mission applications.
Technical specifications
- SoC
- Xilinx Zynq® 7030/7045
- Transceivers (max)
- Up to 3× NanoCom TR600 MK3 (2×RX + 2×TX each)
- Store and Forward
- Hardware-ready
- Applications
- ISL/crosslink, SIGINT, broadband, narrowband IoT, NTN relay
- Modular design
- Yes — supports custom RF applications
About
NanoCom SDR MK3 is GomSpace’s software defined radio platform for nanosatellites, standing out for its unique modularity and compact design supporting custom RF applications. At its core is a powerful Zynq®7030/45 System on a Chip (SoC). Its small form factor can incorporate up to three NanoCom TR600 MK3 Transceivers, each offering 2×RX and 2×TX channels, making it a flexible, versatile, and cost-effective multi-channel SDR solution. Equipped with hardware prepared for Store and Forward, the NanoCom SDR MK3 serves as an ideal choice for custom inter-satellite link/crosslink solutions in constellations and Non-Terrestrial Network (NTN) data relay applications. Mission applications include high data rate SIGINT/spectrum monitoring, custom broadband and multiband communications, and narrowband IoT and tracking solutions.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
