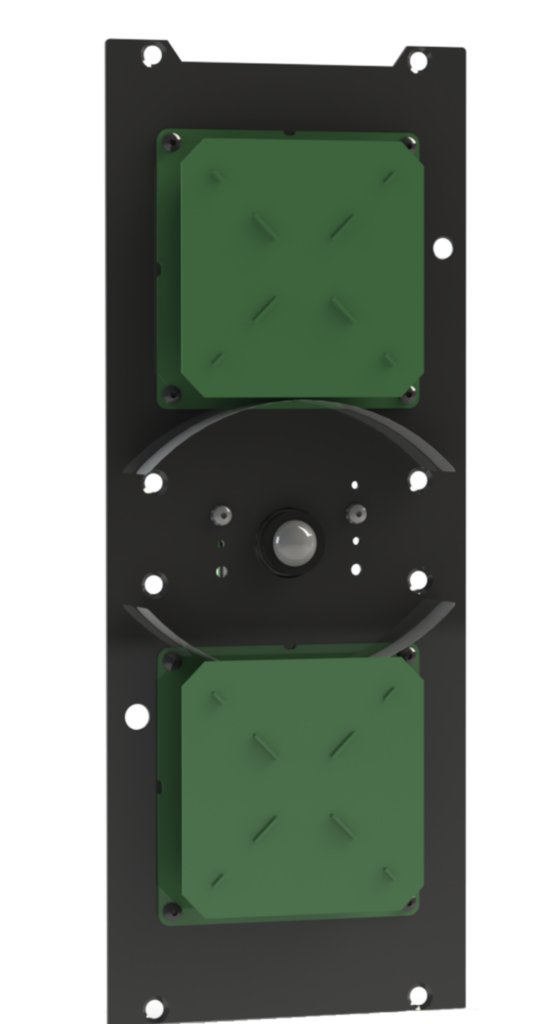

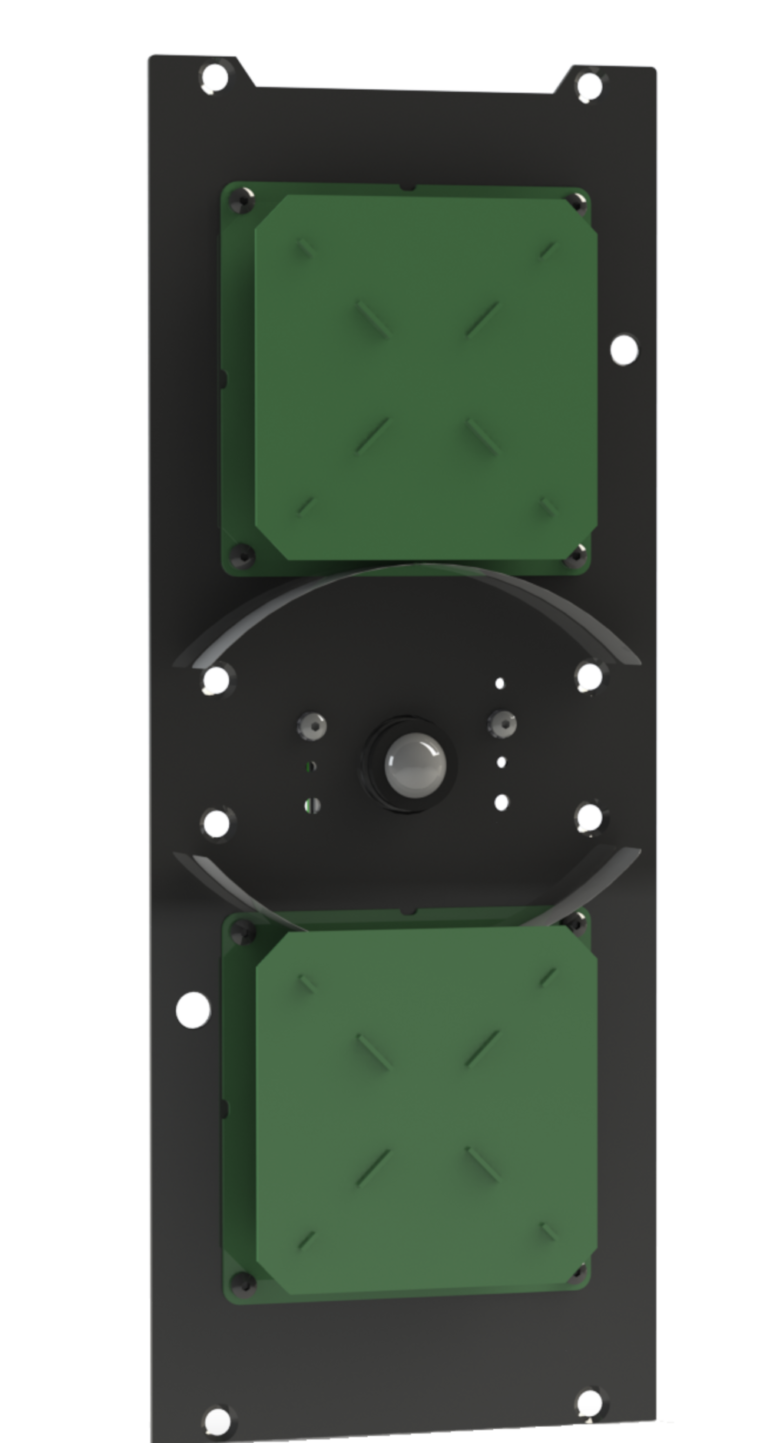

ChallengeOne Camera and Antenna System (CASA)
Combined imaging payload and RHCP antenna module for the ChallengeOne satellite platform, with an 8-megapixel camera and 862-870 MHz antenna.
Description
The Camera and Antenna System (CASA, "Camera et antenne") is the imaging payload module of the ChallengeOne satellite platform, combining an 8-megapixel Earth/asset-imaging camera (3.4 mm focal length, f/2.0) with a right-hand circularly polarized antenna operating in the 862-870 MHz band for image/data downlink support.
Specifications
| Center frequency | 862 to 870 MHz |
|---|---|
| Polarization | R.H.C.P |
| Gain | -16 to -13 dB |
| Impedance | 50 Ohm |
| Camera resolution | 8 megapixels |
| Camera focal distance | 3.4 mm |
| Camera focal ratio | f/2.0 |
| Operating temperature | -30 to +70 °C |
