About SPUTNIX LLC

SPUTNIX LLC is a Russian private space company founded in late 2011 by specialists from the Satellite Technology Division of SCANEX, who had previously developed the attitude control and determination system for the Chibis-M microsatellite (launched January 2012). SPUTNIX became a Skolkovo Innovation Center resident in 2011 and received Skolkovo Foundation funding from August 2012 for microsatellite service-system and platform technology. The company's flagship early product was the TabletSat platform, a 10-12 kg technology-demonstration bus first flown as TabletSat-Aurora on a Dnepr launch vehicle in June 2014.

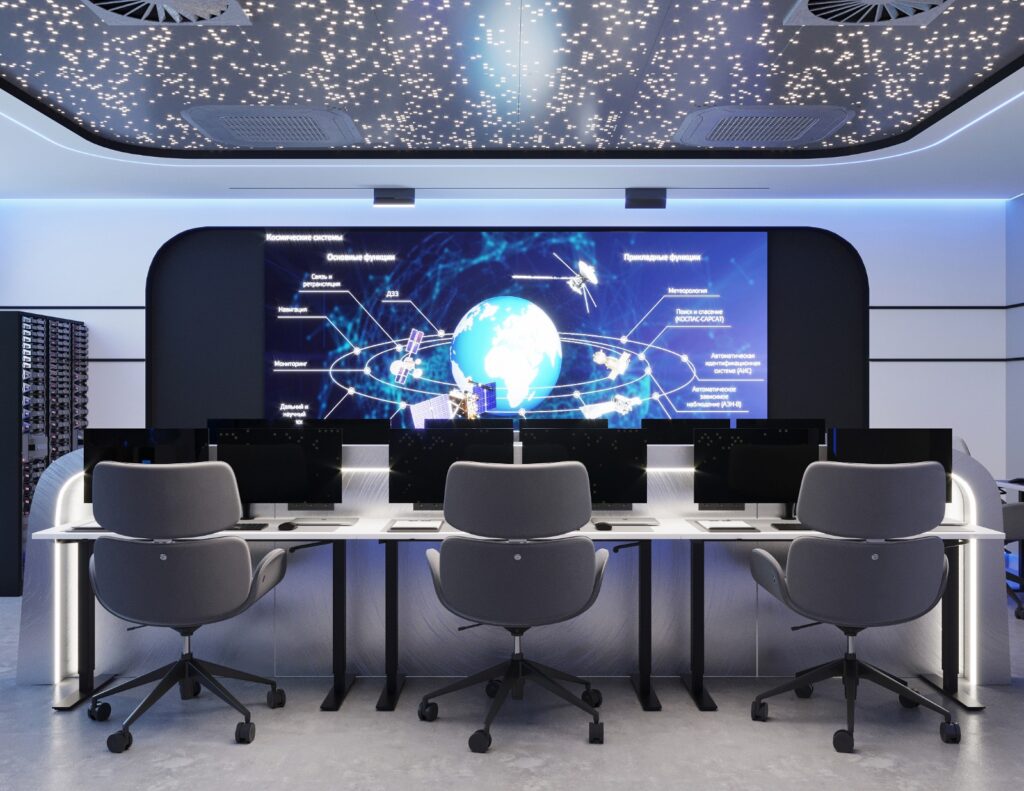

SPUTNIX specializes in CubeSat and microsatellite platforms (the OrbiCraft-Pro line in 1U/3U and the larger SXC6/SXC12 buses), onboard service systems (ADCS sensors and actuators, power systems, radio transceivers, onboard computers), ground segment equipment (Viewnok and Zavitok receiving/control stations, Mission Control Center), test benches (semi-natural ADCS simulators, anechoic chamber, aerotable), and mission software. In 2018 nanosatellites SiriusSat-1/2, built by schoolchildren on the OrbiCraft-Pro platform with SPUTNIX support, were deployed from the ISS.

In 2021 SITRONICS Group (an AFK Sistema subsidiary) acquired a stake in SPUTNIX to develop LEO data services. Since 2021 SPUTNIX has flown its own OrbiCraft-Zorkiy Earth-observation satellite and, since 2023, has launched dozens of spacecraft for the SITRO-AIS automatic identification (maritime tracking) constellation and the Zorkiy-2M remote-sensing constellation, with major batch launches from Vostochny in 2023 and 2024. The company holds ISO 9001 certification and multiple patents covering CubeSat structure, onboard computer design, and bootloader software.

Milestones

  • 2009 Satellite Technology Division formed inside ScanEx R&D Center
  • 2011 Division spins off as SPUTNIX; becomes a Skolkovo Foundation resident

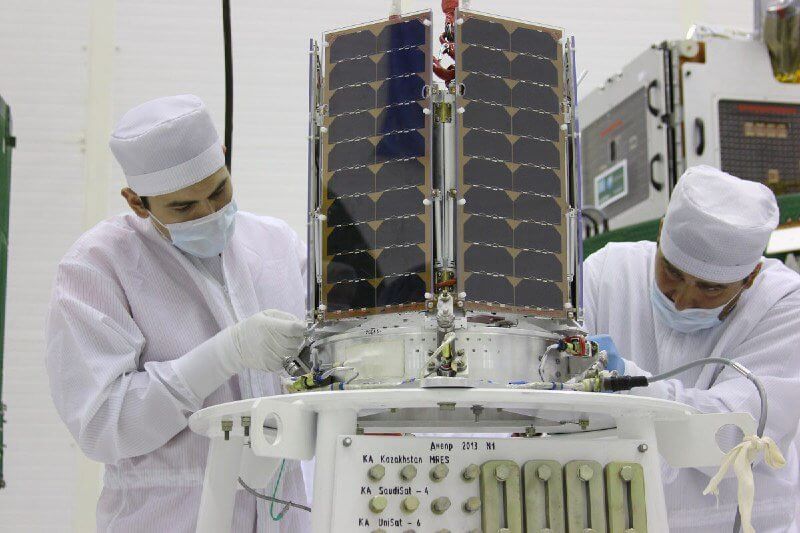

  • 2014 TabletSat-Aurora launched — Russia's first private microsatellite
  • 2021 OrbiCraft-Zorkiy launched; Sitronics JSC acquires controlling stake in SPUTNIX

Products

9

1U CubeSat platform kit with silicon solar panels for educational and laboratory use.

1 6

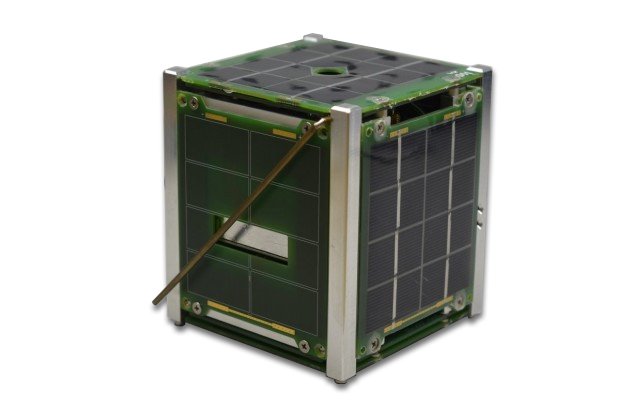

Flight-ready 1U CubeSat platform with GaAs solar panels and electromagnetic ADCS.

1 3

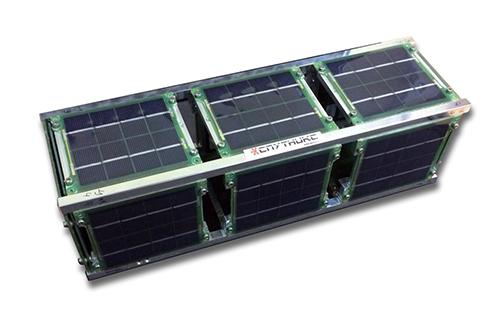

3U CubeSat platform with silicon solar panels for educational and technology-demonstration use.

1 2

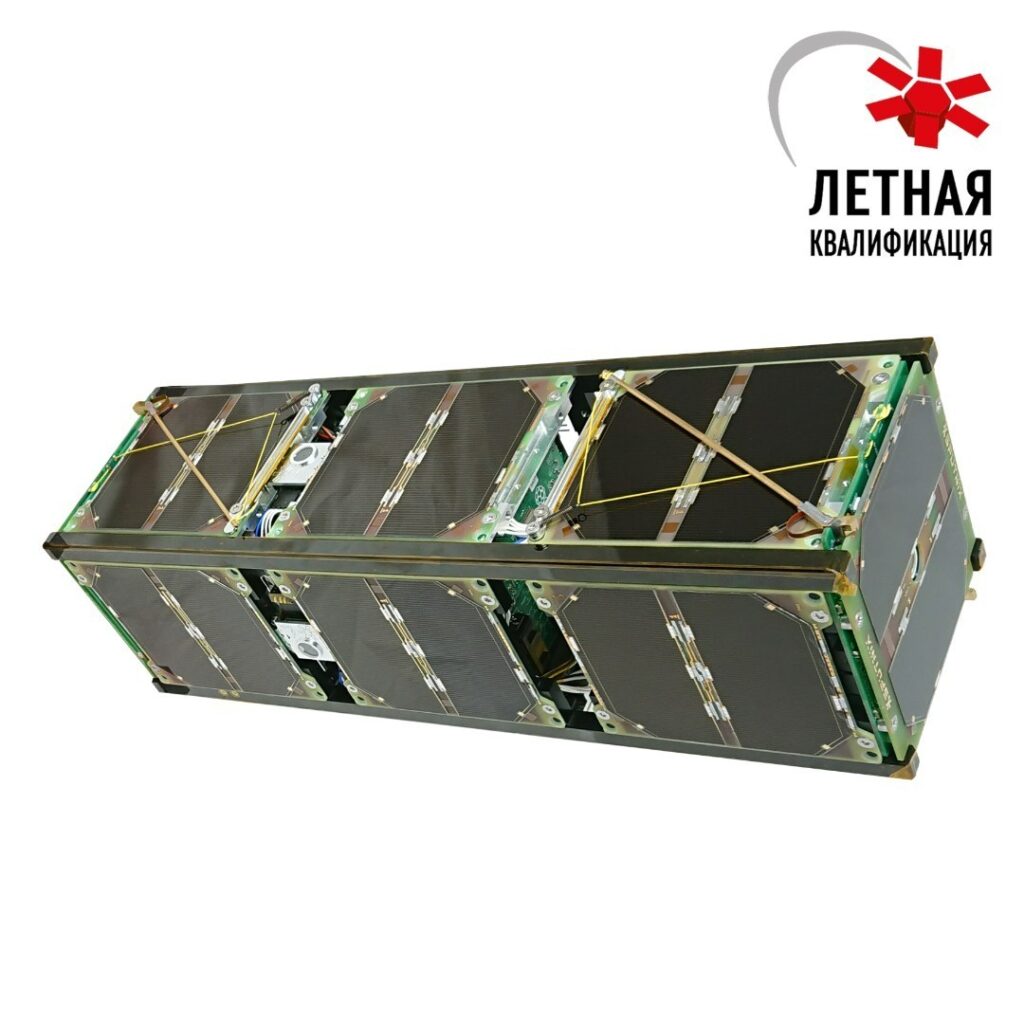

Flight-ready 3U CubeSat platform with GaAs solar panels across 14 panel faces.

1 2

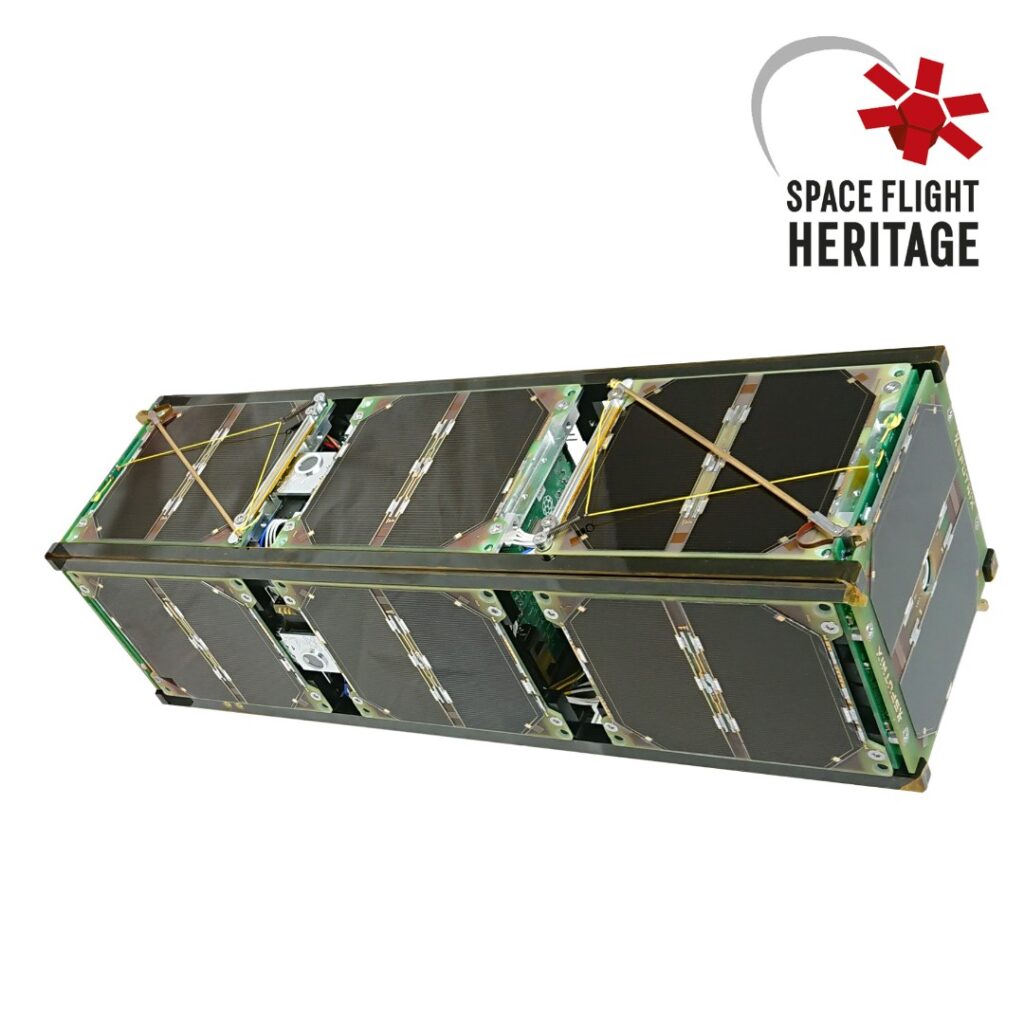

3U CubeSat platform with 3-axis ADCS, reaction wheels, and 5 sun sensors for precision pointing missions.

1 2

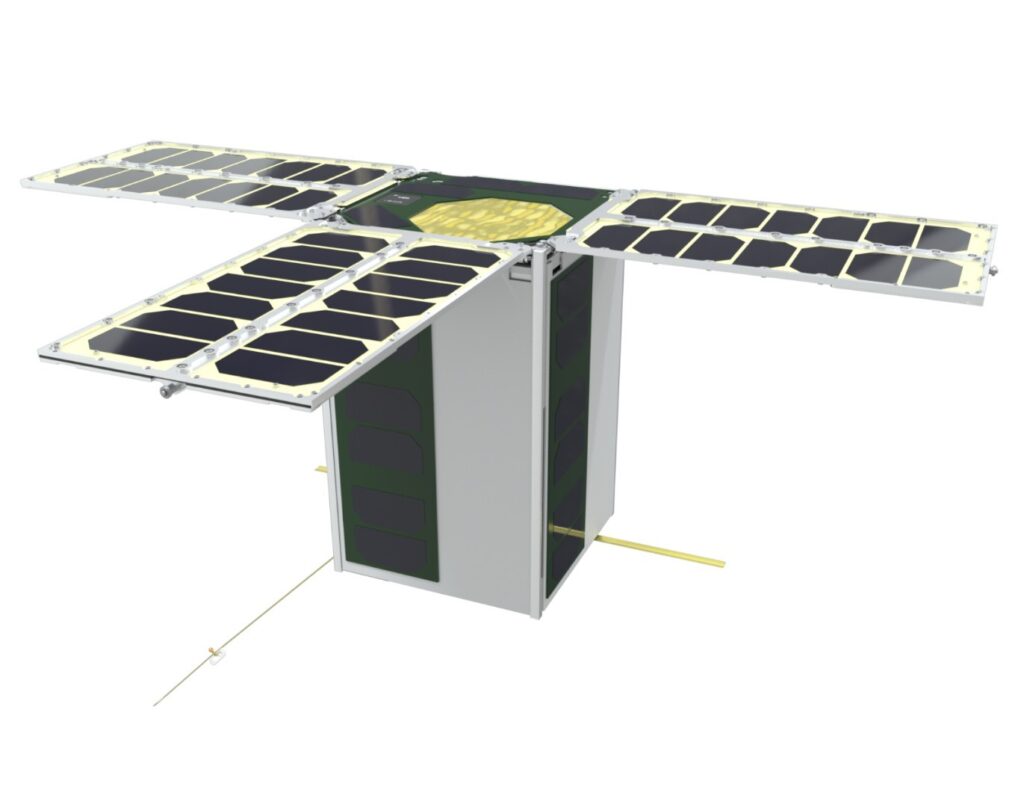

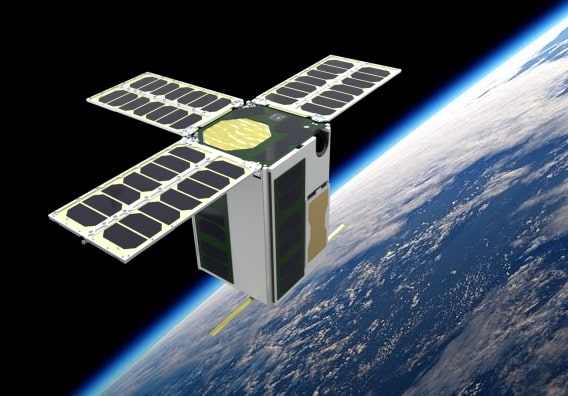

12U satellite bus for LEO missions up to 600 km altitude with 1.5-3 year active life and gas propulsion for orbit correction.

1 5

6U CubeSat bus with 3-axis ADCS configuration and 4U payload volume.

1 3

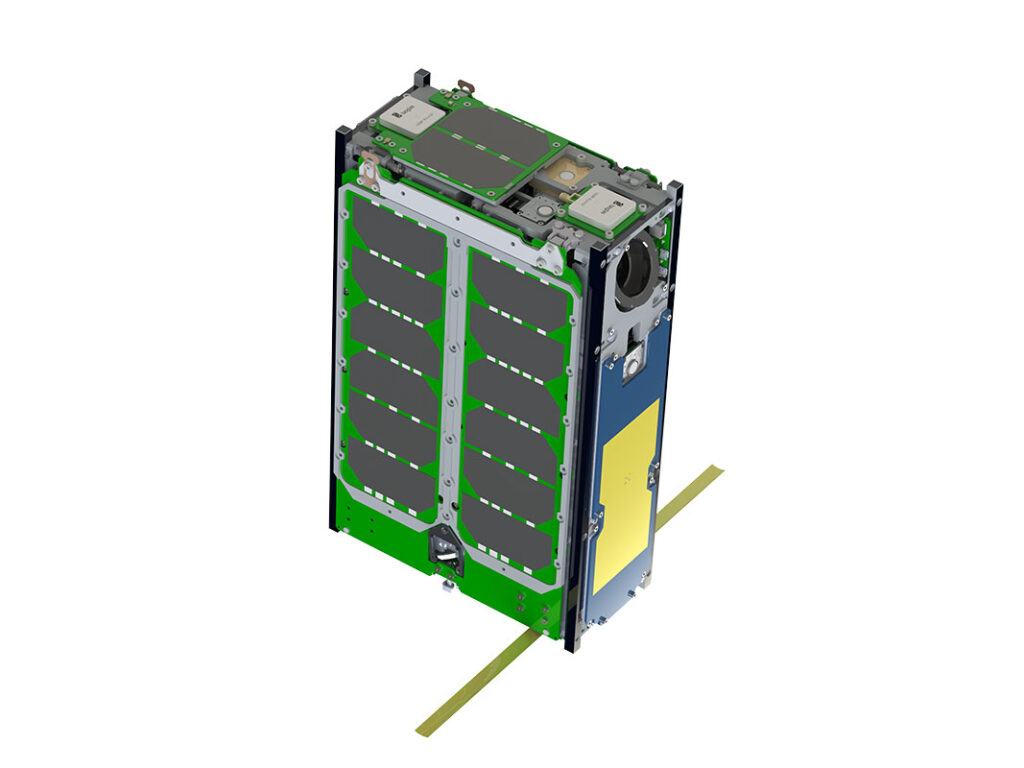

Minimal-configuration 6U CubeSat bus maximizing payload volume up to 5U.

1 2

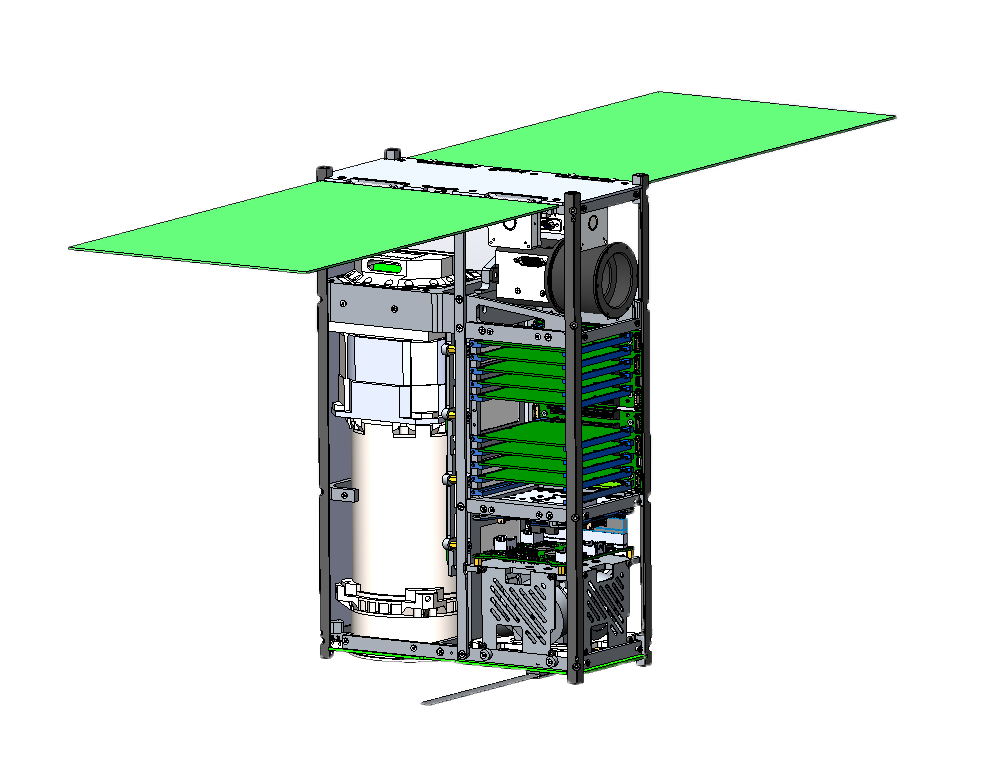

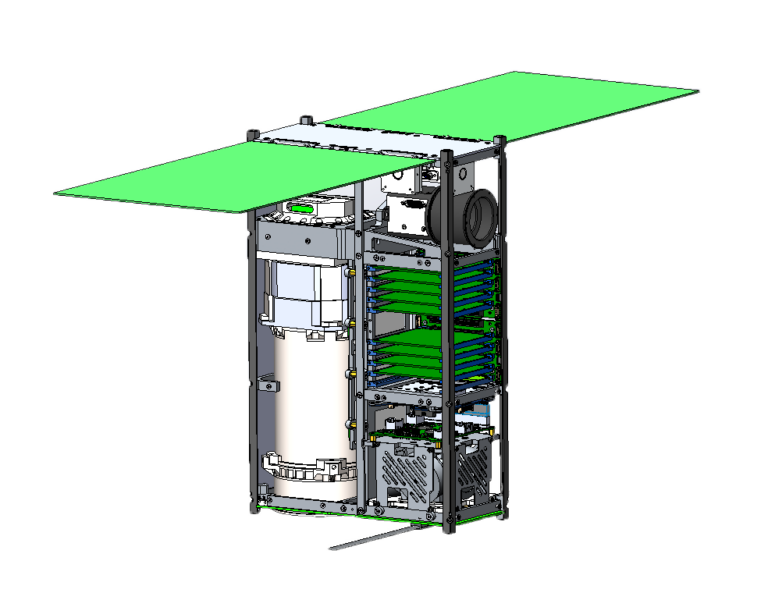

Full 6U CubeSat bus with star tracker, redundant systems, and X-band downlink, flight-proven on the OrbiCraft-Zorkiy Earth-observation mission.

1 6
