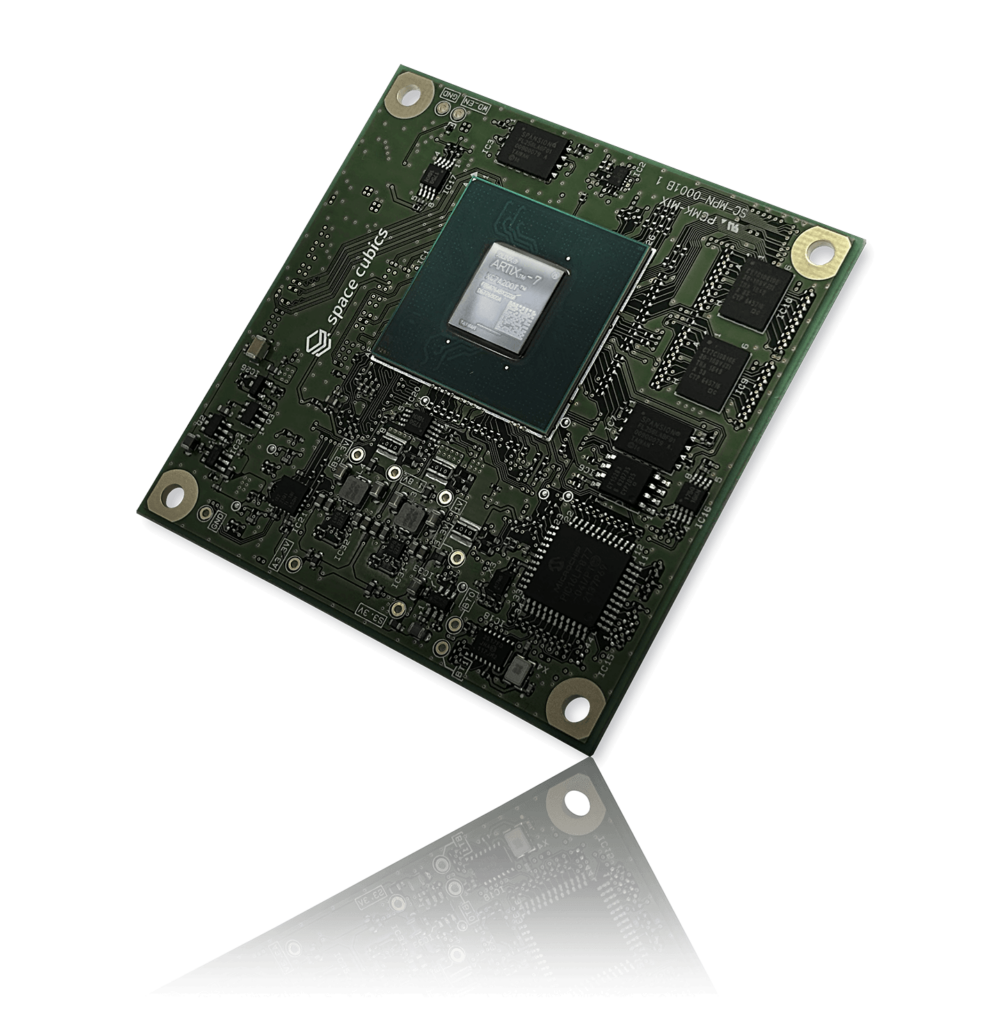

SC-OBC Module A1
CubeSat onboard computer built on a Xilinx Artix-7 FPGA running Zephyr RTOS.
Description
The SC-OBC Module A1 is a CubeSat onboard computer built around a Xilinx Artix-7 FPGA and running the Zephyr real-time operating system. It follows Space Cubics' approach of combining high-performance commercial-grade parts with rigorous testing to deliver reliable, cost-effective avionics for small satellites, and has flight heritage on the company's own SC-Sat1a CubeSat.
Specifications
| FPGA | Xilinx Artix-7 |
|---|---|
| Operating system | Zephyr RTOS |
| Dimensions | 70 x 70 x 9.6 mm |
| Mass | 30 g |
| Power consumption | 2.0 W max |
| Flight heritage | SC-Sat1a CubeSat (launched on Space One KAIROS Flight 3, February 2026) |
