Flat-body smallsat providing space-based ADS-B surveillance and VHF voice/data for global air traffic management — 8 in orbit, constellation of ~200 planned.

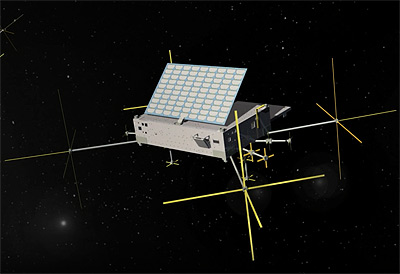

Skykraft Block 2 ATM Satellite
Flat-body smallsat providing space-based ADS-B surveillance and VHF voice/data for global air traffic management — 8 in orbit, constellation of ~200 planned.
Description
The Skykraft Block 2 satellite is an Australian-designed and manufactured smallsat forming the backbone of Skykraft's planned ~200-satellite constellation for global air traffic management. Each satellite carries an ADS-B receiver for aircraft position surveillance and a VHF payload for two-way voice and data communications between air traffic controllers and pilots — covering remote oceanic and polar routes beyond radar reach.
The first eight Block 2 satellites were launched on SpaceX Falcon 9 Transporter-6 and Transporter-8 rideshare missions in January and June 2023. The system supports the ICAO 5 NM separation standard and incorporates multi-level redundancy and cybersecurity. Full constellation deployment of ~200 satellites is targeted to provide continuous global coverage, enabling trajectory-based flight operations and reducing CO₂ emissions via optimised routing.
Specifications
| Body type | Flat-box smallsat |
|---|---|
| Payloads | ADS-B receiver, VHF voice and data transponder |
| Orbit | LEO |
| Constellation target | ~200 satellites |
| In-orbit units (2023) | 8 |
| First launch | January 2023, SpaceX Falcon 9 Transporter-6 |
| ICAO standard supported | 5 NM separation |
| Redundancy | Multi-level |
| Cybersecurity | Integrated |
